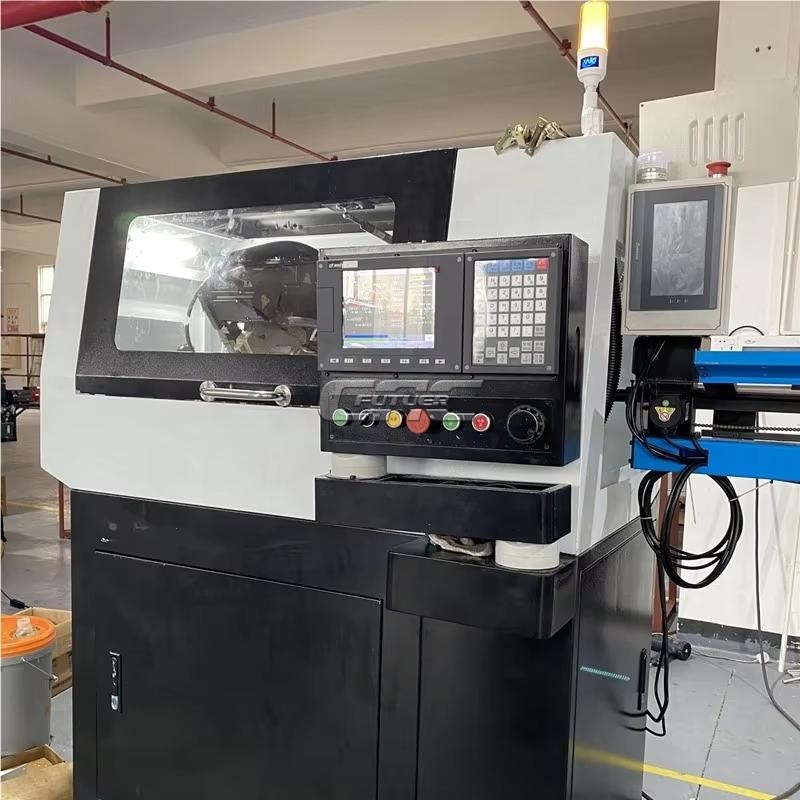

1107 Automatic Mini Horizontal CNC Lathe Machine
MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) |
| 1 |
Numerical control lathe model |
1107 | |
| 2 | Maximummachining diameter | mm | φ7 |
| 3 | Maximum working length | mm | 90 |
| 4 | Maximum spindle speed | r/min | 7500rpm |
| 5 | Spindle motor power | KW | 1.7 |

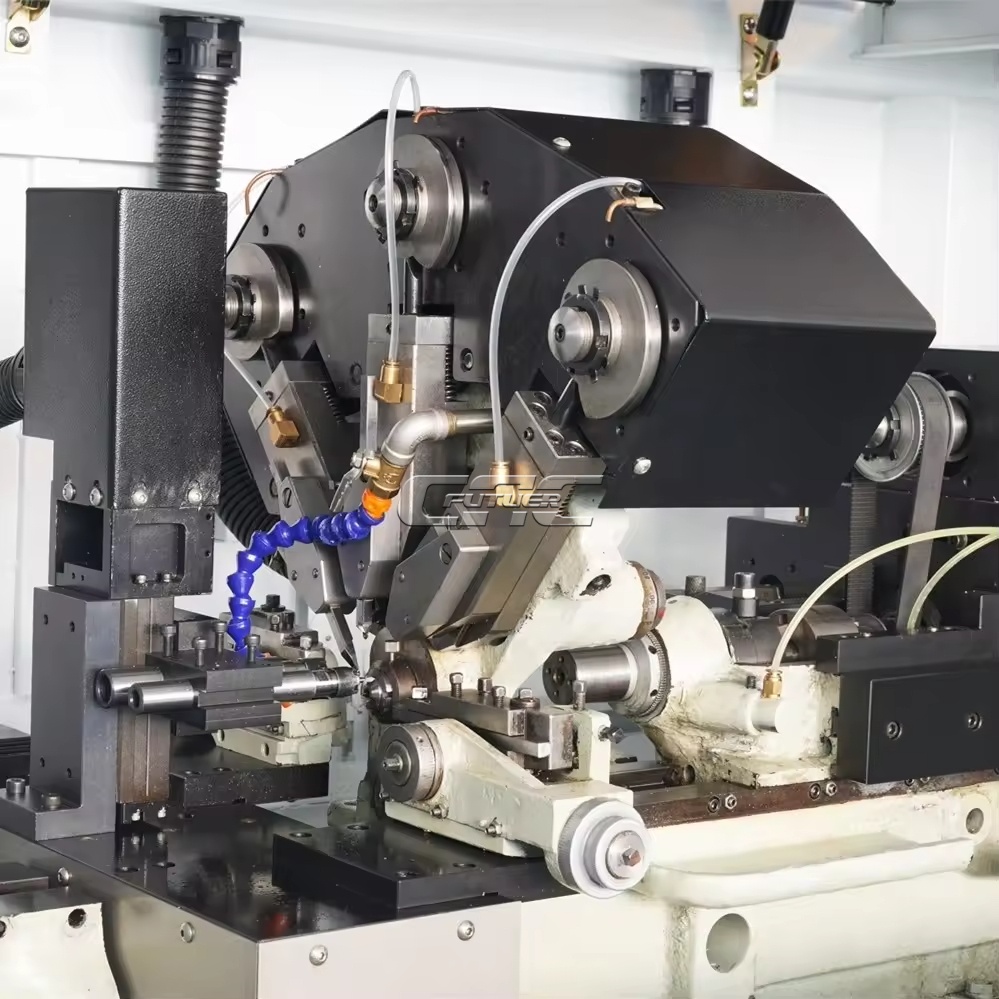

| 6 | Tool distribution | 7*7*150 or 8*8*150mm turning toold *5ER bits 2 | |

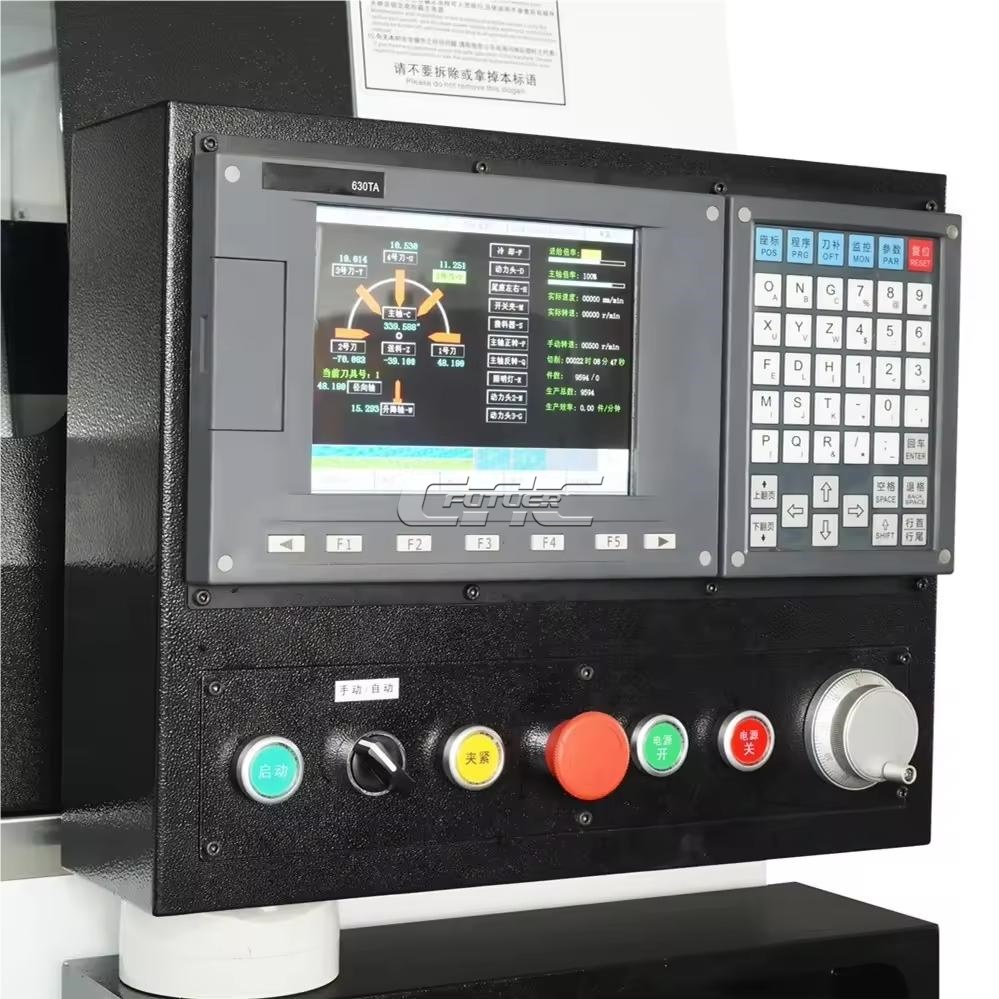

| 7 | Controller | 630TA bus controller | |
| 8 | Fast moving speed | m/min | 15 |
| 9 | Repeated positioning accuracy | mm | 0.007 |
| 10 |
Overall dimension (Length, width and height) |
mm | 1300*700*1600 |
| 11 | Mechanical weight | KG | 650 |
| 12 | Total electrical power |
KVA | 5 |
| 13 | Optional | Optional sode milling power head |
