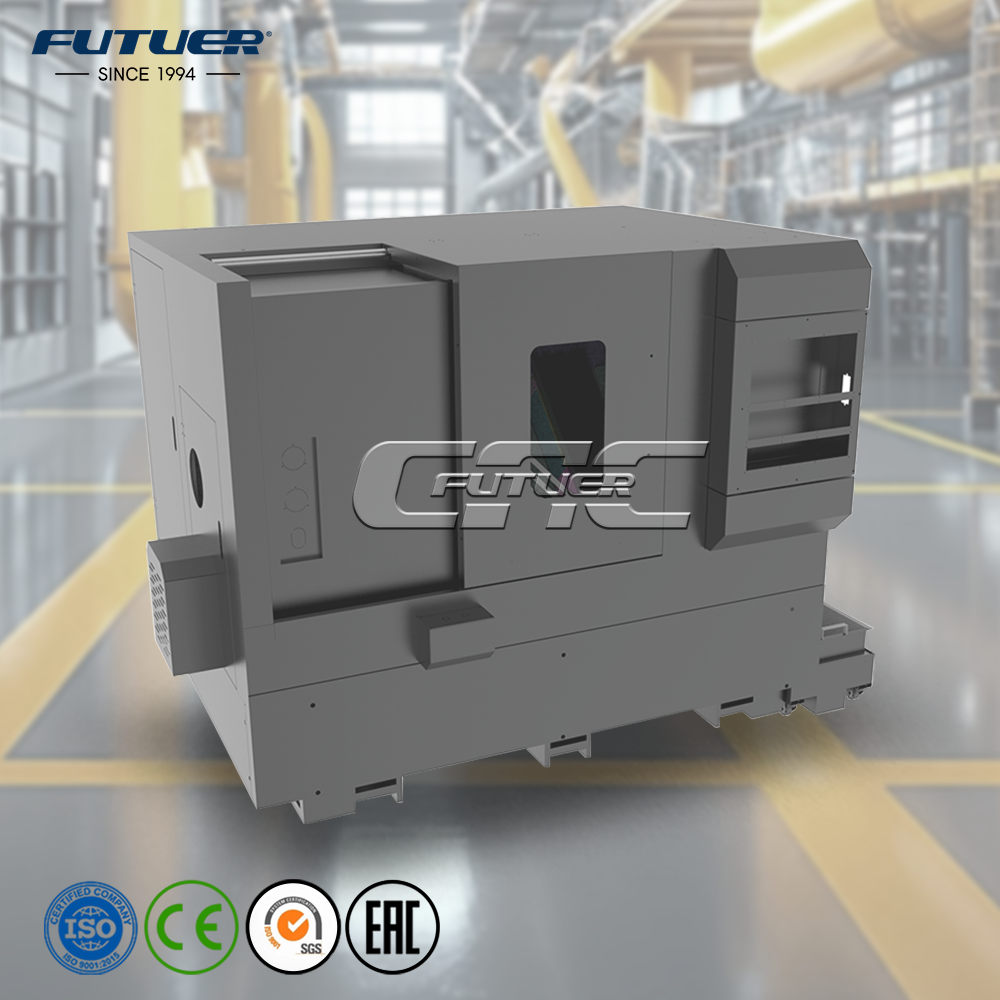

MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) | Remarks |
| 1 | Workbench top size | mm | 650*200*38 | |
| 2 | Z-axis travel | mm | 350 | Effective travel after deducting the chuck |
| 3 | X-axis travel | mm | 900 | |
| 4 | Maximum rotation of the optical mechanism | mm | 450 | |
| 5 | The distance between the center of the spindle and the worktable surface | mm | 63 | |
| 6 | The distance from the center of the main shaft to the ground | mm | 990 | |
| 7 | The distance from the end face of the spindle to the side edge of the worktable | mm | 140-490 | Take the LQ63-220-8T servo turret of the Lianli brand as an example |
| 8 | Workbench T-slot | mm | 50 | |
| 9 | Spindle model(spindle diameter) | mm | A2-5(170) | |
| 10 | Speed of mainshaft | RPM | 0-5000 | It depends on the brand of the main shaft |
| 11 | Specification of X.Z Ball Screw | 32*10/32*10 | ||
| 12 | X-type guide rail specification | 840-30 ball | 4 Sliding block-Standard | |
| 13 | Z-type guide rail specification | 760-30 ball | 4 Sliding block-Standard lengthen | |
| 14 | Main.X.Z Motor Connection Method | Synchronous/Direct coupling/Direct coupling | ||
| 15 | X.Z Motor Flange/Seam Ring | mm | 130/110 | |
| 16 | Optical machine dimensions(length,width,height) | mm | 2014*997*1360 | |
| 17 | Total weight | T | Approximately 2.3T | |
| 18 | The method of installing the knife | Scraping knife | ||
| 19 | Bed frame form and slope | Inclined bed 45 degrees | ||
| 20 | Tailstock | Without | ||
| 21 | Tailstock advancement method | Without | ||
| 22 | Tailwind journey | Without | ||
| 23 | Tail tip model | Without |
