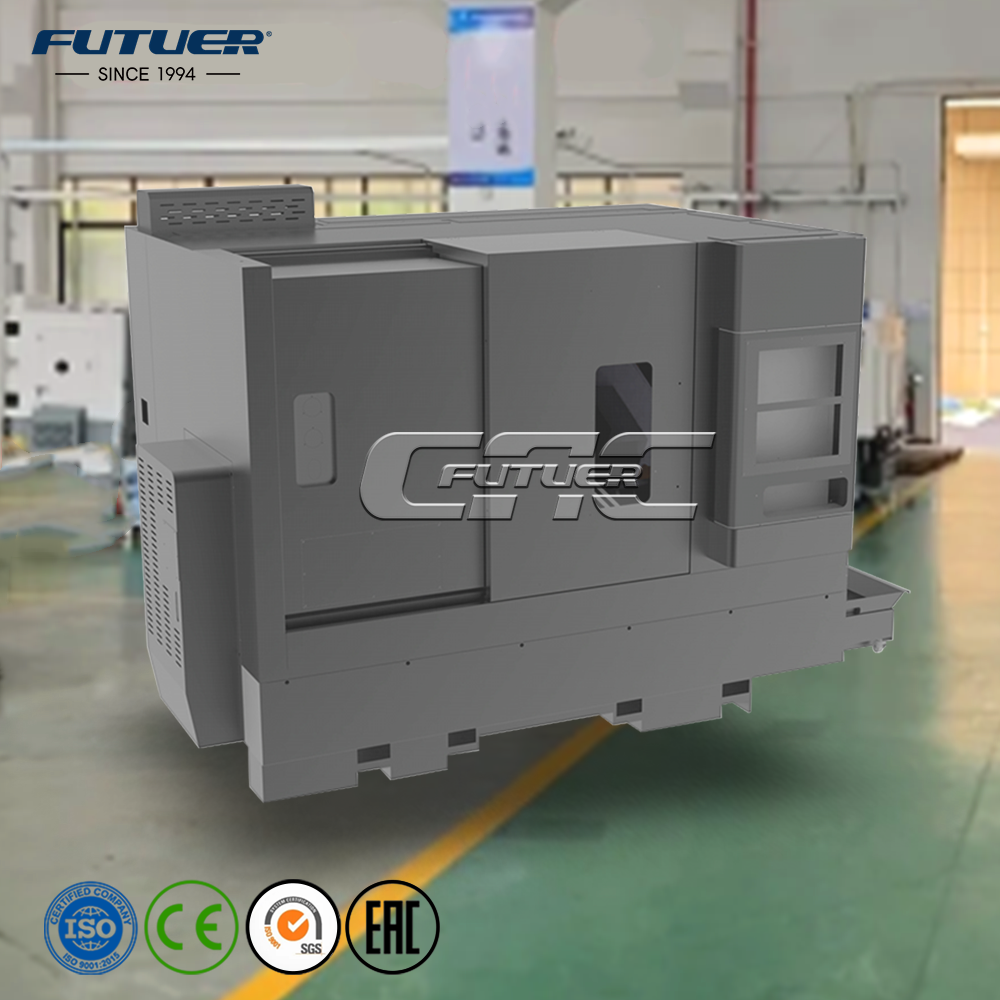

46Y Cutter Tower Tail Jacking Machine-side Row
MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) | Remarks |
| 1 | The size of the tray surface | mm | 450*340 | |
| 2 | Z-axis travel | mm | 525 | |
| 3 | X-axis travel | mm | 246 | |
| 4 | Maximum rotation of the optical mechanism | mm | 550 | |
| 5 | The distance between the center of the spindle and the worktable surface | mm | 130 | |
| 6 | The distance from the center of the main shaft to the ground | mm | 1000 | |
| 7 | Effective processing length | mm | 400 | Take the BMT45-15T tower as an example |
| 8 | Maximum turning diameter | mm | 360 | |
| 9 | Spindle model(spindle diameter) | mm | A2-5(170) | Optional:A2-6(200) |
| 10 | Speed of mainshaft | RPM | 0-5000/0-4000 | It depends on the brand of the main shaft |
| 11 | Specification of X.Z Ball Screw | 32*10/40*10 | ||
| 12 | X-type guide rail specification | 600-35 rollers | 4 Sliding block-Standard | |
| 13 | Z-type guide rail specification | 1000-35 rollers | 4 Sliding block-Standard lengthen | |
| 14 | Main.X.Z Motor Connection Method | Synchronous/Direct coupling/Direct coupling | ||
| 15 | X.Z Motor Flange/Seam Ring | mm | 130/110 | |
| 16 | Optical machine dimensions(length,width,height) | mm | 2345*1100*1195 | |
| 17 | Total weight | T | Approximately 3.2T | With internal and external protective covers |
| 18 | The method of installing the knife | Take the BMT45-Y-15T tower as an example | ||
| 19 | Bed frame form and slope | Inclined bed 30 degrees | ||
| 20 | Tailstock | Without | ||
| 21 | Tailstock advancement method | Without | ||
| 22 | Tailwind joumey | Without | ||
| 23 | Tail tip model | Without |
