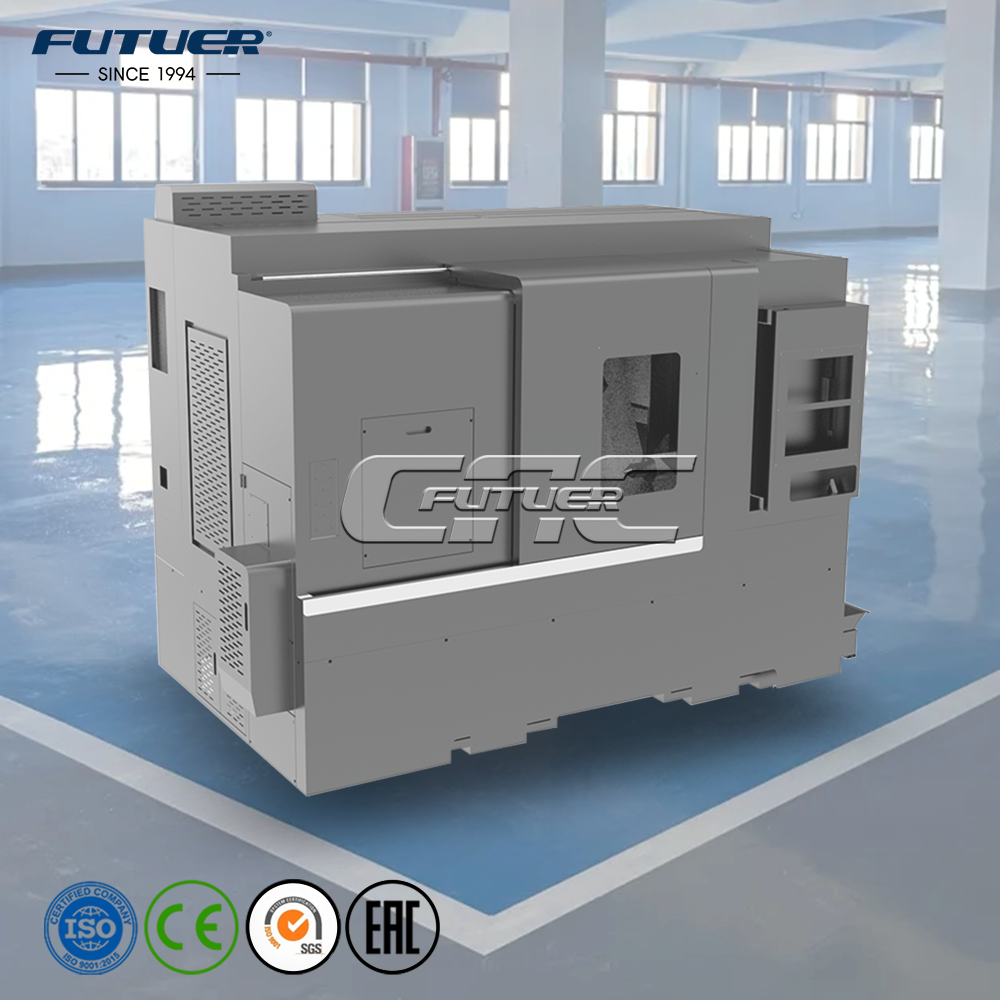

MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) | Remarks |
| 1 | The size of the tray surface | mm | 480*330 | |
| 2 | Z-axis travel | mm | 650 | |
| 3 | X-1-axis travel | mm | 315 | |
| 4 | X-2-axis travel | mm | 220 | |
| 5 | Y-axis travel | mm | 110 | |
| 6 | Maximum rotation of the optical mechanism | mm | 520 | |
| 7 | The distance between the center of the spindle and the surface of the base plate | mm | 80 | |
| 8 | The distance from the center of the main shaft to the ground | mm | 1050 | |
| 9 | Maximum machining length | mm | 630 | Take the BMT45-80-15T tower as an example |
| 10 | Maximum turning diameter | mm | 330 | |
| 11 | Spindle model (spindle diameter) | mm | A2-6（200） | |
| 12 | Speed of mainshaft | RPM | 0-4000 | It depends on the brand of the main shaft |
| 13 | X.1/X.2 Ball Screw Specifications | 32 * 10 double nuts | ||
| 14 | Z-axis screw rod specification | 40 * 10 double nuts | ||
| 15 | X.1/X.2 Guide Rail Specifications | 35 rollers | Single 3-slider-Standard | |
| 16 | Z-axis guide rail specification | 45 rollers | Single 3-slider-Extended | |
| 17 | Main, X.1, X.2/Z motor connection method | Synchronous belt/Direct coupling/Direct coupling | ||
| 18 | X.1/X.2/Z-axis motor flange/stop edge | mm | 130/110 | |
| 19 | Optical machine dimensions (length, width, height) | mm | 2512.5*1345*1670 | |
| 20 | Total weight | T | approximately 5T | |
| 21 | Dota model | Height of center 80/BMT55-12/BMT45-15 | ||
| 22 | Bed frame form and slope | High and low track beds 15° Bed body/integral 45° | ||
| 23 | Tailstock | Linear guide tailstock | ||
| 24 | Tailstock guide rail specification | 35 rollers | Single 3-slider-Standard | |
| 25 | Tailstock advancement method | Hydraulic feed | Choosable | |
| 26 | Tailwind journey | mm | 600 | |
| 27 | The maximum distance from the end face of the chuck to the top pin | mm | 720 | |
| 28 | Servo tail screw rod specification | 32*10 Double nut | ||
| 29 | Hydraulic tail-up cylinder specifications | 600-ton hydraulic cylinder | ||
| 30 | Tail tip model | MT5 |
