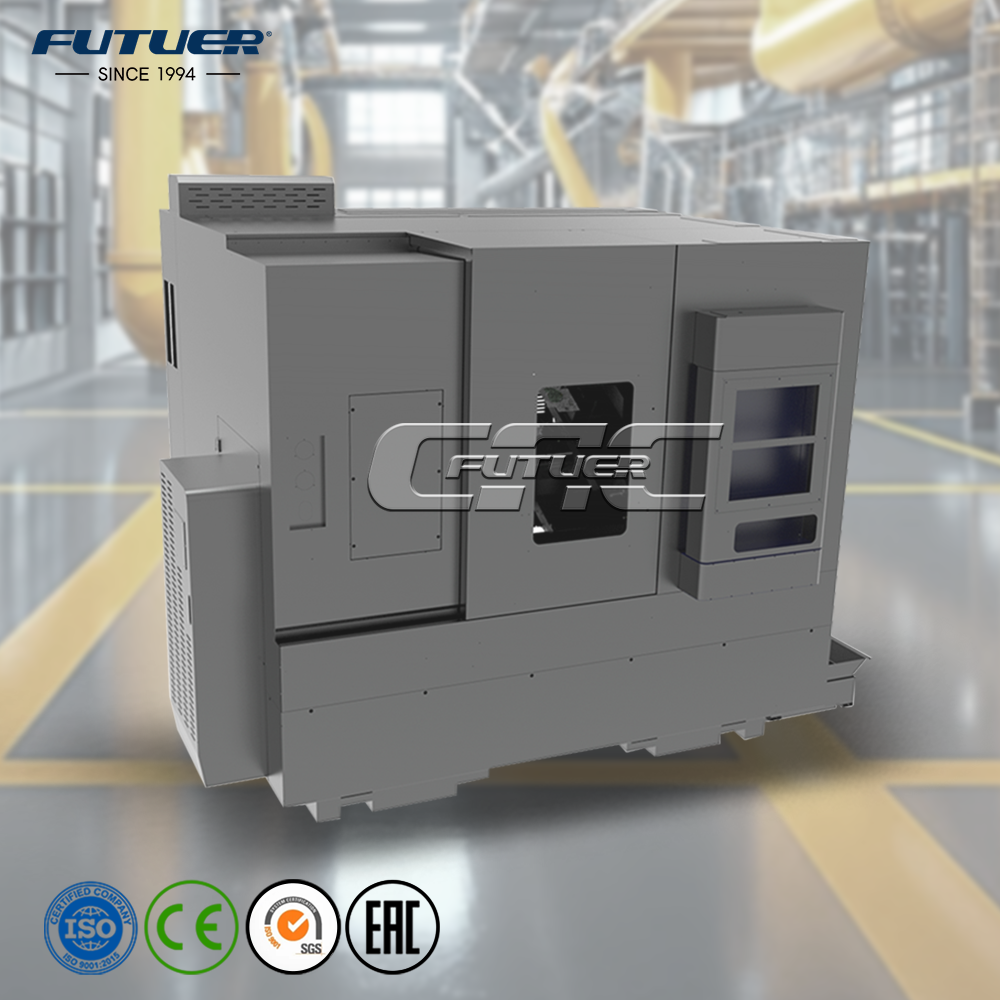

MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) | Remarks |
| 1 | The size of the tray surface | mm | 450*340 | |
| 2 | Z-axis travel | mm | 613 | |
| 3 | X-axis travel | mm | 210 | |
| 4 | Maximum rotation of the optical mechanism | mm | 650 | |
| 5 | The distance between the center of the spondle and the worktable surface | mm | 170 | |
| 6 | The distance from the center of the main shaft to the ground | mm | 1085 | |
| 7 | Maximum machining length | mm | 550 | 100-12-380 cutter tower |
| 8 | Minimum docking length | mm | 10 | |
| 9 | Maximum turning diameter | mm | 360 | |
| 10 | Spindle model (spindle diameter) | RPM | A2-6(200) | It depends on the brand of the main shaft |
| 11 | Specification of X.Z Ball Screw | 32*10/40*10 | ||
| 12 | X-type guide rail specification | 35 rollers | 4 Sliding block-Standard | |
| 13 | Z-type guide rail specification | 35 rollers | 4 Sliding block-Extended slider | |
| 14 | Main X.Z Motor Connection Method | Synchronous belt/Direct coupling/Direct coupling | ||
| 15 | X.Z Motor Flange/Seam Ring | mm | 130/110 | |
| 16 | Optical machine dimensions(length,width,height) | mm | 2415*1257*1270 | |
| 17 | Total weight | T | approximately 4.5T | |
| 18 | The method of installing the knife | BMT45-Y-15T | ||
| 19 | Bed frame form and slope | mm | Inclined bed 30 degrees | |
| 20 | Sub-spindle | T | A2-5 Spindle Motor (170) | Optional servo tail tip |
| 21 | Tailstock advancement method | Servo propulsion | Standard hydraulic tail lift | |
| 22 | Tailwind journey | 600 |
