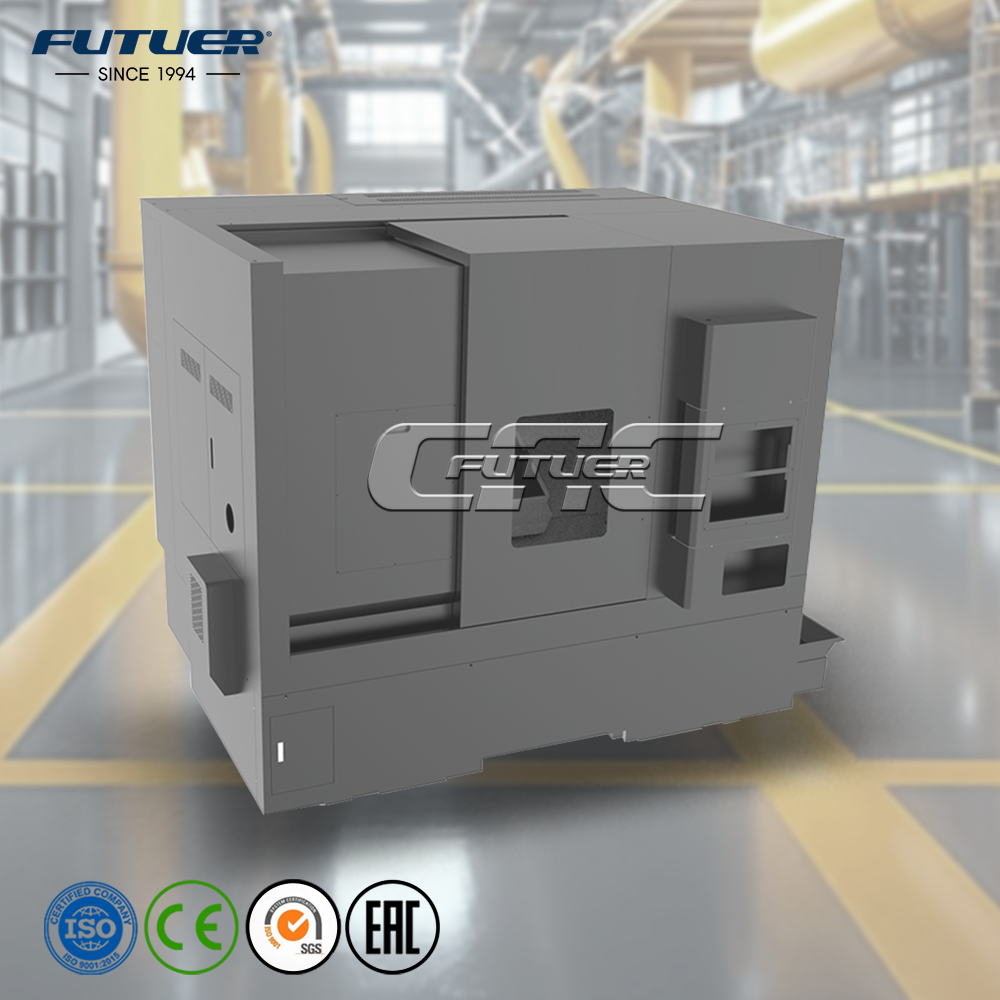

56A Cutter Tower Tail Jacking Machine-side Back
MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) | Remarks |
| 1 | The size of the tray surface | mm | 470*375 | |
| 2 | Z-axis travel | mm | 700 | |
| 3 | X-axis travel | mm | 300 | |
| 4 | Maximum rotation of the optical mechanism | mm | 650 | |
| 5 | The distance between the center of the spondle and the worktable surface | mm | 170 | |
| 6 | The distance from the center of the main shaft to the ground | mm | 1200 | |
| 7 | The effective processing length of the tool tower | mm | 520 | BMT45-Y-15T |
| 8 | Maximum turing diameter | mm | 520 | |
| 9 | Spindle model(spindle diameter) | mm | A2-6(200) | |
| 10 | Speed of mainshaft | RPM | 0-4000 | It depends on the brand of the main shaft |
| 11 | Specification of X.Z Ball Screw | 40*10/40*10 | ||
| 12 | X-type guide rail specification | 742.5-45 rollers | 4 Sliding block-Standard | |
| 13 | Z-type guide rail specification | 1267.5-45 rollers | 4 Sliding block-Standard | |
| 14 | Main X.Z Motor Connection Method | Synchronous belt/Direct coupling/Direct coupling | ||
| 15 | X.Z Motor Flange/Seam Ring | mm | 130/110 | |
| 16 | Optical machine dimensions(length,width,height) | mm | 2360*1345*1390 | |
| 17 | Total weight | T | approximately 4.6T | |
| 18 | The method of installing the knife | BMT45-Y-15T | ||
| 19 | Bed frame form and slope | mm | Inclined bed 30 degrees | |
| 20 | Tailstock | T | Linear guide tailstock | |
| 21 | Tailstock advancement method | Hydraulic tail support/Servo tail support | Standard hydraulic tail lift | |
| 22 | Tailwind journey | 450 | ||
| 23 | Tail tip model | MT5 |
