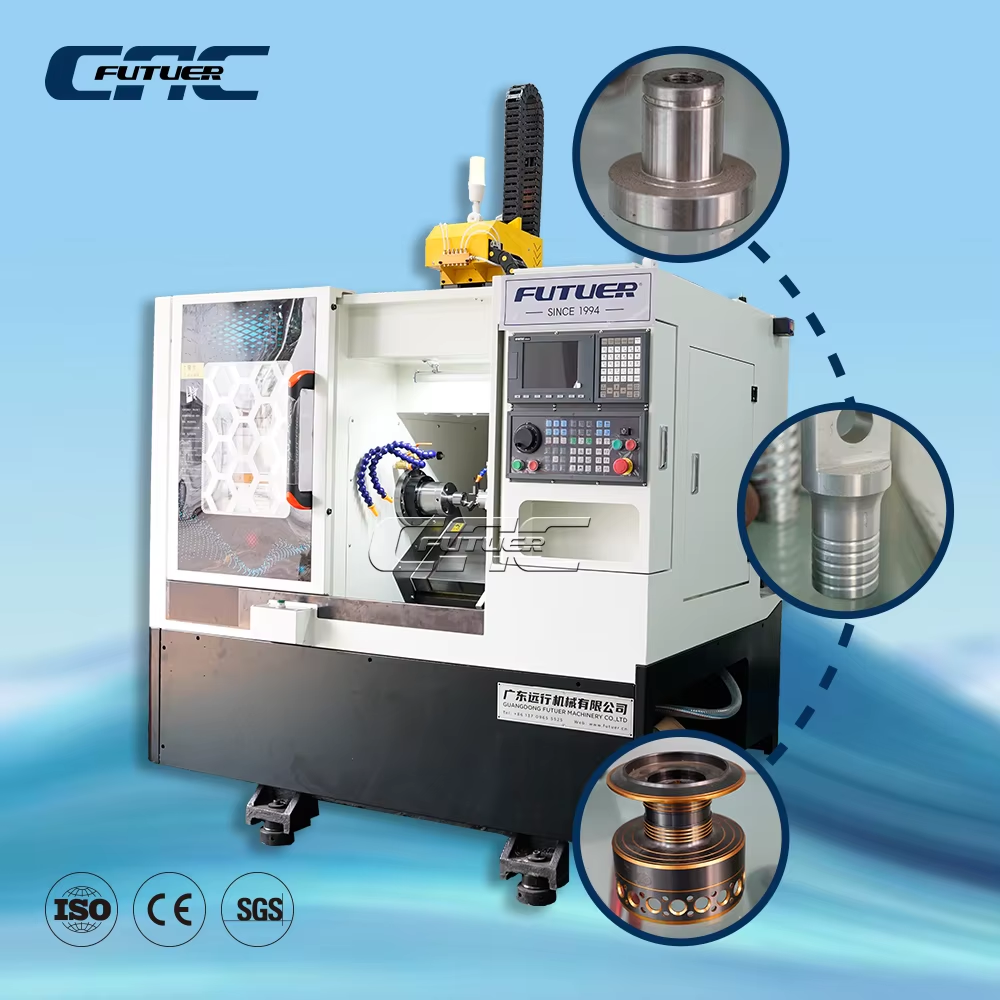

Compact 5-Axis Turning Machine for Complex Rotational Parts

5-Axis Turning: The Pinnacle of Complex Part Machining

   The primary application of 5-axis turning is in the production of highly complex, non-rotationally symmetric parts that are impossible to machine efficiently with conventional lathes. By simultaneously controlling multiple axes of movement, this technology allows the cutting tool to approach the workpiece from virtually any angle in a single setup. This is critical for machining components with intricate contours, compound angles, and off-center features—such as turbine impellers, orthopedic implants with complex bone-facing surfaces, and advanced propulsion components. This capability eliminates the need for multiple fixtures and complex setups, drastically reducing production time and the potential for cumulative errors.

   Beyond these specialized components, 5-axis turning is revolutionizing the manufacturing of high-value parts in the aerospace, defense, and automotive racing industries. The technology enables the complete machining of near-net-shape castings and forgings, creating lightweight, structurally optimized parts like aircraft landing gear components, suspension knuckles, and missile nose cones. By allowing the tool to maintain the optimal cutting position and avoid collisions with complex part geometries, 5-axis turning ensures superior surface finishes, extended tool life, and the ability to machine delicate, thin-walled features with unprecedented accuracy.

   Looking forward, the application of 5-axis turning is a cornerstone of the digital factory and agile manufacturing. Its seamless integration with CAD/CAM software allows for the direct translation of complex digital prototypes into physical parts, accelerating innovation cycles. When combined with automation, a 5-axis turning center becomes a self-sufficient production cell capable of lights-out operation, making it a strategic investment for manufacturers aiming to lead in markets driven by customization, rapid iteration, and the production of the next generation of geometrically sophisticated components.
