For Repairing Car Brake Discs and Brake Drums, Cost‑Effective Auto Maintenance Equipment
制动鼓(盘)车床C9335、C9335A、C9340

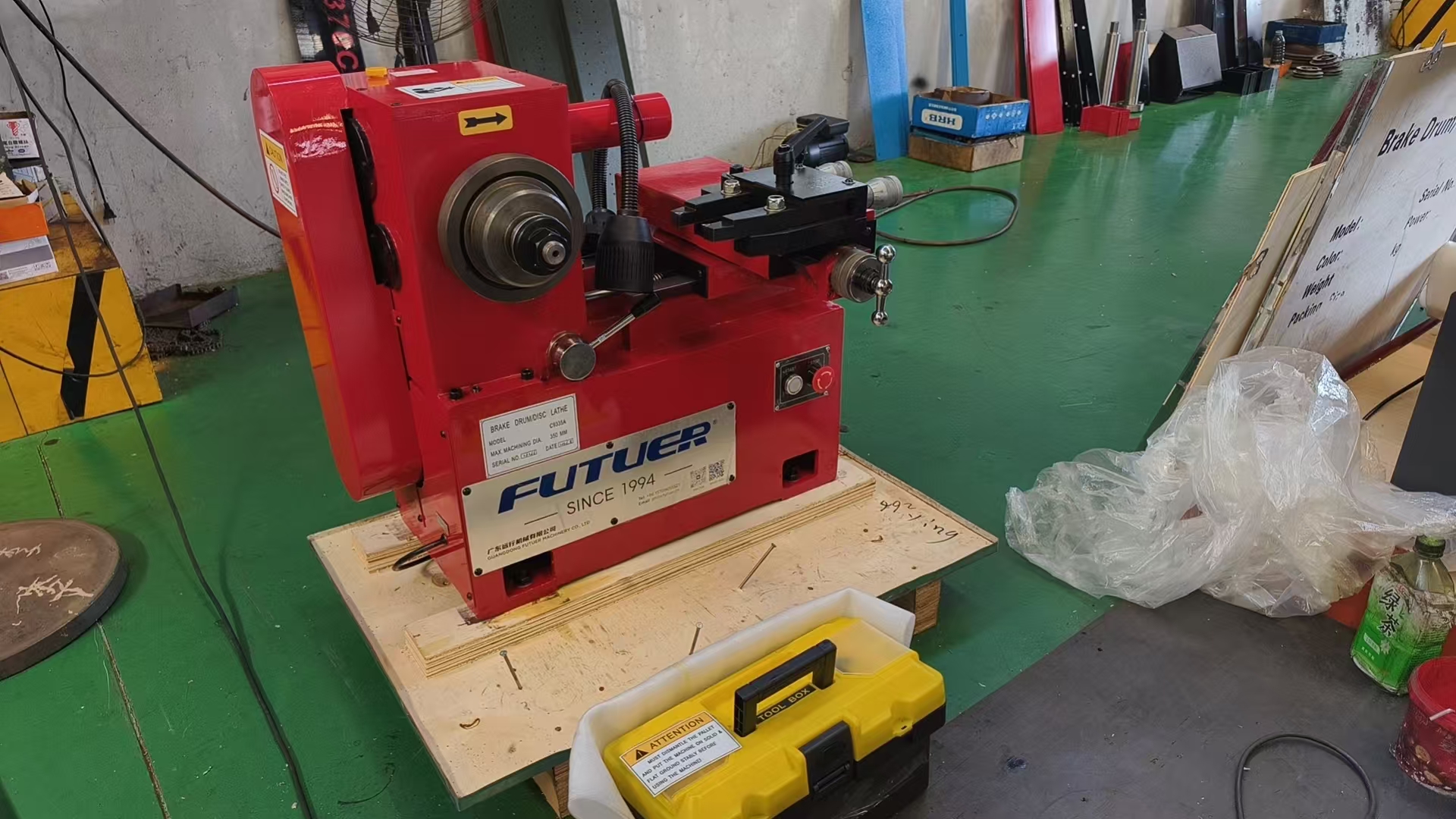

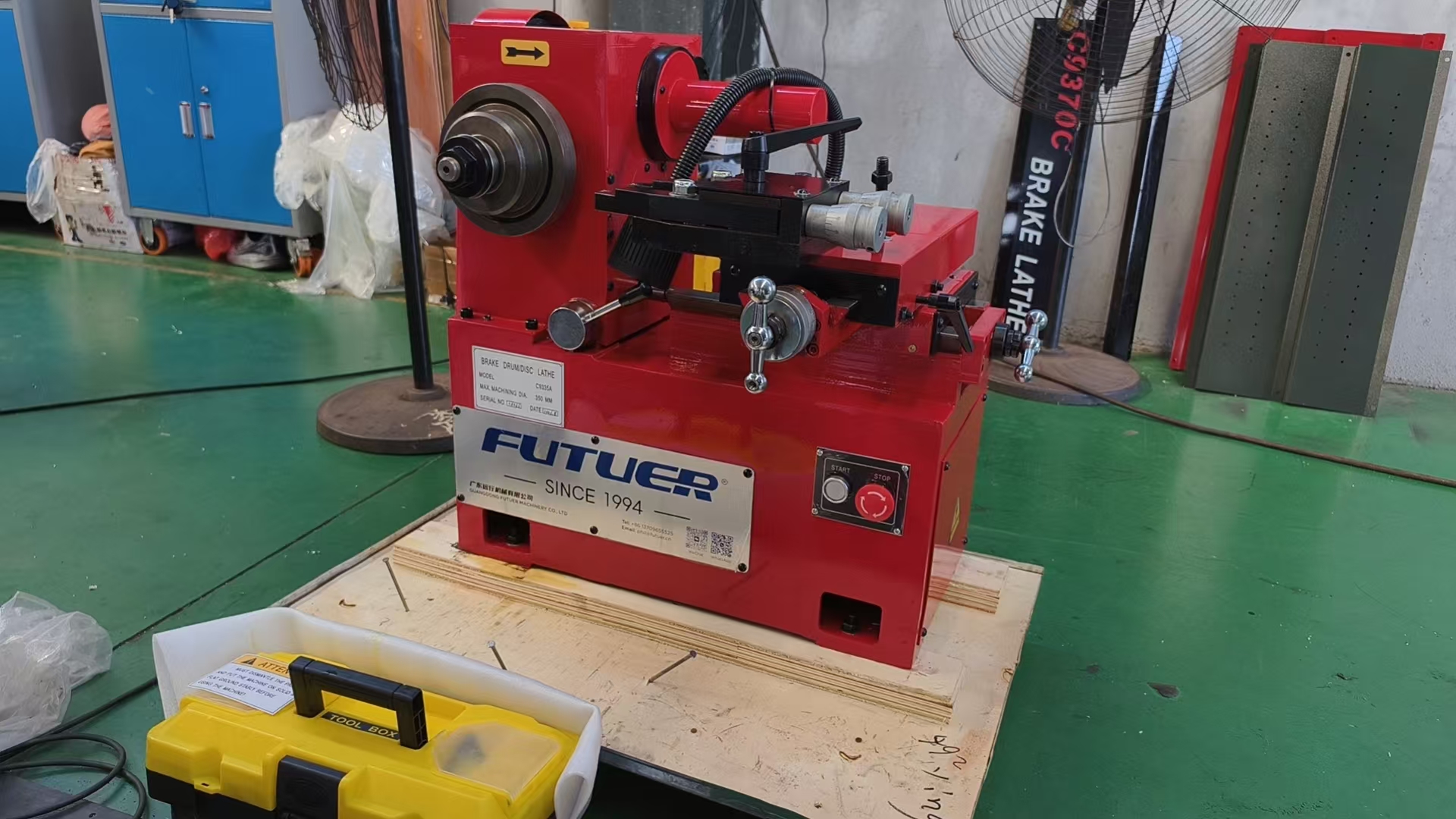

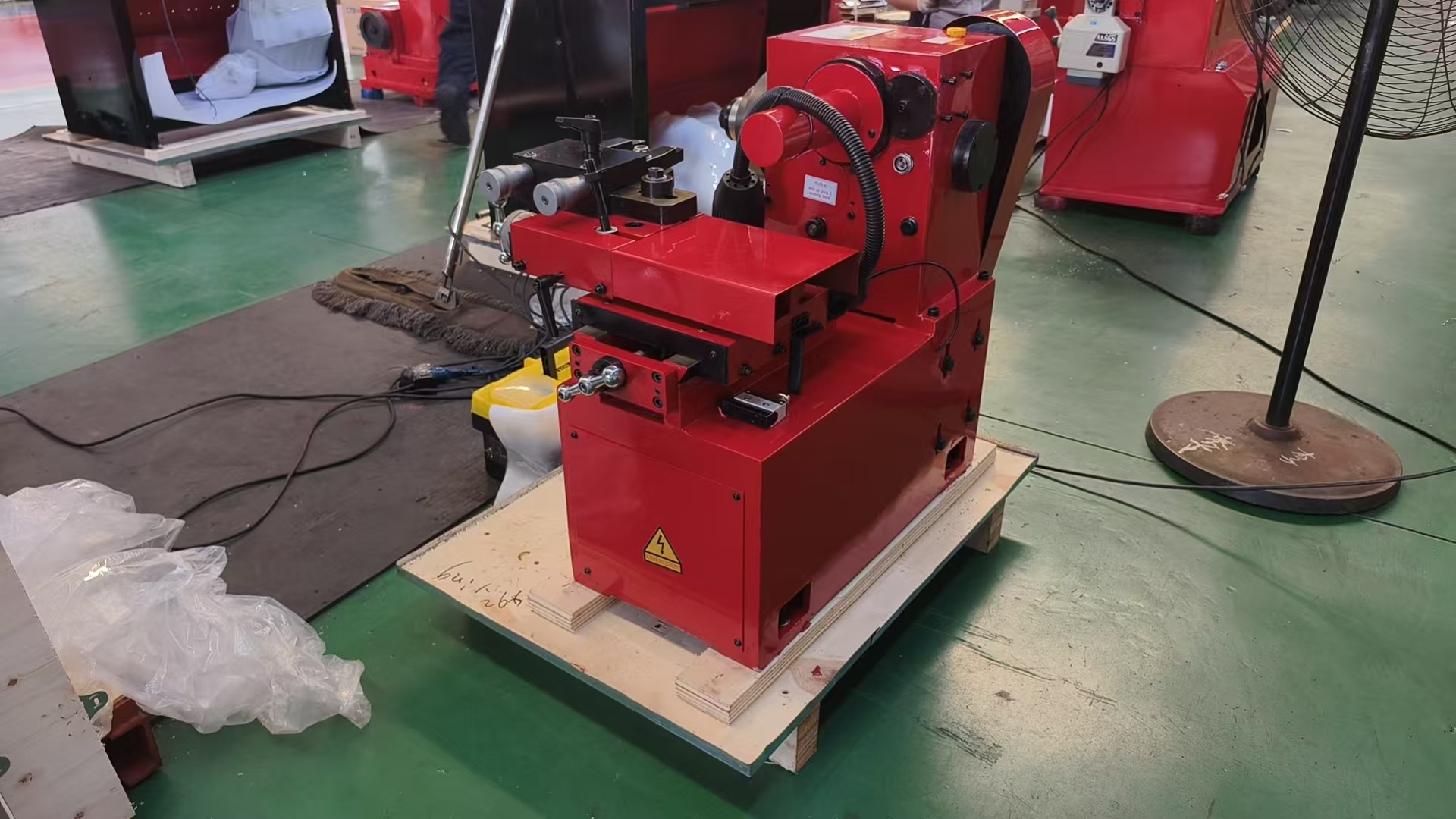

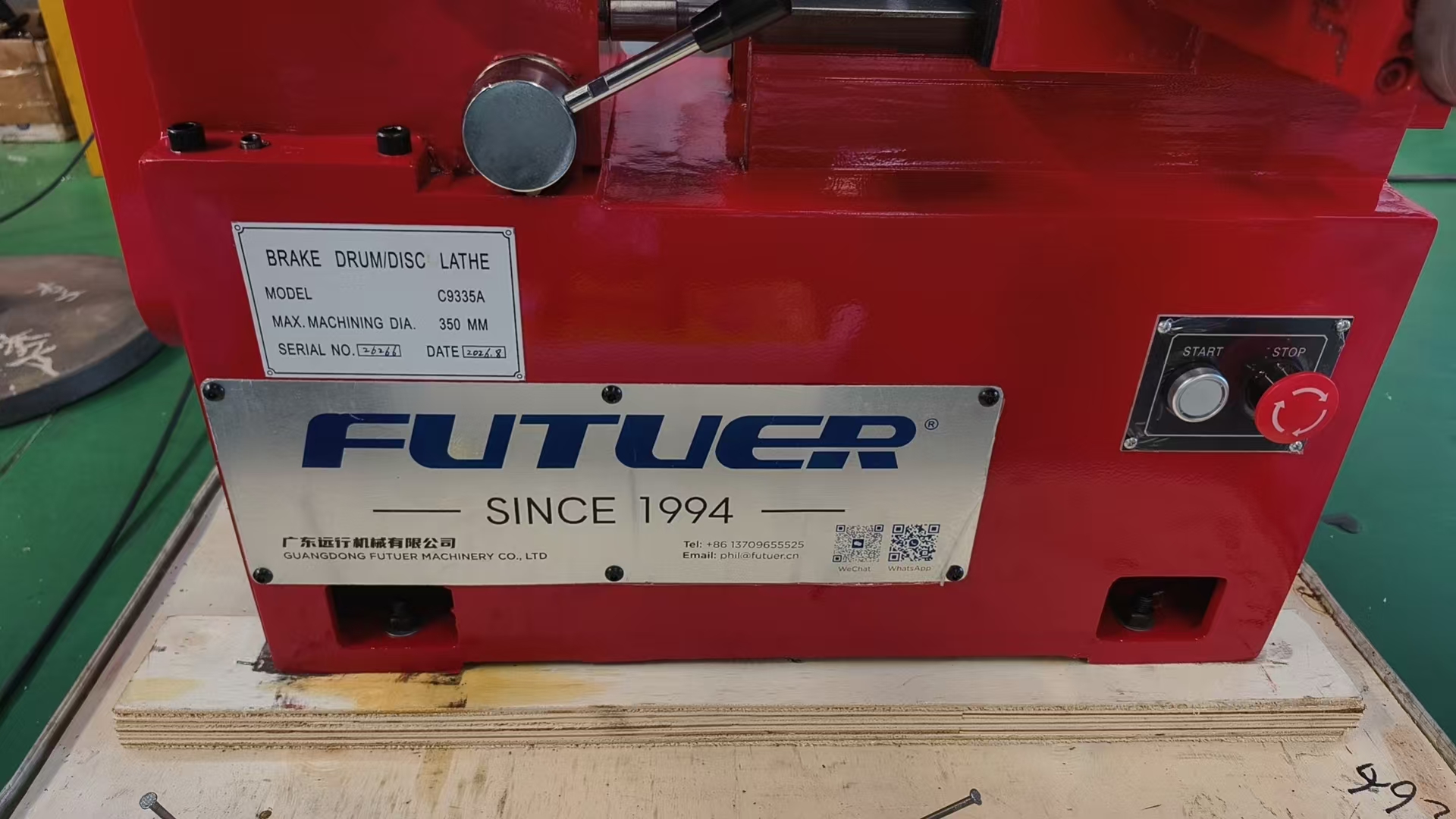

BRAKE DRUM/ DISC LATHE

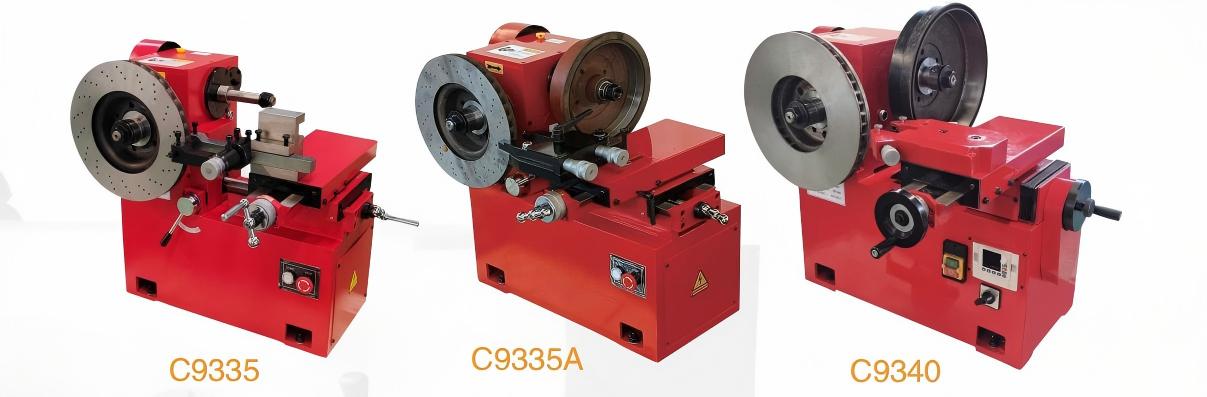

C9335/C9335A、C9340分别适用于小型车辆、中小型车辆制动鼓/盘的修复。
C9335A/C9340是升级款，优化的双刀结构更方便调节吃刀量，整机刚性更强。
C9340主轴转速无级可调、双轴直径40mm、配有线轨滑块和风琴护罩。
C9335/C9335A is applicable for refacing small brake drum/disc, C9340 is for medium/small ones.
C9335A & C9340 are upgraded version with better rigidity, optimized tool post enables convenient cultting depth adjustment.
C9340 is with stepless spindle speed, belt transmission, double spindle 40mm, linear slideway & organ cover.
主要技术参数 MAIN SPECIFICATIONS
| Model | C9335 | C9335A | C9340 | |
| Range of ProcessingDiameter mm | Brake Drum | 180-350 | 180-350 | 180-380 |
| Brake Disc | 180-350 | 180-350 | 180-400 | |
| Rotating Speed of Workpiece r/mir | 75/130 | 75/130 | 0-150 | |
| Max Travel of Tool mm | 100 | 100 | 100 | |
| Feeding capacity mm/r | 0.15 | 0.16 | 0.08 | |
| Motor Power Kw(220v / 380v) | 1.1/0.75 | 1.1/0.75 | 0.75 | |
| Overall Dimensions mm( LxWxH) | 830x610x665 | 830x610x665 | 840x630x650 | |
| Packing Dimensions mm(LxWxH) | 830x 620 x 840 | 830x 620x 840 | 870x 640 x 850 | |
| N.W/G.W kg | 200/215 | 205/220 | 170/190 | |
以上品有结构和数据变化,恕不另行通知 The Specifications are Subjected to Modifcation and Improvements Without Notice
