CN Oil Film Type 3 Series

New shock-proof and electronic synchronization features, suitable for high-speed precision part processing; detachable material tubes, easy for maintenance and operation; changing the bar material does not require adjusting the clamping knife; PLC and servo system, touch screen control, data-based operation, extremely easy to master; electrical and mechanical faults can be diagnosed by oneself, and maintenance is simple and fast.

Product Description





MACHINE DETAILS

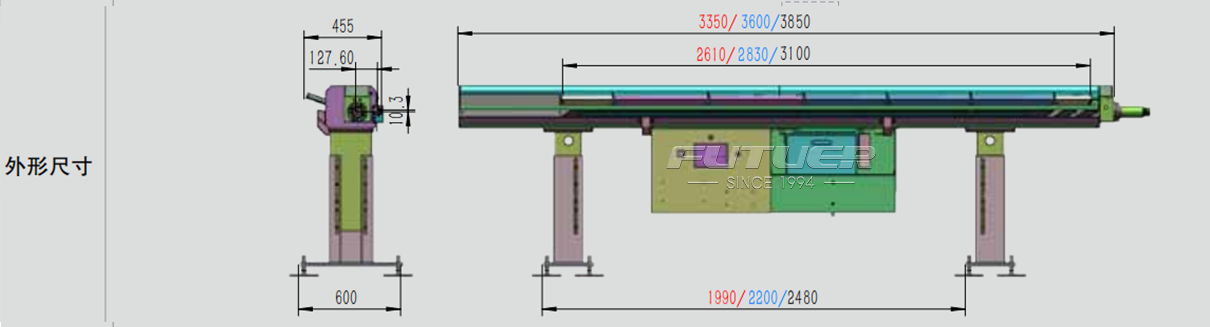

Equipment details and standard size related parameters



Project CN-312 CN-316 CN-320 CN-326 CN-328
Working ability Bar machining maximum diameter Φ12mm Φ16mm Φ20mm Φ25mm Φ28mm
Bar machining minimum diameter Φ3mm  Φ3mm Φ3mm Φ3mm Φ3mm
Length of the bar machining 2500mm-3000mm
The silos activities range Φ13mm  Φ17mm Φ21mm Φ26mm Φ29mm
Other Material capacity Φ12×31pcs  Φ16×23pcs Φ20×19pcs Φ25×10pcs Φ28×13pcs
Required eiectric power 0.96kw
Mass of machine Approximately 46kg
