New shock-proof and electronic synchronization features, suitable for high-speed precision part processing; detachable material tubes, easy for maintenance and operation; changing the bar material does not require adjusting the clamping knife; PLC and servo system, touch screen control, data-based operation, extremely easy to master; electrical and mechanical faults can be diagnosed by oneself, and maintenance is simple and fast.
MACHINE DETAILS

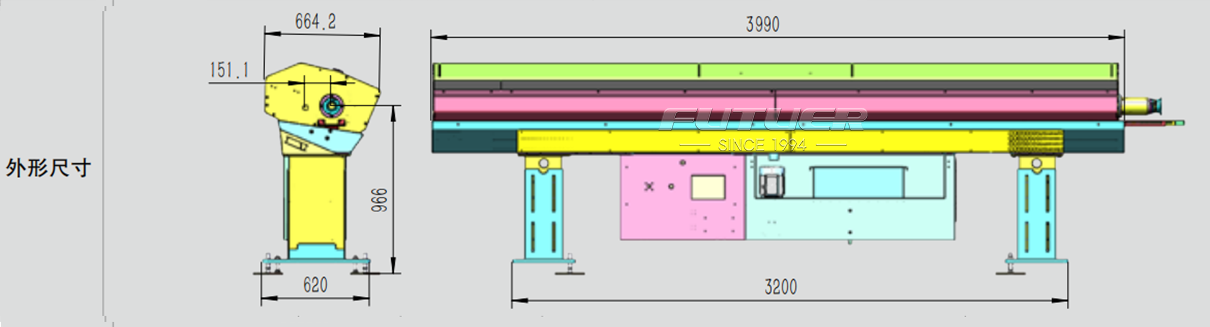

Equipment details and standard size related parameters
| Project | CN-528 | CN-532 | CN-536 | CN-538 | CN-542 | CN-551 | |
| Working ability | Bar machining maximum diameter | Φ28mm | Φ32mm | Φ36mm | Φ38mm | Φ42mm | Φ50mm |
| Bar machining minimum diameter | Φ6mm | Φ8mm | Φ8mm | Φ10mm | Φ12mm | Φ15mm | |
| Most suitable bar diameter | Φ10-Φ26 | Φ12-Φ30 | Φ15-Φ34 | Φ16-Φ36 | Φ16-Φ40 | Φ18-Φ46 | |
| Length of the bar machining | 2500mm-3000mm | ||||||
| The silos activities range | Φ29mm | Φ33mm | Φ37mm | Φ39mm | Φ43mm | Φ52mm | |
|
Other |
Material capacity | Φ10×36pcsΦ40×9pcs | |||||
| Required eiectric power | 0.96kw | ||||||
| Mass of machine |
Approximately 890kg |
||||||
