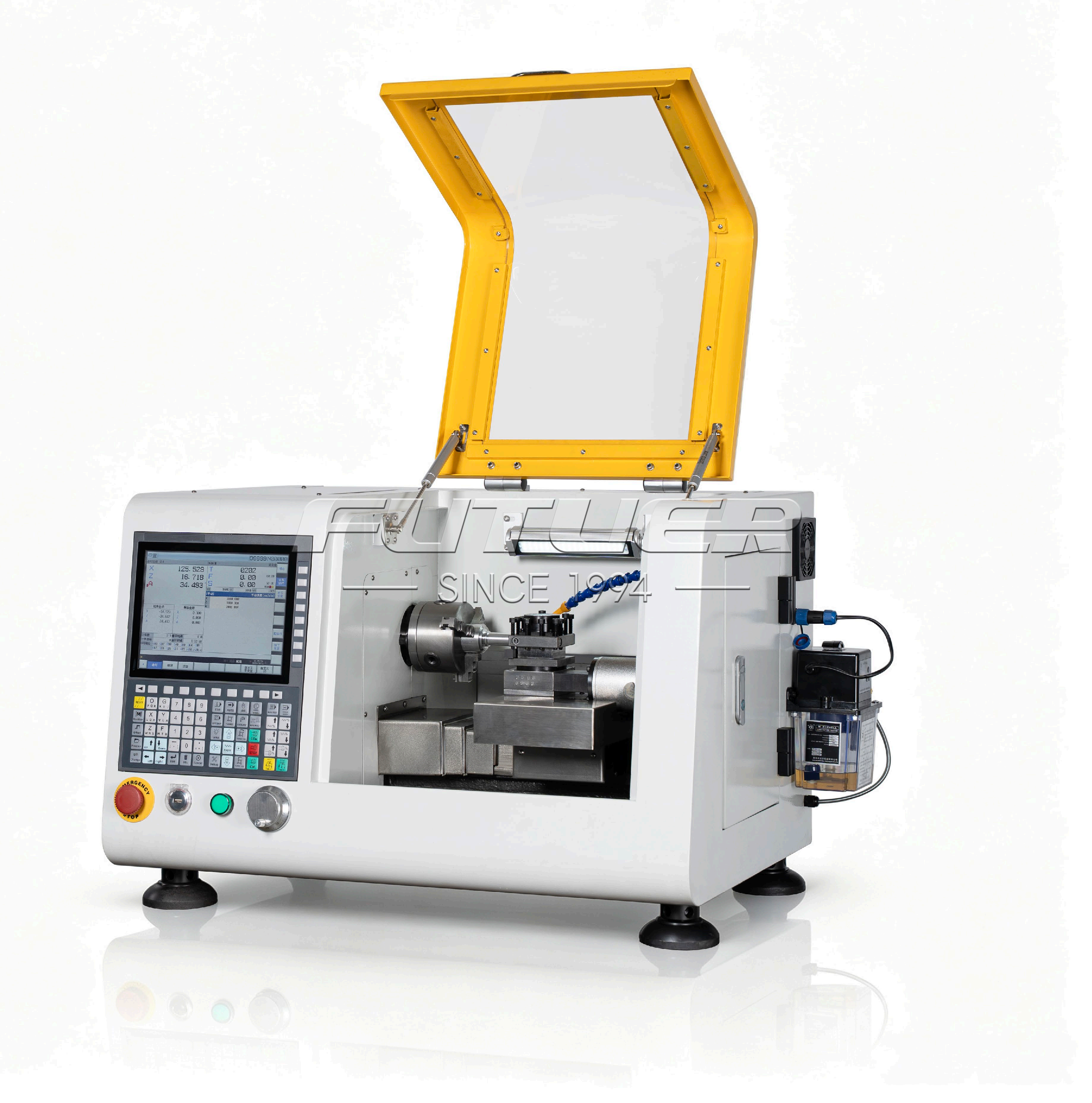

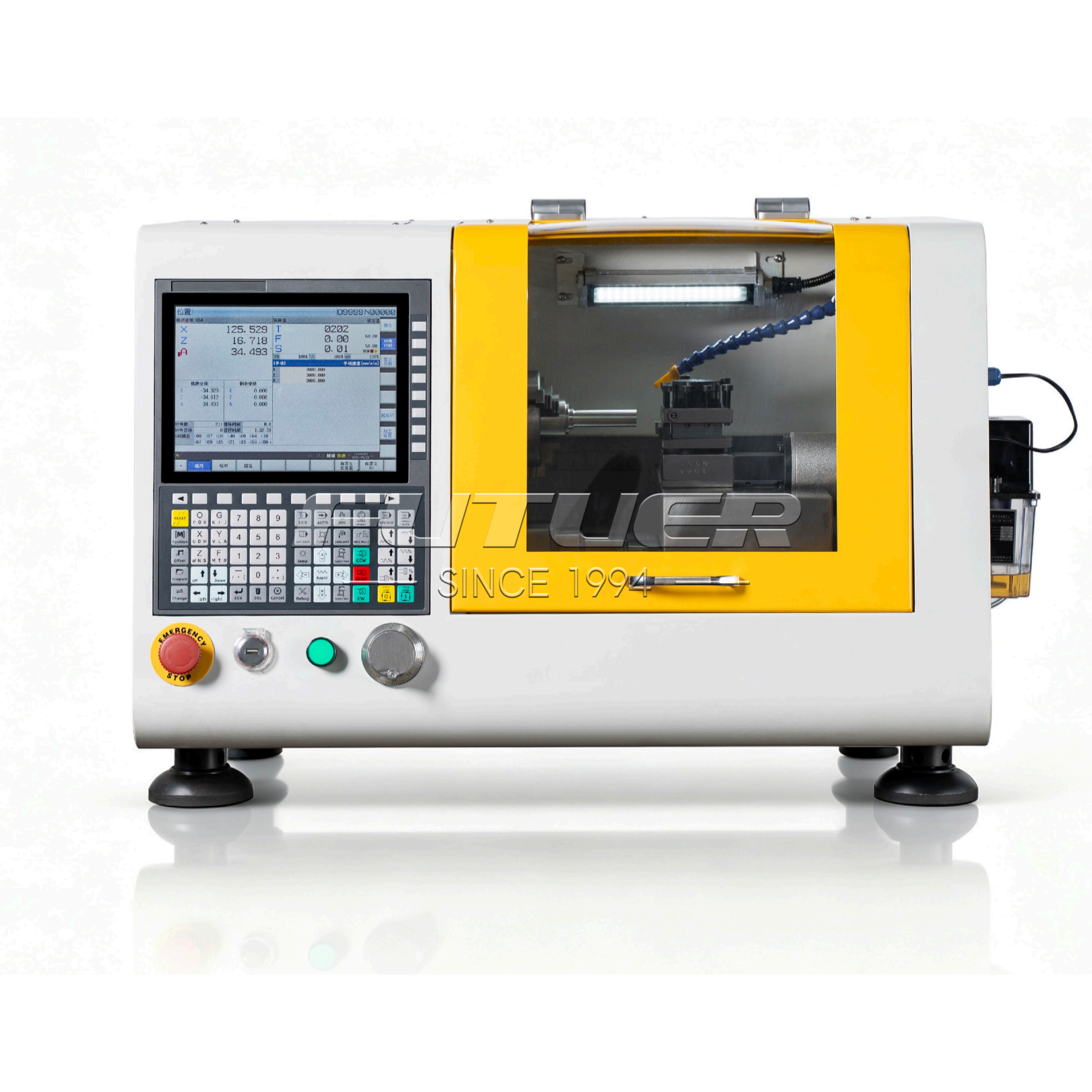

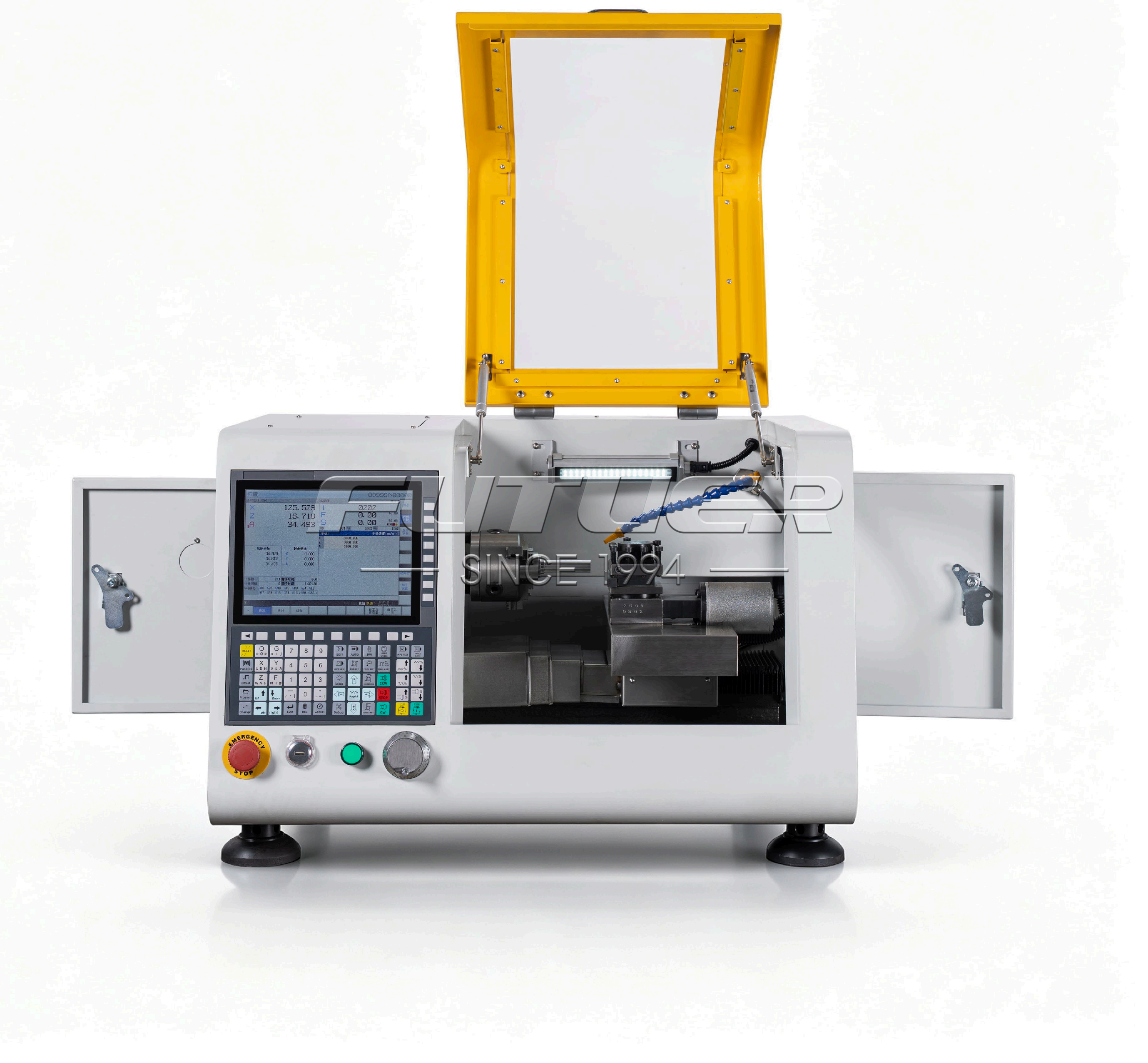

High‑rigidity frame, stable high‑accuracy turning for small‑medium batch parts
| Specification | CNC200 | |
| Maximum Swing Diameter Over Bed | 200mm | |
| Maximum Swing Diameter Over Cariage | 200mm | |
| Maximum Bar Stock Diameter | 20mm | |
| Maximum Machining Length | 155mm | |
| XAxis Travel | 100mm | |
| Z Axis Travel | 155mm | |
| Rapid Traverse Speed | 5m/min | |
| Spindle Speed | 300rpm | |
| Chuck | 100mm | |
| Spindle Bore | 21mm | |
| Spindle Motor | 1kw | |
| Standard | Electric Turret | |
| Tool Size | 12mm | |
| Coolant Tank | 6L | |
| Coolant Pump | 40w | |

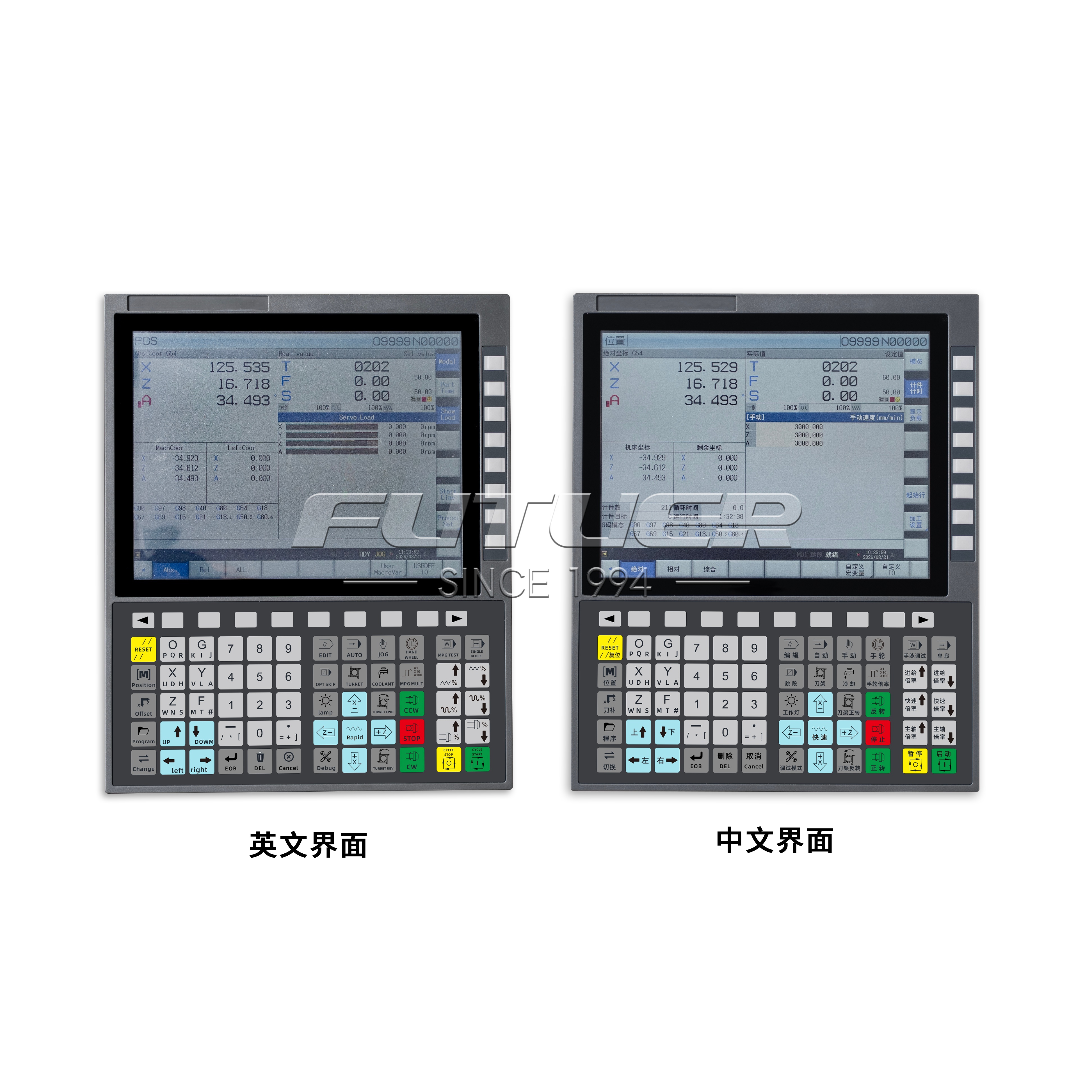

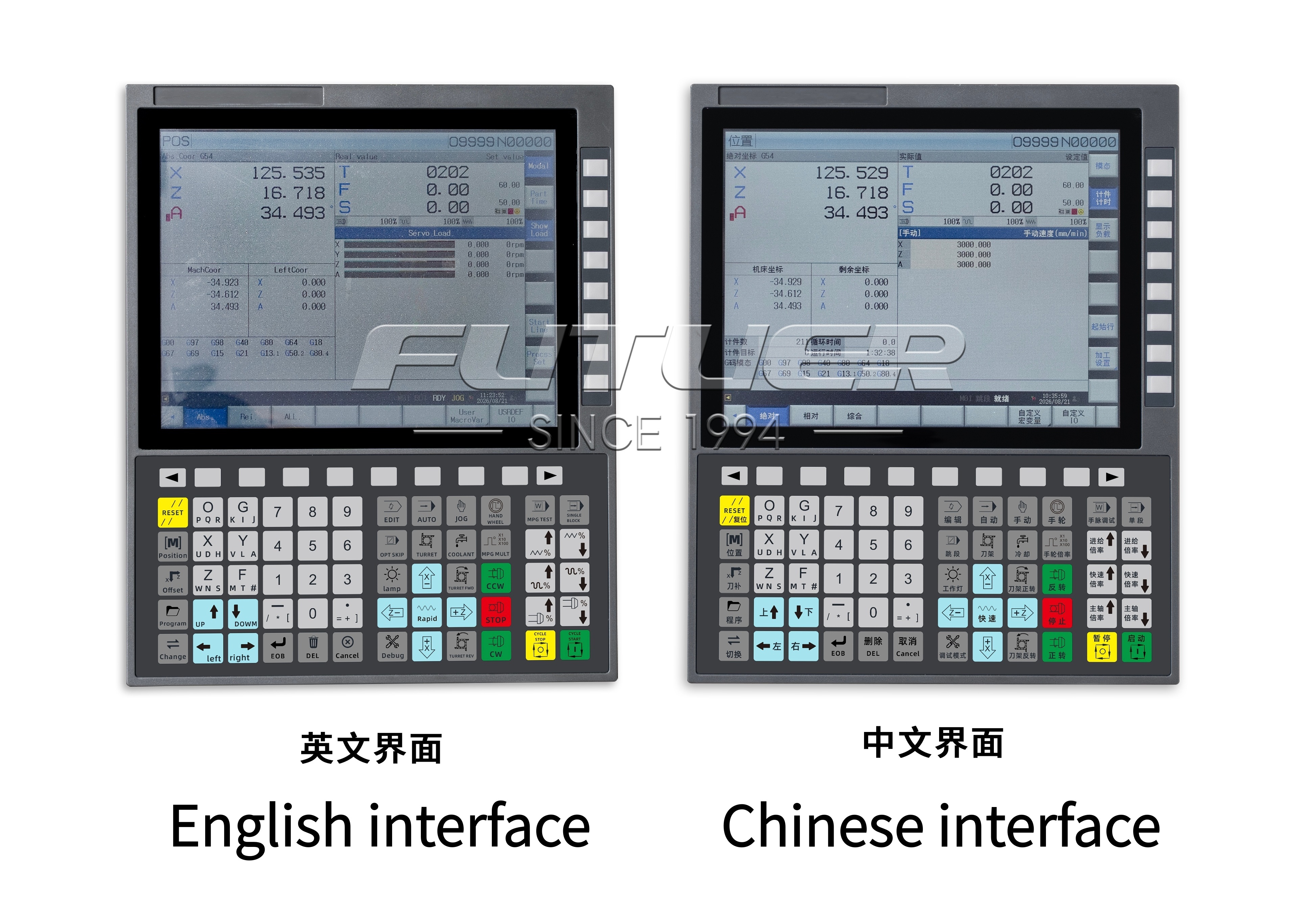

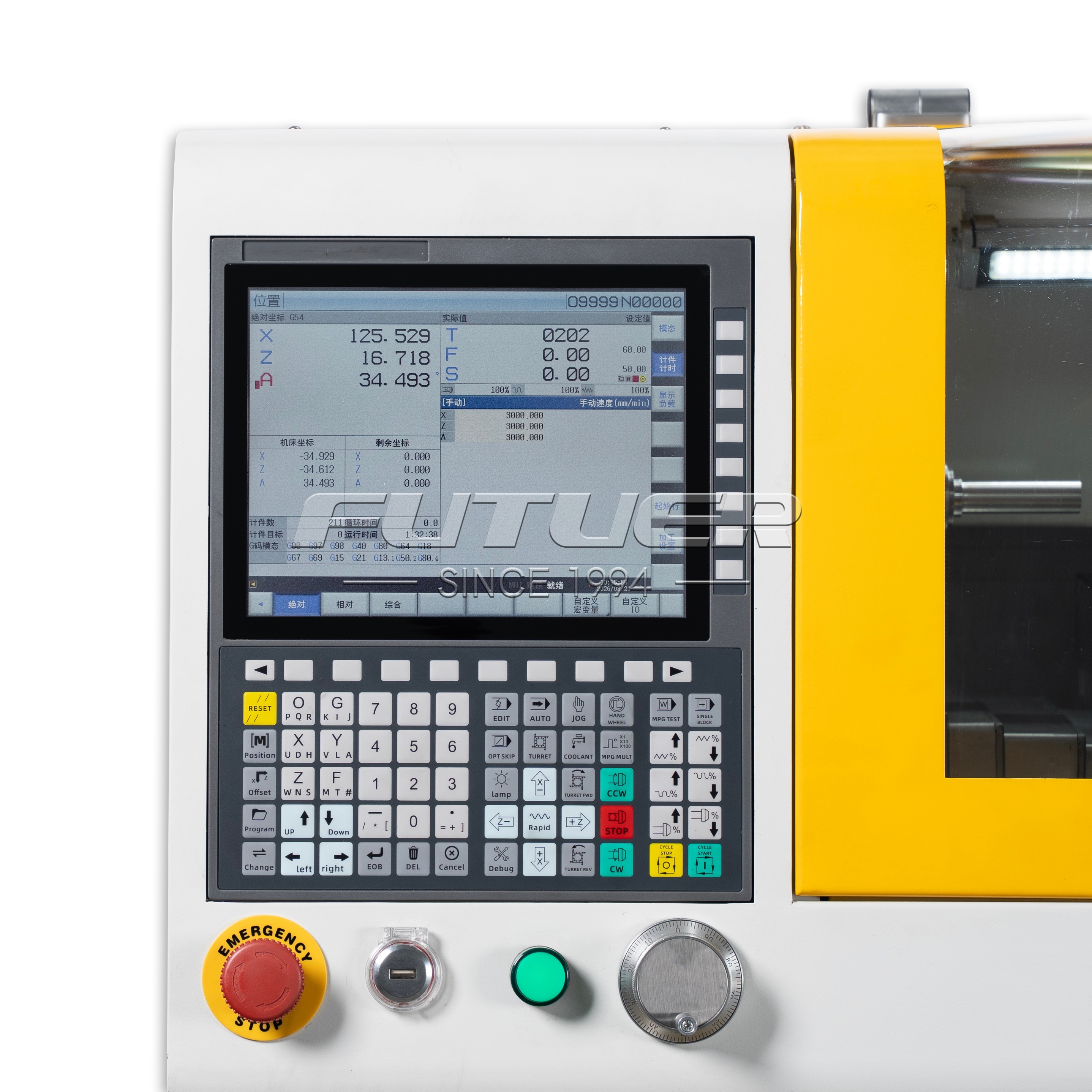

| Control System | Industra-Grade Bus System | |
| Servo Motor | Absolute750W | |
| Guide Rails For XAnd Z | Linear Guide Rail P Grade | |
| XAxis Bllscrew | Ballscrew C71605 | |
| Z Axis Ballscrew | Ballscrew C72005 | |
| Bearing | Angular Contact Bearing 7002/7000 | |
| Length Width Height | 850X660X510mm | |
| Weight | 130/145kg | |
