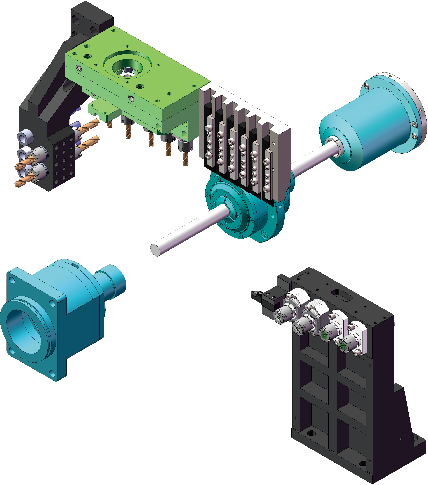

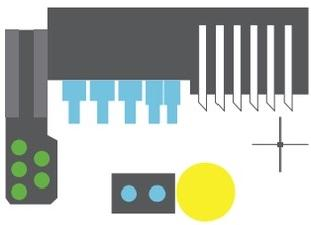

Futuer machine tool design emphasizes high efficiency. SAseries is a Swiss-type CNC machine that combines slidingtools and turret,which is multiple tool holders, main spindles,sub-spindles, and rotating tool axes are fully integrated onstructure. it can quickly perform tuming, milling, drilling,tapping, and side milling operations. This makes it the preferredmachine for processing small and complex parts.
| Project | CN-112 | ||||
| Working ability | Bar machining maximum diameter | φ12mm | |||
| Bar machining minimum diameter | φ1mm | ||||
| The material with the most suitable diameter(mm) | φ6mm stock bin | φ13mm stock bin | |||
| φ1.5-φ4 | φ3-φ10 | ||||
| Bar material processing length | 2500mm-3000mm | ||||
| Other | Bar stock capacity | φ10×21pcs | |||
| Total electrical capacity | 0.96kw | ||||
| Machine tool weight | Approximately 460kg | ||||
| 项目分类 project classification |
具体参数 Specific Parameters |
SA205 | SA265 |
| 最大加工直径 Maximum Processing Diameter |
Ø20mm | Ø26mm | |
| 主轴台移动量 Spindle Travel |
有导套（G.B） With Guide Bushing |
255mm | 255mm |
| 无导套（N.G.B） Without Guide Bushing |
2.5D | 2.5D | |
| 车刀 Turning Tool |
刀具数 Number of Tools |
6 tools | 6 tools |
| 刀具规格 Tool Specifications |
□12mm | □12mm | |
| 端面加工 Facing |
正面固定工具 Front Mounting Tool |
5 tools | 5 tools |
| 背面固定工具 Back Mounting Tool |
2 tools（Max.5 tools） | 2 tools（Max.5 tools） | |
| 固定工具（最大钻孔） Mounted Tool (Max Drilling) |
Ø10mm | Ø10mm | |
| 固定工具（最大攻丝） Mounted Tool (Max Tapping) |
M8*P1.25 | M8*P1.25 | |
| 横向回转工具 Cross tool unit |
刀具数 Number of Tools |
5 tools | 5 tools |
| 刀具规格 Tool Specifications |
5-ER16 | 5-ER16 | |
| 最大钻孔（ER16） Maximum drilling (ER16) |
Ø8mm | Ø8mm | |
| 最大切削攻丝 Maximum cutting and tapping |
M6*P1.0 | M6*P1.0 | |
| 最大铣削 Maximum milling |
Ø10mm | Ø10mm | |
| 最大立铣开槽 Maximum end milling |
wide:1.5, deep:4mm | wide:1.5, deep:4mm | |
| 转速（ER16） Speed (ER16) |
6,000min⁻¹ | 6,000min⁻¹ | |
| 快移速度（Rapid feed rate） | 32m/min (Z1/X1/Y1) | 32m/min (Z1/X1/Y1) | |
| 主轴核心参数 Spindle Core Parameters |
10,000min⁻¹ | 10,000min⁻¹ | |
| 冷却系统 Cooling System |
170L / 0.4Kw | 170L / 0.4Kw | |
| 机床外形与重量 Machine Tool Dimensions and Weight |
2310×1300×1720mm / 2600kg | 2310×1300×1720mm / 2600kg | |
| 最大加工直径 Max.machining diameter |
Ø20mm | Ø26mm | |
| 最大前取零件长度 Max.length of front pick |
80mm | 80mm | |
| 最大夹持突出长度 Max.emerged length |
50mm | 50mm | |
| 背面加工 Back processing |
数量 Number（ER16） |
4-6 把 (Contains optional) | 4-6 把(Contains optional) |
| 最大钻孔（固定工具） Max.drilling (Fixed Tool Axis) |
Ø8mm | Ø8mm | |
| 最大钻孔（回转工具） Max.drilling (Power-driven) |
Ø8mm | Ø8mm | |
| 最大切削攻丝（固定工具） Max.tapping (Fixed Tool Axis) |
M8*P1.25 | M8*P1.25 | |
| 最大切削攻丝（回转工具） Max.tapping (Power-driven) |
M6*P1.0 | M6*P1.0 | |
| 快移速度 Rapid feed rate |
Z2 | 32m/min | 32m/min |
| X2 | 24m/min | 24m/min | |
| Y2 | 24m/min | 24m/min | |
| 副轴最高转数 Sub spindle speed |
8,000min⁻¹ | 8,000min⁻¹ | |
| 副轴度数 Sub spindle indexing angle |
C axis control(0.001°) | C axis control(0.001°) | |
| 副轴功率 Ub spindle motor |
1.5/2.2kw | 1.5/2.2kw | |
