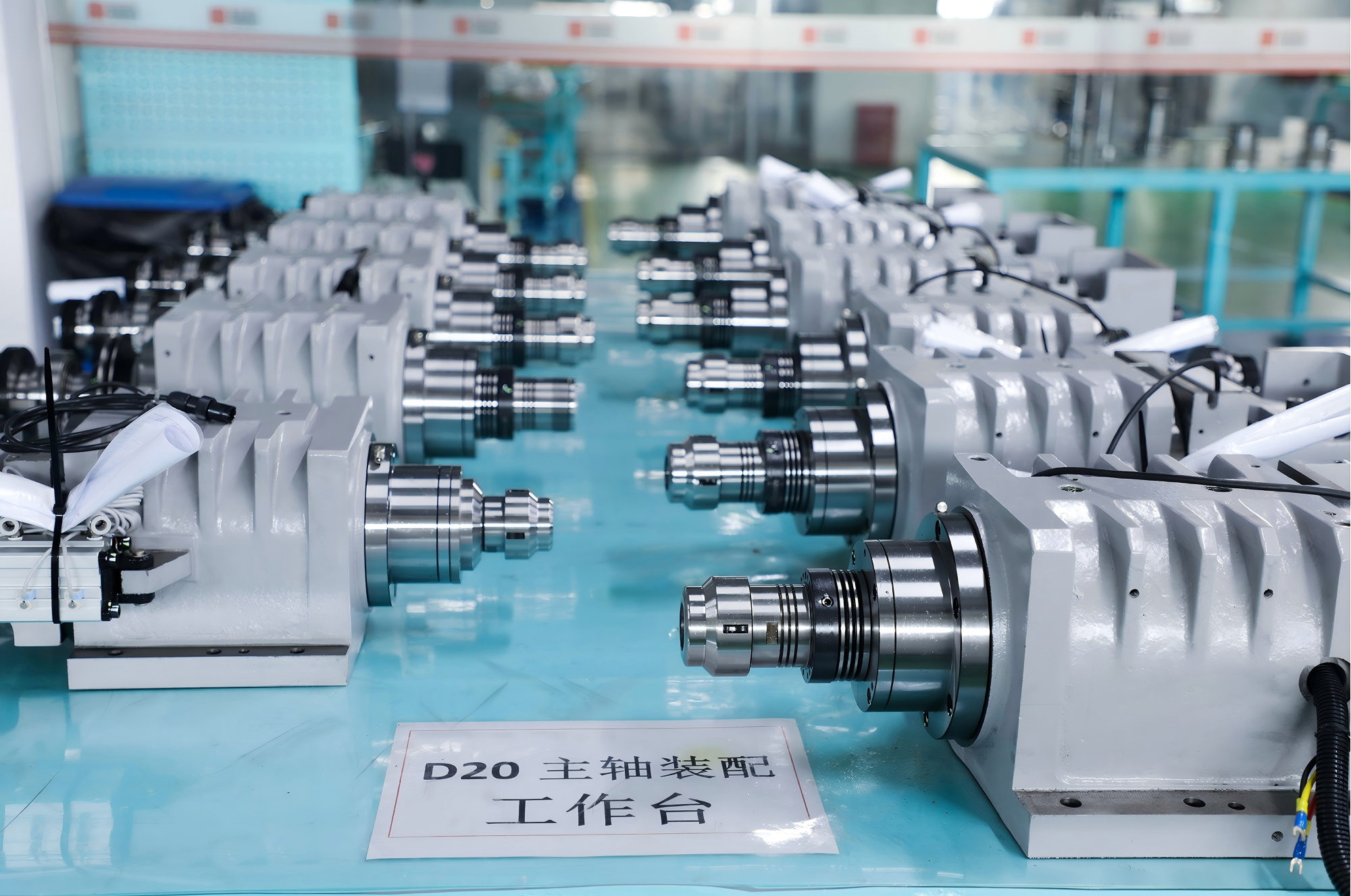

Self-developed and self-made power head.The power head is processed through 25 procedures.The internal cone runout of the power head is within 0.003mm.High-rigidity ER16, ER20, rotational speed 6000.All power heads are required to undergo running-in, temperature rise and noise rigidity tests
TECHNICAL SPECIFICATIONS
Spindle Standard Configuration
|
电主轴 Electric spindle
|
远行自主研发 Futuer independently developed the machine |
|
7.5KW大功率 7.5KW high power | |
|
高精度、高刚性. High precision and high rigidity. | |
|
主轴采用气动夹紧方式 Pneumatically clamped spindle | |
|
动力头 Power head |
远行自主研发 Futuer independently developed the machine |
|
噪声小，精度高 Low noise, high precision. | |
四个方向均有动力头，S3、S4、S5、S6（背轴侧面）There are power heads in four directions, S3, S4, S5, S6 (on the side of the back shaft) | |
|
高效率、加强筋 High efficiency, reinforced ribs
|
龙门式排刀结构，加工效率快 Gantry-style tool arrangement for high machining efficiency |
|
蜂窝状加强筋底座 Honeycomb-ribbed base | |
|
轴向电机 Axial motor |
大功率1300W/850W伺服电机 High-power 1300W/850W servo motor |
|
NSK丝杆 NSK lead screw. |
