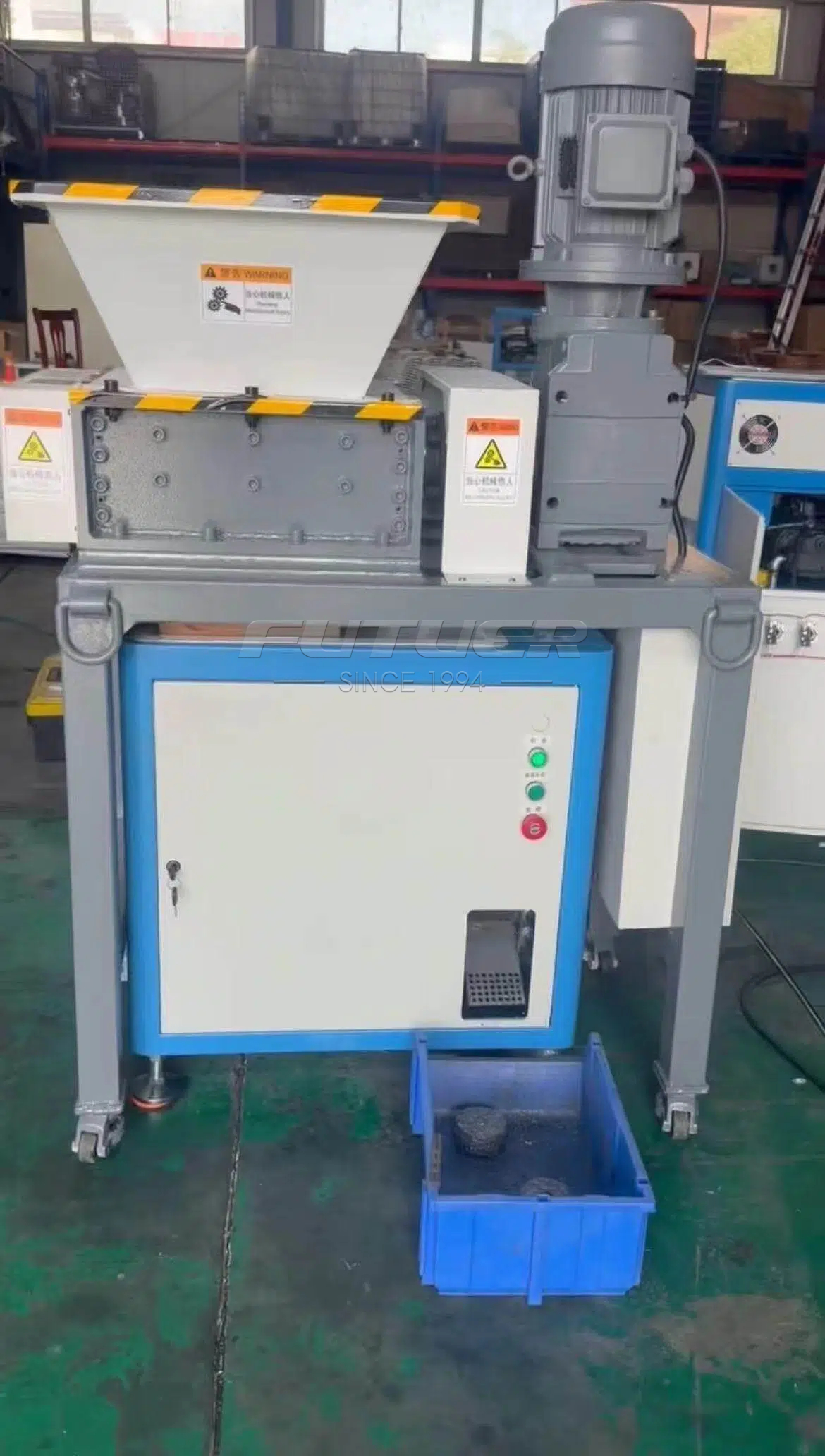

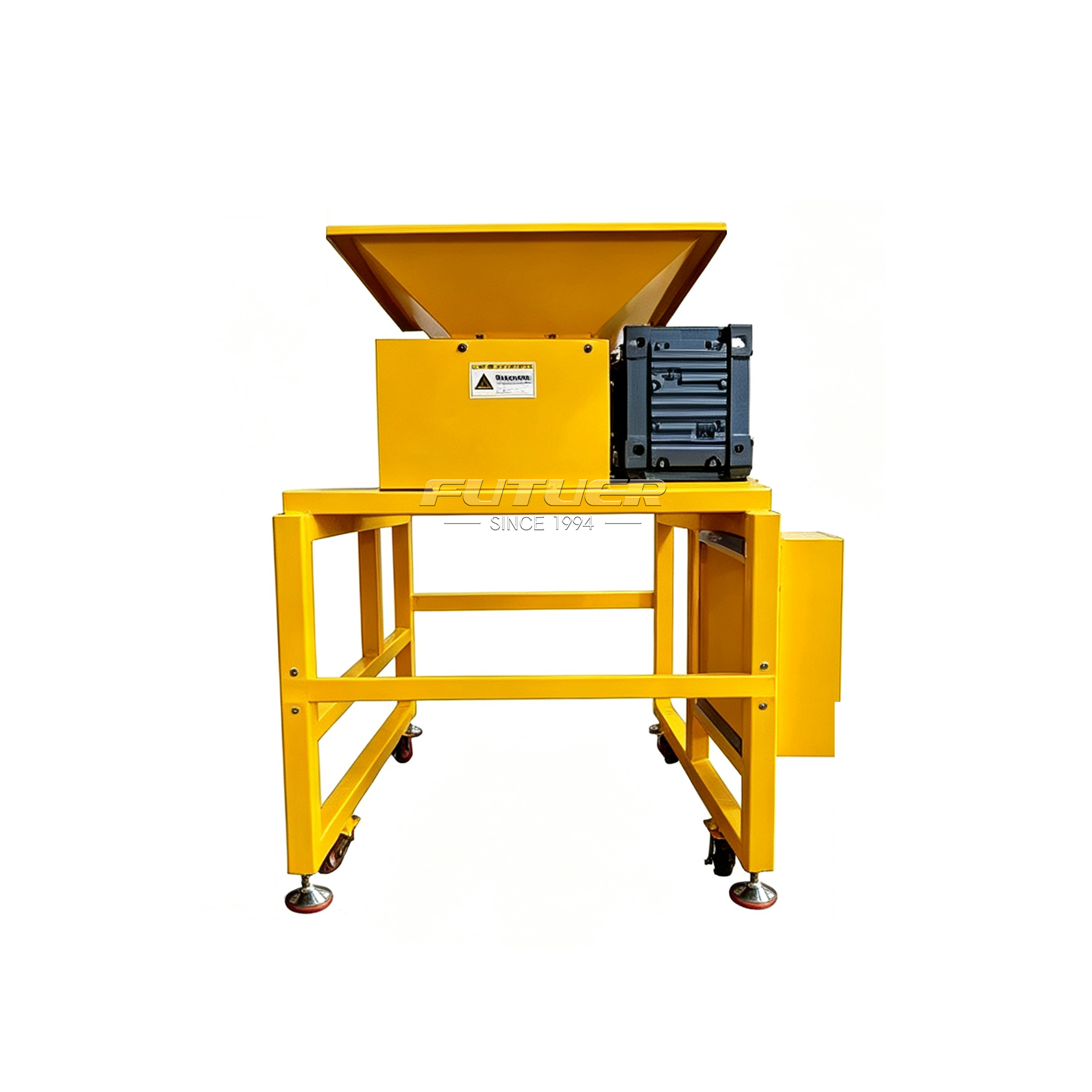

The fluffy, long chips produced by CNC turning take up a great deal of space. This machine uses high-intensity cutting technology to instantly shred the tangled, “bird’s nest”-like waste into uniform, short particles, significantly reducing its volume and saving storage space on the factory floor.
Shredder Parameters
| Parameter type | XP300*200 |
| Motor | 5.5KW-4, 1 unit, Three-phase, 380V, 50HZ |
| Speed reducer | K87-12, 1 unit |
| Input speed | 12 revolutions per minute |
| Input torque | 2919 Nm |
| Input shaft diameter | Φ 50 |
| Blade specifications and materials | Φ 180*12， 9CrSi |
| Feeding port size (mm) | 500*500*300 |
| Discharge port width (mm) | 450 |
| Discharge port height from the ground (mm) | 200 |
| Machine external dimensions (length * width * height) | 1100*570*1330 mm |
| Machine weight | Approximately 400 kilograms |
| Scope of application | Thin metal products, plastic products, kitchen waste, wood panels, paper, etc. |
