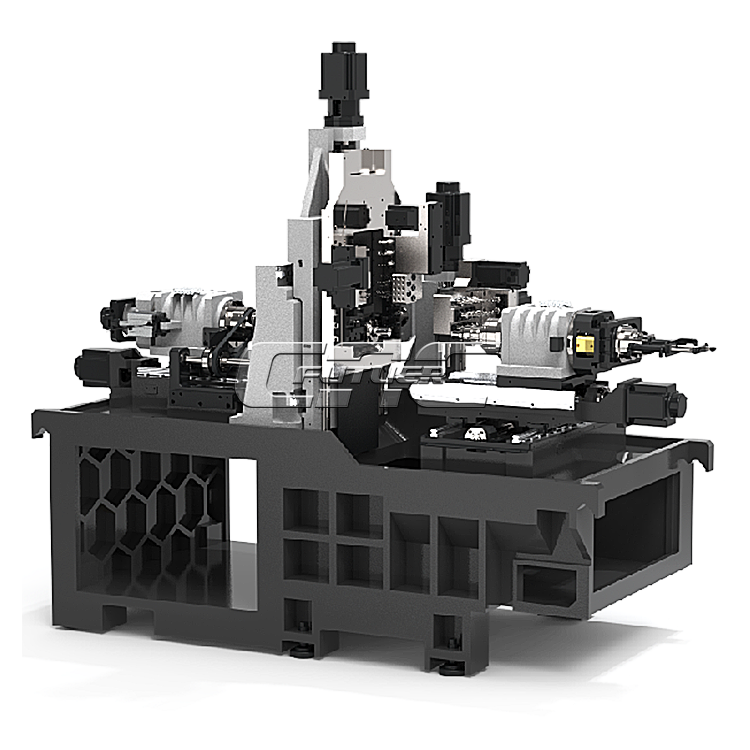

TD26 High-Rigidity CNC Lathe: 7mm Single-Pass Turning, 8.2KW High Power

TECHNICAL SPECIFICATIONS

Control system	System	FANUC/SYNTEC
Processing range	Fast movement speed	X-axes: 24 meters per minute; Other axes: 30 meters per minute
	Diameter of the bar stock held by the main spindle	φ3-φ35mm
	Maximum drilling diameter of the main spindle	φ10mm
	Maximum pitch diameter of the main spindle	M8
	Diameter of the workpiece held by the secondary spindle	Without guide sleeve φ3-φ35 mm With a guide sleeve φ28mm
	Maximum drilling diameter of the secondary spindle	φ10mm
	Maximum pitch diameter of the secondary spindle	M8
	Maximum drilling diameter of the side-milling power head	φ8mm
	Maximum tapping diameter of the side-milling power head	M6
Motorized spindle	Main/auxiliary shaft power	11KW/11KW
Motorized spindle	Main/auxiliary shaft maximum rotational speed	6000r/min
Fast headstock	Key-type movable guide sleeve stroke	230mm
Maximum movement amount	Without condom (optional)	360mm

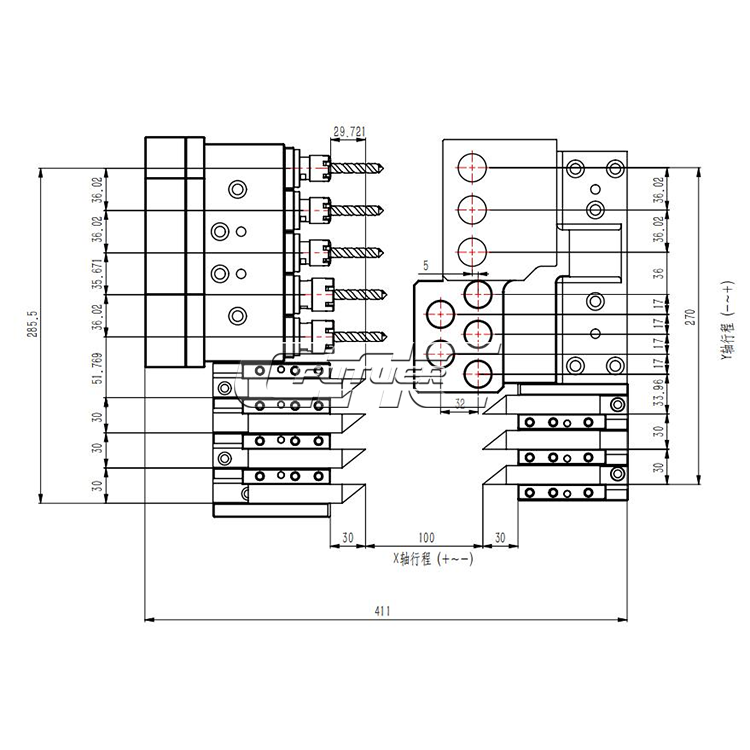

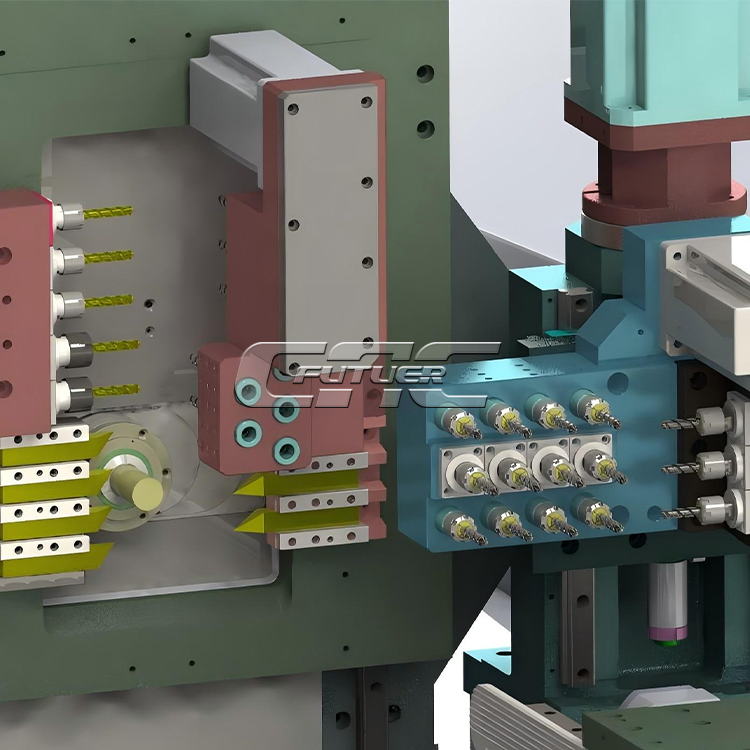

Cutter	Number of cutting tools	6 pieces of 16*16mm
	Side-mounted power cutting tool	3 pieces of ER16 and 2 pieces of ER20 power cutting tools

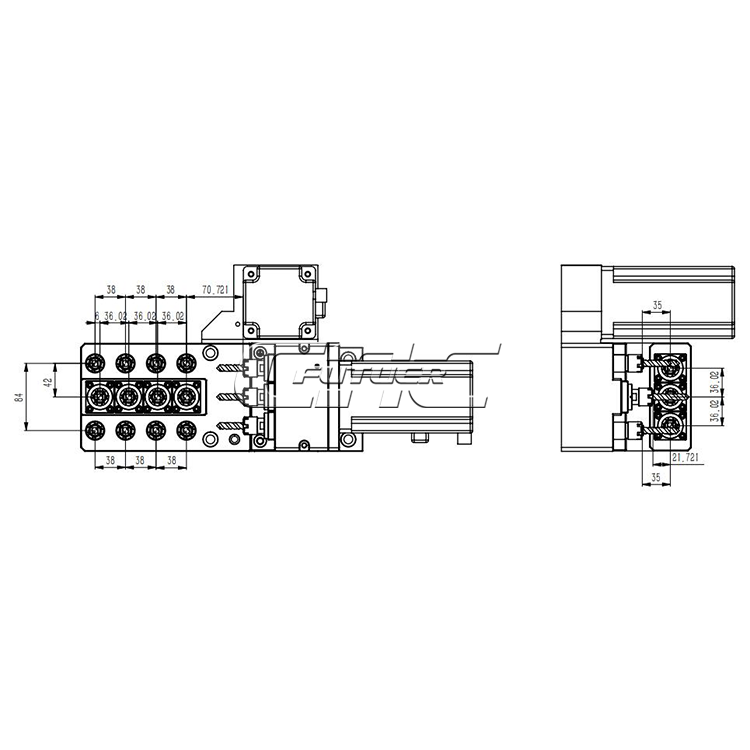

	Spindle end face tool	5 pieces of ER16 fixed drill rods plus 3 pieces of ER16 power cutting tools
	Secondary spindle end face tool	8 pieces of ER16 fixed cutting tools plus 4 pieces of ER16 power cutting tools
	Side cutting tools on the secondary shaft	3 sets of ER16 power cutting tools
	Maximum rotational speed of the power head	5500r/min

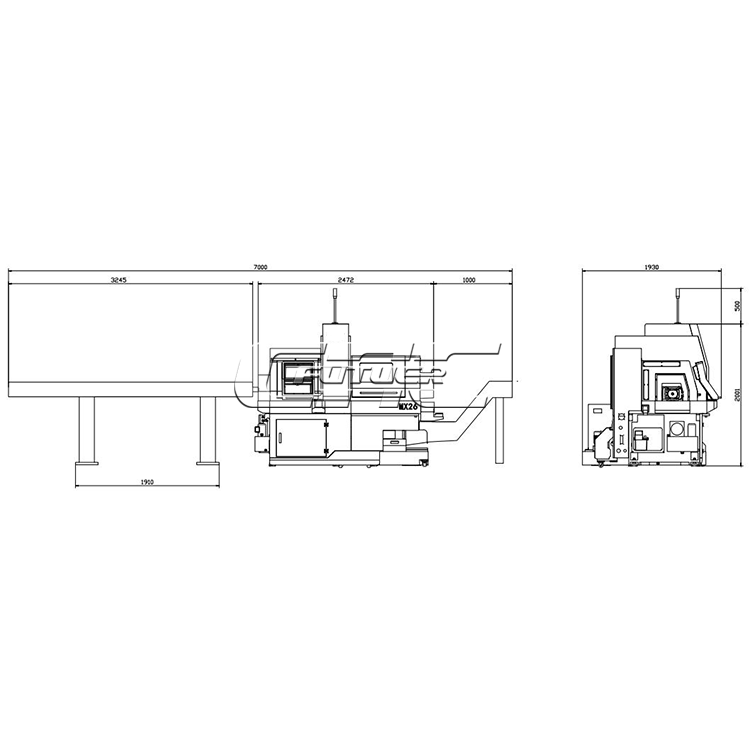

Machine overall dimension	Dimensions (length, width, height)	230018901950mm
Machine tool weight	Weight	4000kg

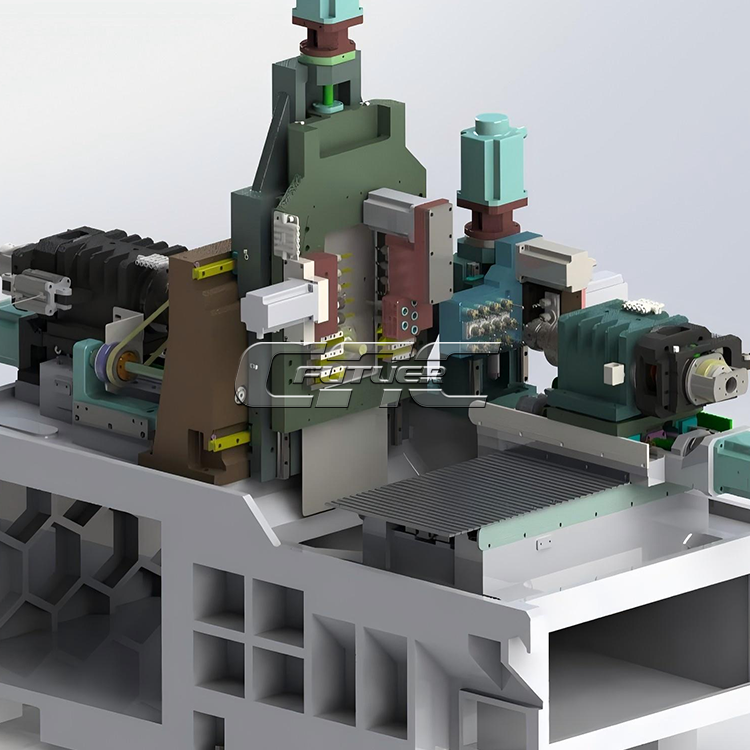

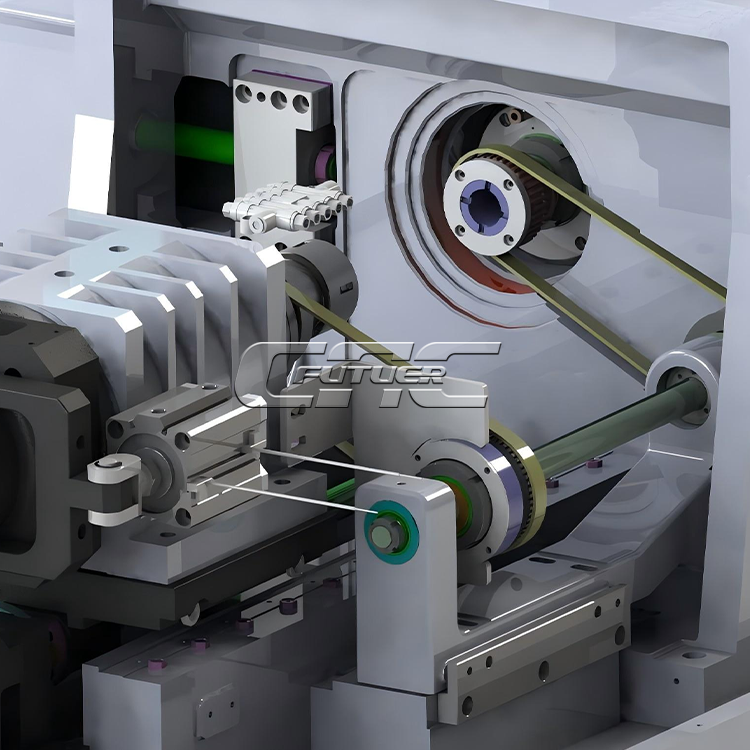

This machine adopts a hydraulic clamping structure for the main spindle and auxiliary main spindle (hydraulic rotating cylinder), ensuring that the workpiece will not come loose during drilling and heavy cutting;
The power head is independently developed, featuring low noise, high rigidity and high precision, representing the industry's high standard and on par with Japanese and European brands;
The exterior design is smooth, the workmanship is precise, the structure is rigorous, and it has the brand image of an industry high-end product;
It operates in dual channels, with the main spindle direction for processing and the auxiliary main spindle also processing simultaneously;
The 6-axis has powerful functions and an ultra-efficient processing mode;
The X, Y, and Z axis motors have high power of 850W/750W and large inertia servo motors;
The screw nut is in a double nut mode, providing strong rigidity for cutting; The bearing is fixed in a way to maintain high precision;
The screw guide rail is 25mm, with a large lead of 10mm pitch, fast speed, and the moving speed of the worktable on the drag plate is 30m/min;
Power heads S3, S4, and S5 are available in all three directions for convenient use; This machine is equipped with high pressure, and 40-70kg can be selected;
The machine body, motor frame, bearing seat, and auxiliary main spindle drag plate all adopt a combined structure to ensure a tight mechanical structure and a beautiful appearance.
