1.插补系列为凯贝斯新一代高钢性与高精度车削中心能满足多样化的加工需求。
The interpolation series is a new generation of high-rigidity and high-precision turning centers from Kebase to meet diverse processing needs.
2.节约空间的设计，全面提升进给轴速度，能有效提升产能。
The space-saving design improves the speed of the feed shaft comprehensively and can effectively increase production capacity.
3.定位重型插补 Y 结构车铣复合。
Positioning heavy interpolated Y structure turn-milling complex.
| 项目/Item | 名称/name | 单位/Unit | EX200MY EX300MY EX200MYS | EX300MYS | ||
| 加工能力 Processing capacity |
最大回转直径/Maximum turning diameter | mm | 700 | |||
| 最大加工直径/Maximum machining diameter | mm | 340 | ||||
| 最长加工长度/Maximum working length | mm | 500 | ||||
| 行程 Stroke |
X轴行程/X-axis travel | mm | 250 | |||
| Y轴行程/Y-axis travel | mm | 100(±50) | ||||
| Z1轴行程/Z1 axis travel | mm | 570 | ||||
| Z2轴行程/Z2 axis travel | mm | / | 500 | |||
| 第 1 主 轴 Main spindle |
输出功率/Output power | KW | 15 | |||
| 端部形式/End form | A2-6 | A2-8 | A2-6 | A2-8 | ||
| 最高转速/Maximum speed | rpm | 3500 | 3000 | 3500 | 3000 | |
| 卡盘/Chuck | 寸/Inch | 8 | 10 | 8 | 10 | |
| 最大棒料通孔直径/Maximum bar through hole diameter |
mm | Φ51/中65 | Φ74 | Φ51/中65 | Φ74 | |
| 第2主轴 Sub spindle |
输出功率/Output power | KW | / | / | 11 | 15 |
| 端部形式/End form | / | / | A2-5 | |||
| 最高转速/Maximum speed | rpm | / | 4000 | |||
| 卡盘/Chuck | 寸/Inch | / | 6 | |||
| 主轴通孔/Spindle through hole | 中空/Through Hole | |||||
| 移动速度/Moving speed | m/min | 25 | ||||
| 尾座Tailstock | 可编程尾座/Programmable tailstock | / | ||||

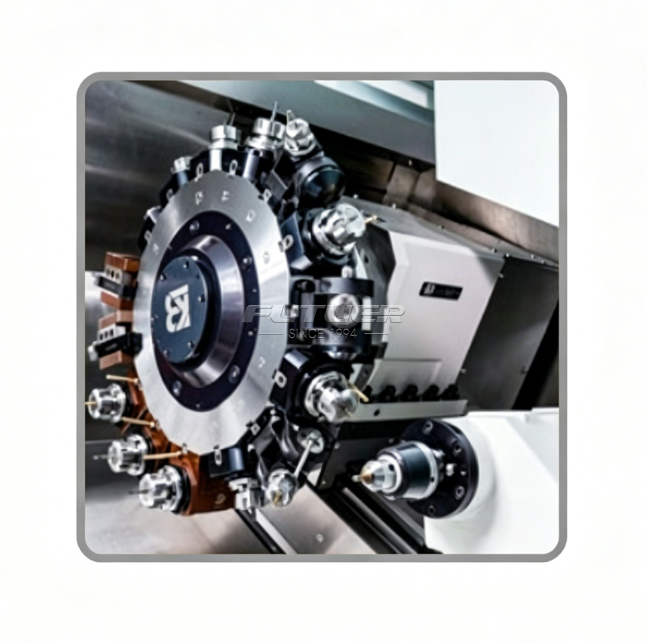

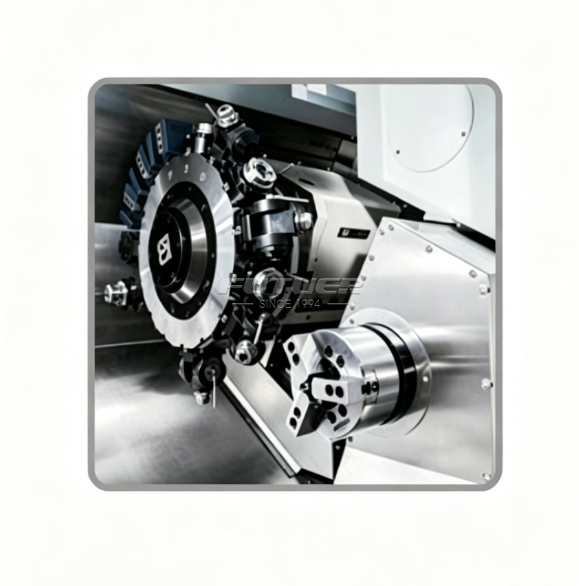

| 刀塔 Turret |
刀具容量/Tool capacity | 把/Set | 12/15把/Set | |||
| 车刀刀体尺寸/Turning tool body size | mm | 25X25 | ||||
| 最大镗刀直径/Maximum boring tool diameter | mm | 40 | ||||
| 12工位BMT65;可选15 | 工BMT55/12 stations BMT65;Optional 15-is statims BMT55 | |||||
| 铣削主轴最高转速/Maximum speed of milling spindle |
m/min | 6000 | ||||
| 输出功率/Output power | KW | 5.0 | ||||
| 进给轴 Feed axis |
X轴快进速度/X-axisfast forward speed | m/min | 25 | |||
| Y轴快进速度/Y-axis fast forward speed | m/min | 10 | ||||
| Z1/Z2轴快进速度/Z1/Z2 axis fast forward speed |
m/min | 25 | ||||
| C轴快进速度/C-axis fast forward speed | rpm | 500 | ||||
| 电机功率/Motor power | KW | 2.4 | ||||
| 重复定位精度/Repeated positioning accuracy | ±0.0025 | |||||
| 其他 Other |
机床尺寸/Machine size | mm | 2700(L)×1800(W)×1915(H) | |||
| 总功率/Gross power | KW | 29 33 |
42 | 50 | ||
| 机床总重/Gross machine weight | Kg | 5300 5500 5300 |
5500 | |||
