Precision CNC tool lathe

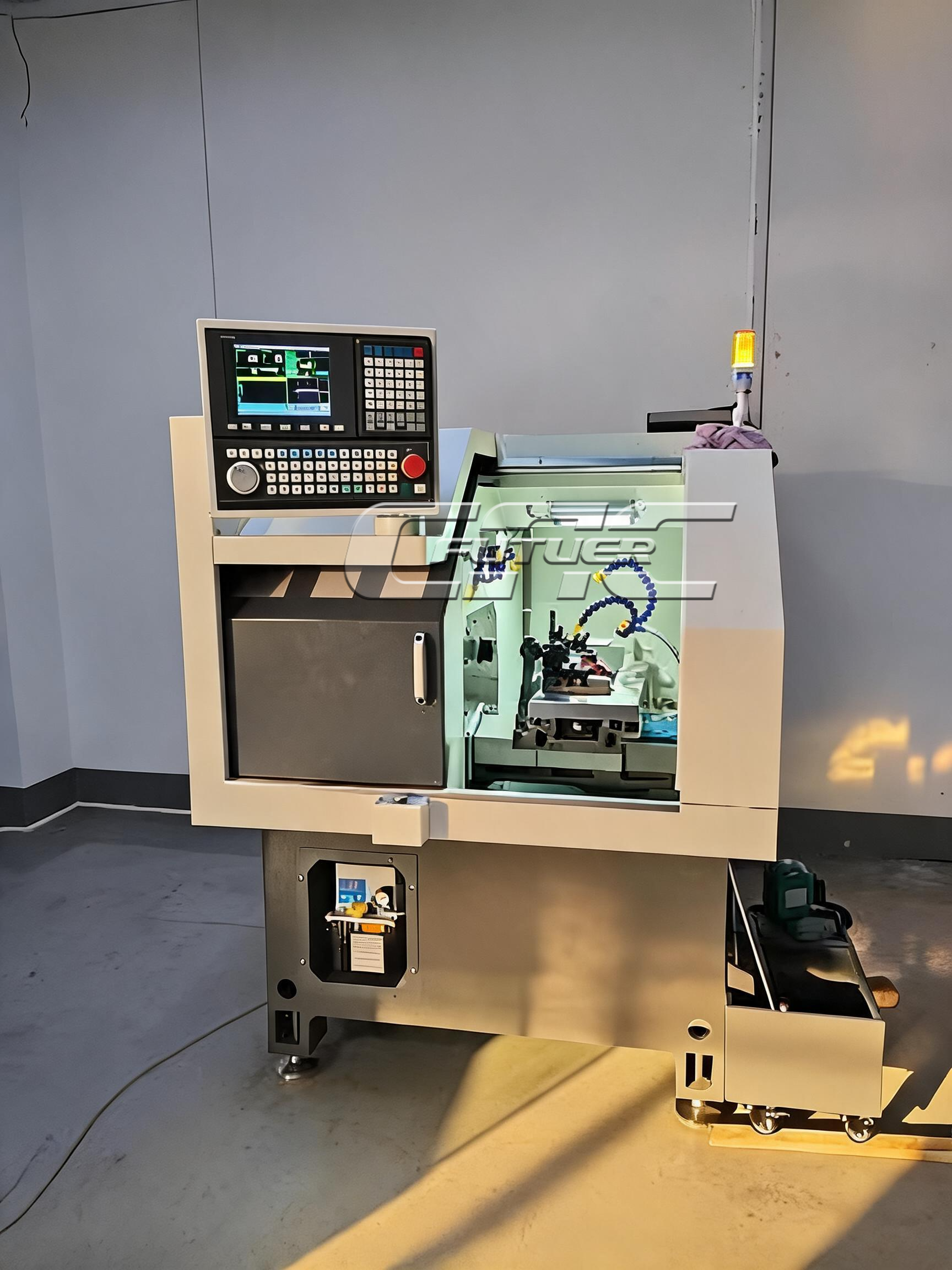

CNC Lathe Model LC-15. Bed is made of one-piece casting.

Working Range:
Maximum bed rotation diameter (mm): Φ100
Maximum machining diameter (mm): Φ15
Maximum machining length (mm): 100
X-axis limit travel (mm): 400
Z-axis limit travel (mm): 150 (without guide valve) / 120 (with guide valve)
Equipment Accuracy:
X-axis outer diameter accuracy (mm): ≤0.01
Z-axis length accuracy (mm): ≤0.01
Spindle radial runout accuracy (mm): ≤0.005
Spindle axial runout accuracy (mm): ≤0.005
Spindle:
Spindle bearing: NSK P4 grade (Japan)
Spindle speed range (r/min): 0-6000 rpm
Spindle motor power: Servo motor, 1.8KW
Clamping method: Pneumatic clamping
Feed Axis X-axis Lead Screw: HIWIN C3 grade 2005 (Taiwan)

Z-axis Lead Screw: HIWIN C3 grade 2005 (Taiwan)

X-axis Guide Rail: HIWIN HGH20 ball guide rail (Taiwan)

Z-axis Guide Rail: HIWIN HGH20 ball guide rail (Taiwan)

Electrical Control System

CNC System: Microcontroller 630TA bus system

X-axis Servo: Microcontroller 750W 23-bit Tamagawa absolute motor

Z-axis Servo: Microcontroller 750W 23-bit Tamagawa absolute motor

Spindle Servo: Microcontroller 1.8KW spindle servo motor

Accessories

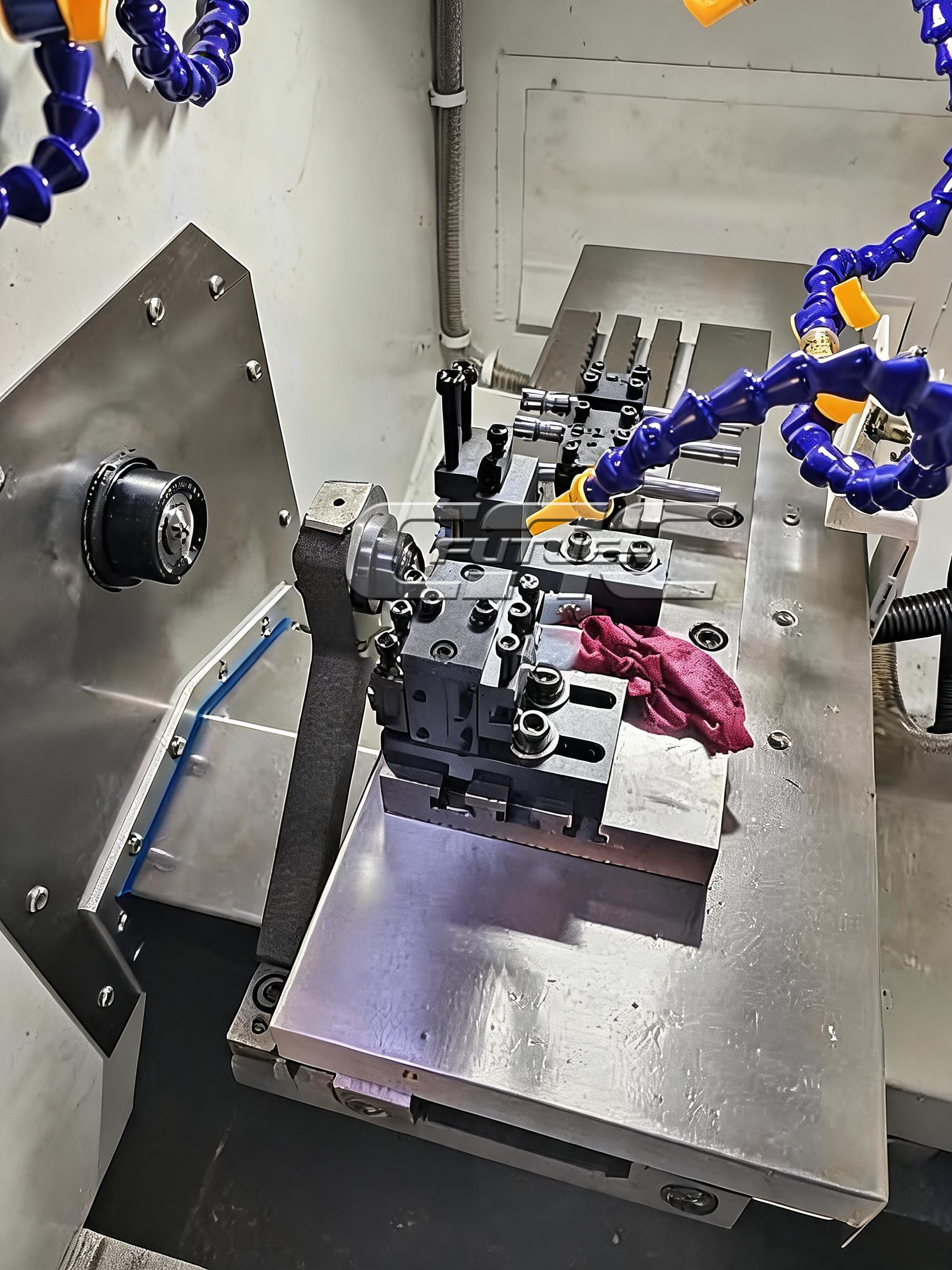

Adjustable Tool Holders: 2 tool holders, 2 drill holders

Tool Nozzle: 1 set

Water Pump: 120W

Optional Items: Optional Y-axis high-frequency milling machine (1 set) for milling flat surfaces, drilling side holes, grooving, etc.

The wooden crate is 1.3 meters long, 0.8 meters wide, and 1.45 meters high, and weighs approximately 500 kg.
