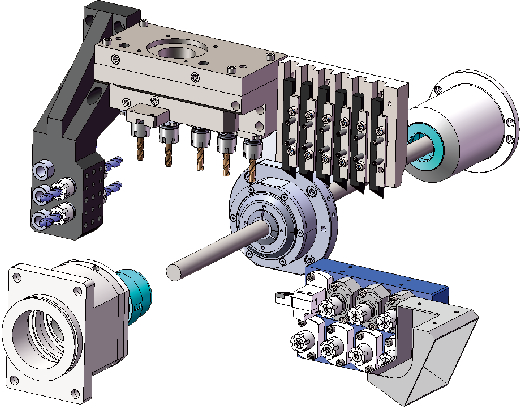

SA series is a Swiss-typine that combines slidingools and turret,which is multiple tool holders, main spindlessub-spindles, and rotating tool axes are fully integrated orstructure. lt can quickly perform turning, milling, drillingtapping, and side miling operations. This makes it the preferred!machine for processing small and complex parts
MACHINE DETAILS
Equipment details and standard size related parameters
TECHNICAL SPECIFICATIONS
Spindle Standard Configuration
|
项目分类 project classification |
具体参数 Specific Parameters |
SA206 |
SA266 |
|
最大加工直径 Maximum Processing Diameter |
Ø20mm |
Ø26mm |
|
|
主轴台移动量 Spindle Travel |
有导套（G.B） With Guide Bushing (G.B.) |
255mm |
255mm |
|
无导套（N.G.B） Without Guide Bushing (N.G.B.) |
2.5D |
2.5D |
|
|
车刀 Turning Tool |
刀具数 Number of Tools |
6 tools |
6 tools |
|
刀具规格 Tool Specifications |
□12mm |
□12mm |
|
|
端面加工 Facing |
正面固定工具 Front Mounting Tool |
5 tools |
5 tools |
|
背面固定工具 Back Mounting Tool |
2 tools（Max.5 tools） |
2 tools（Max.5 tools） |
|
|
固定工具（最大钻孔） Mounted Tool (Maximum Drilling) |
Ø10mm |
Ø10mm |
|
|
固定工具（最大攻丝） Mounted Tool (Maximum Tapping) |
M8*P1.25 |
M8*P1.25 |
|
横向回转工具（Cross tool unit） |
刀具数 Number of Tools |
5 tools |
5 tools |
|
刀具规格 Tool Specifications |
5-ER16 |
5-ER16 |
|
|
最大钻孔（ER16） Maximum drilling (ER16) |
Ø8mm |
Ø8mm |
|
|
最大切削攻丝 Maximum cutting and tapping |
M6*P1.0 |
M6*P1.0 |
|
|
最大铣削 Maximum milling |
Ø10mm |
Ø10mm |
|
|
最大立铣开槽 Maximum end milling |
wide:1.5, deep:4mm |
wide:1.5, deep:4mm |
|
|
转速（ER16） Speed (ER16) |
6,000min⁻¹ |
6,000min⁻¹ |
|
|
功率 Power |
1.0Kw |
1.0Kw |
|
快移速度（Rapid feed rate） |
Z1 |
32m/min |
32m/min |
X1 |
32m/min |
32m/min |
|
Y1 |
32m/min |
32m/min |
|
|
主轴核心参数 Spindle Core Parameters
|
主轴最高转速 Maximum spindle speed |
10,000min⁻¹ |
10,000min⁻¹ |
|
主轴度数 Spindle speed |
0.001° |
0.001° |
|
|
主轴功率 Spindle power |
2.2/3.7Kw |
2.2/3.7Kw |
|
|
主轴通孔直径 Spindle bore diameter |
Ø22mm |
Ø27mm |
|
|
冷却系统 Cooling System |
冷却液容量 Coolant capacity |
170L |
170L |
|
冷却电机功率 Cooling motor power |
0.4Kw |
0.4Kw |
|
|
机床外形与重量 Machine Tool Dimensions and Weight |
外形尺寸（长× 宽 × 高） External dimensions (L x W x H) |
2310×1300×1720mm |
2310×1300×1720mm |
机床重量（Weight） |
2600kg |
2600kg |
|
TECHNICAL SPECIFICATIONS
Auxiliary spindle configuration
|
最大加工直径 Max.machining diameter |
Ø20mm |
Ø26mm |
|
|
最大前取零件长度 Max.length of front pick |
80mm |
80mm |
|
|
最大夹持突出长度 Max.emerged length |
50mm |
50mm |
|
|
背面加工 Back processing |
数量 Number（ER16） |
8 把 (Contains optional) |
8把(Contains optional) |
|
最大钻孔 Max.drilling（固定工具 Fixed Tool Axis） |
Ø8mm |
Ø8mm |
|
|
最大钻孔 Max.drilling（回转工具 Power-driven） |
Ø8mm |
Ø8mm |
|
|
最大切削攻丝 Max.tapping（固定工具 Fixed Tool Axis） |
M8*P1.25 |
M8*P1.25 |
|
|
最大切削攻丝 Max.tapping（回转工具 Power-driven） |
M6*P1.0 |
M6*P1.0 |
|
|
快移速度 Rapid feed rate |
Z2 |
32m/min |
32m/min |
X2 |
24m/min |
24m/min |
|
Y2 |
24m/min |
24m/min |
|
|
副轴最高转数 Sub spindle speed |
8,000min-1 |
8,000min-1 |
|
|
副轴度数 Sub spindle indexing angle |
C axis control(0.001°) |
C axis control(0.001°) |
|
|
副轴功率 Ub spindle motor |
1.5/2.2kw |
1.5/2.2kw |
|
