No. 序号 |
Product Photo 产品图片 |
Product Name 产品名称 |
Description of goods 产品描述 |
Quantity 数量(set) |
Unit Price 单价(USD) |
Amount 总价(USD) |
Remark 备注 |
| 1 |
Shot blasting machine 抛丸机 |
Track end plate diameter履带端盘直径：1000mm Track end plate speed履带端盘转速：3.5rpm Max.weight of workpiece工件最大重量：30kg Motor power 电机功率：1.5kw |
1 | 8,500 | 8,500 | 表面处理用 For surface treatment |
|
| 2 |

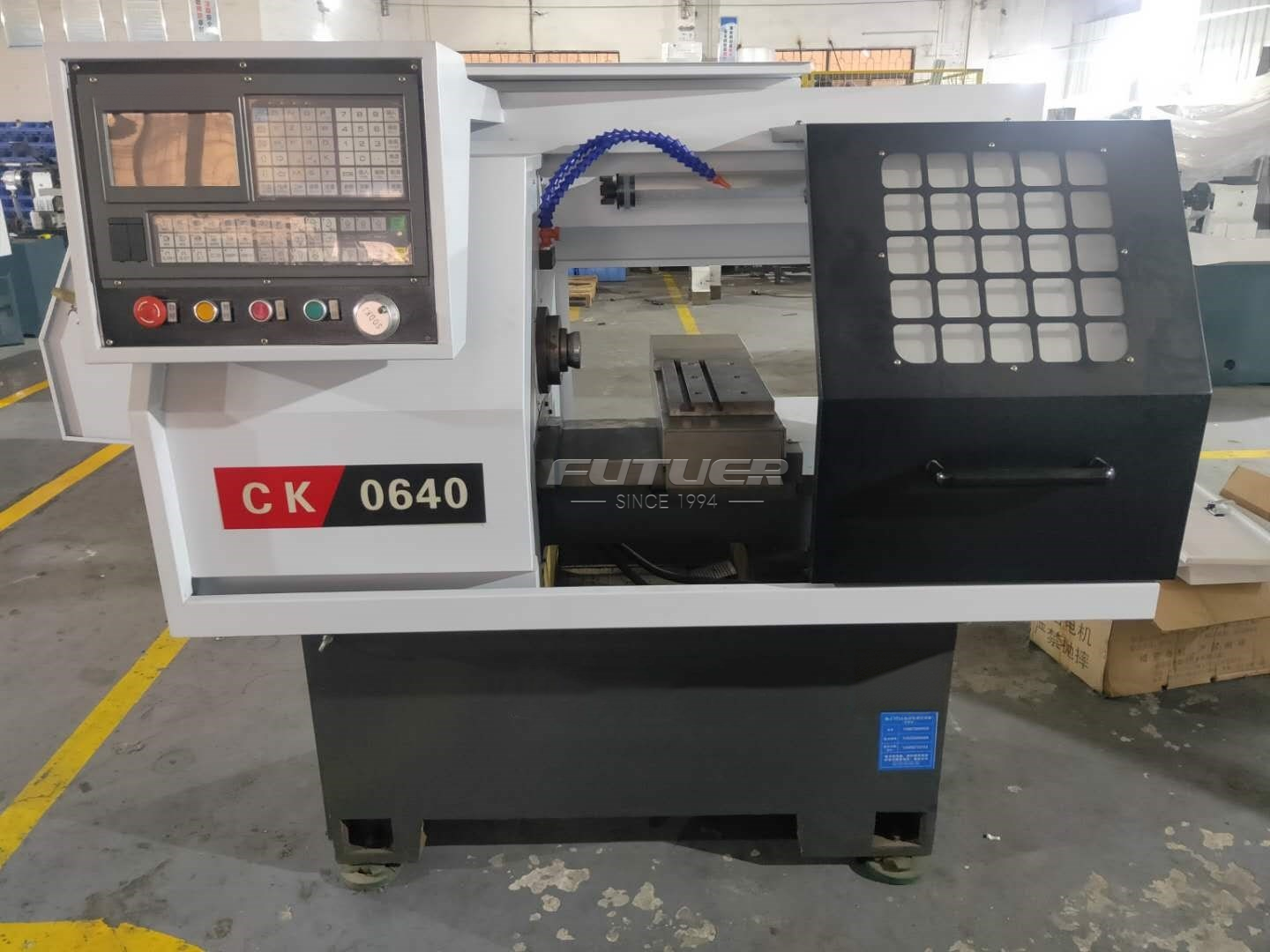

CNC lathe machine 数控车床 |
床上最大回转直径Maximum swing diameter on bed：Φ360mm 最大棒料通过直径Maximum bar passing diameter：Φ40mm 最大车削长度Turning length：Φ350mm 螺纹范围；公制英制：Thread range; metric and inch: 0.25-100/100-4mm/TPI 主轴通孔直径Spindle through hole diameter：Φ48mm 拉管通孔直径Pull pipe through hole diameter：Φ40mm 卡盘直径Chuck diameter: Φ100-160mm（选配optional） 主电机功率：主电机:（2.2-5.5KW）2.2-5.5KW变频器 Main motor power: Main motor:（2.2-5.5KW）2.2-5.5KWin verte 夹紧装置：选配（气动，手动，卡盘，液压，回转缸） Clamping device: optional (pneumatic, manual, chuck, hydraulic, rotary cylinder) 车刀规格Turning tool specifications：16*16/20*20 冷却水泵功率Cooling water pump power：90w 外形尺寸Dimensions：1550（L）*1050（W）*1650（H） 净重Net weight：900kg 数控系统：选配 CNC system: optional |
5 | 5700 | 28500 |
钻孔和切断 drilling and cutting |
|
| 3 | 弯头夹具 Elbow fixture |
17 | 150 | 2550 | |||
| 4 | 普通夹具 Ordinary fixture |
19 | 45 | 855 | |||
| Total cost USD EXW 总出厂价 | 40,405 | ||||||
|
Terms and Payment: The above quotation is based on EXW price. Payment terms:T/T,40% as deposit, 60% balance after examine the goods and before delivery. Delivery time: 90 working days after 40% down payment. Package : Simple plastic film packing, Wooden box required addtional charge. Inspection: Inspection trial of machine can be arranged at our factory, if required,please mention in purchase order. Price validity:30days | |||||||
|
After-sale service: 1.The seller will send operation manuals of machines to the buyer. 卖方将发送机器的使用操作手册给买方。 2.The seller have the responsibility for supply all the spare parts to the buyer of the relative machines as per the price that have through the agreement of both parties. 卖方有责任按照通过双方协议后的价格向买方供应所有相关机器的零部件及用品。 3.The seller can send engineer to the customer’s factory to install and test machines, the buyer responsible for engineers’ air ticket +VISA.+accommodation.and the buyer should pay for the engineer salary USD150/day and responsible for guarantee the safety of the engineer） 卖方可派工程师去安装和测试机器, 买方负责工程师+机票+签证+食宿。（买方应支付工程师薪金150美元/天并负责保障工程师的安全） 4. After the equipment are finished installation and testing in one year, if equipment have any quality problem ,the seller have the responsibility to teach the buyer to repair equipment ; If the buyer are unable to repair the machines, the seller can send Technical personnel to repair the equipment, but the charges of VISA + air ticket +accommodation of technical personnel are for buyer’s responsibility. 设备安装和测试完成后,在一年内, 如果设备有任何质量问题,买方有义务教买家修复设备; 如果买方无法修理,卖方将派技术人员修复,但签证+机票+住宿由买方负责。 | |||||||
