STA25 Copper joint double-spindle CNC machine tool

STA25 Copper joint double-spindle CNC machine tool

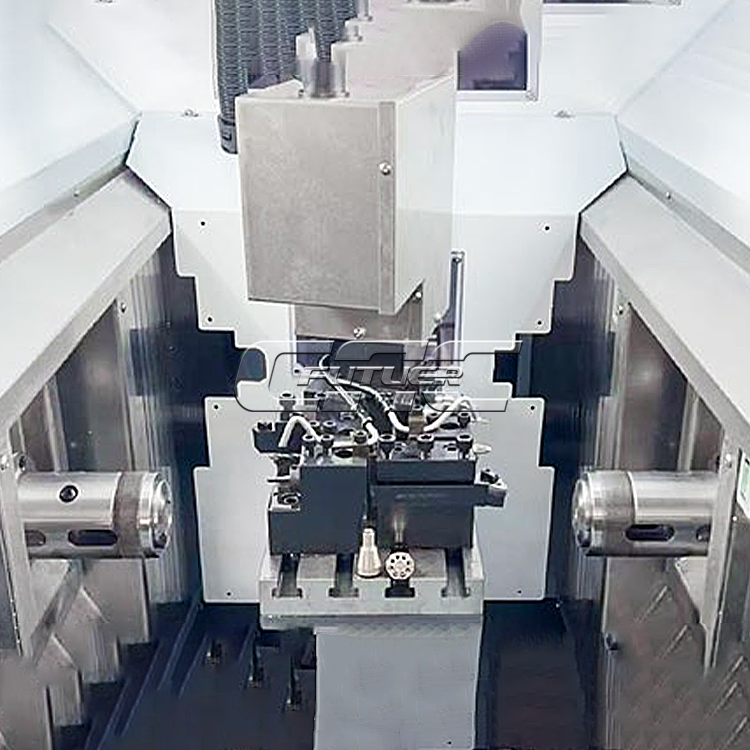

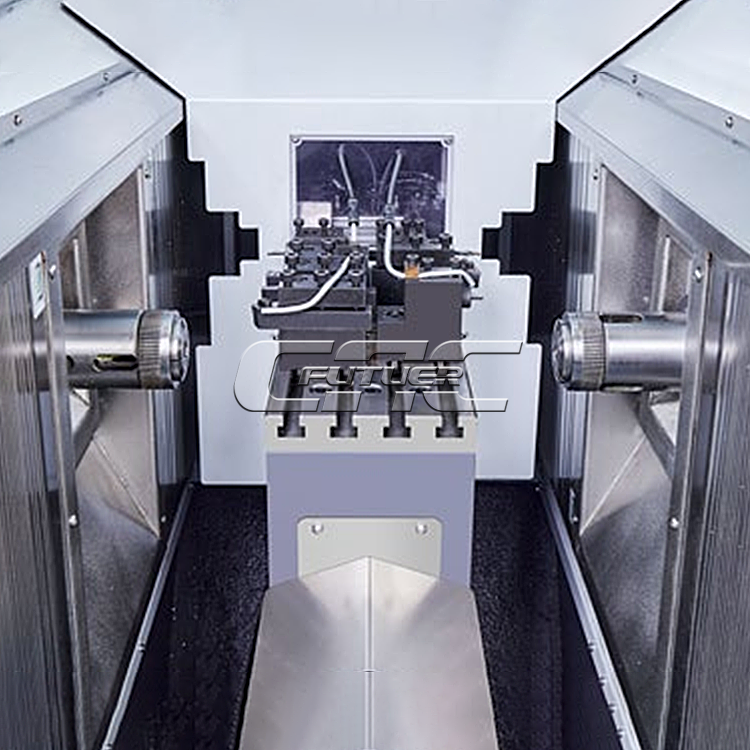

The machine features a horizontal-bed and dual-spindle design with a compact structure, small footprint, and efficient machining cycles. It is primarily designed for small copper or aluminum parts. The fully enclosed machining area effectively controls the adverse effects of chip splashing, making daily cleaning and maintenance easier and simpler, thereby reducing the workload for operators. With high automation compatibility, it can be flexibly integrated with various automation systems (e.g., gantry robots, articulated robots, simple automation, etc.).

Product Description

TECHNICAL SPECIFICATIONS

Maximum rotation diameter of the machine (mm)	Φ320
Power of the spindle motor (kW)	4KW
Form of the spindle head	A2-4
Maximum spindle speed (rpm)	4000r/min
Spindle through-hole diameter (mm)	Φ36mm
Bar diameter (mm)	Φ25mm
X1、x2 Axis limit stroke	700mm
Z1、Z2 Axis limit stroke	250mm
X1、x2/Z1、Z2 Axis connection method	Direct connection type
X1、X2/Z1、Z2 Axis lead screw specification	3210
X1、X2/Z1、Z2 Axis linear rail specification	Type 30 with flange
Maximum rapid traverse of X1、X2/Z1、Z2 axis (m/min)	24m/min
Repetitive X1、X2/Z1、Z2 positioning accuracy of the machine (mm)	0.005mm
Tool positions	Single-row knife 5-position, two-row knife 10-position (excluding the integral knife rest)
Tool holder center height (mm)	65mm
Overall dimensions (length * width * height) (mm)	230017002000mm
Machine weight	3800KG

All load-bearing transmission components of the equipment—such as the integrated base, saddle, and spindle box are made of HT300 cast iron. Transmission parts (ball screws, linear guides, and sliders) use Taiwan HIWIN/PMI brands, and all bearings are from Japan’s NACHI. The spindle adopts a high-precision sleeve-type design, with spindle bearings from Japan’s NTN/Koyo. The standard control system is the Taiwan LNC 5800 model, and the servo motors and drives are supplied by VEICHI.
