STB36 Double-spindle CNC lathe (vertical-horizontal type)

STB36 Double-spindle CNC lathe (vertical-horizontal type)

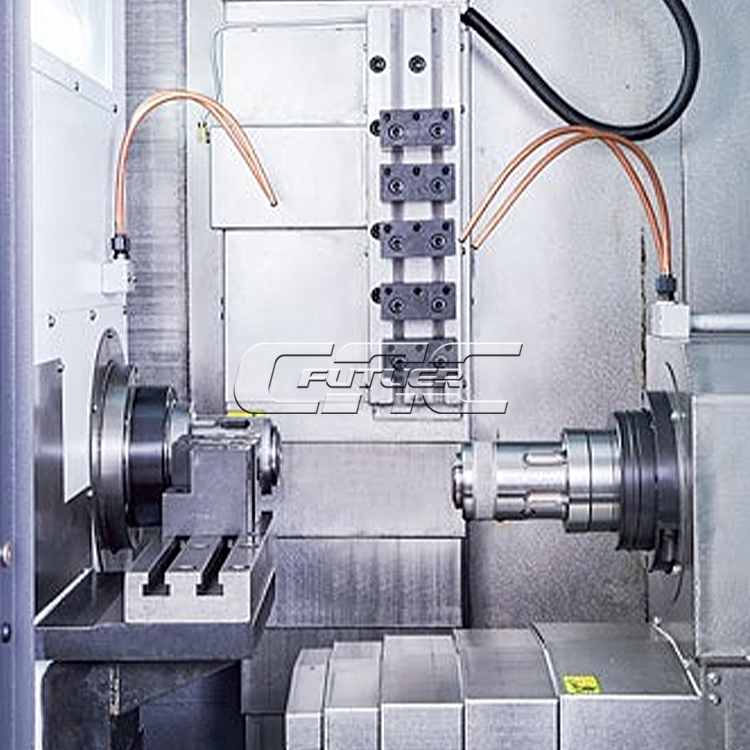

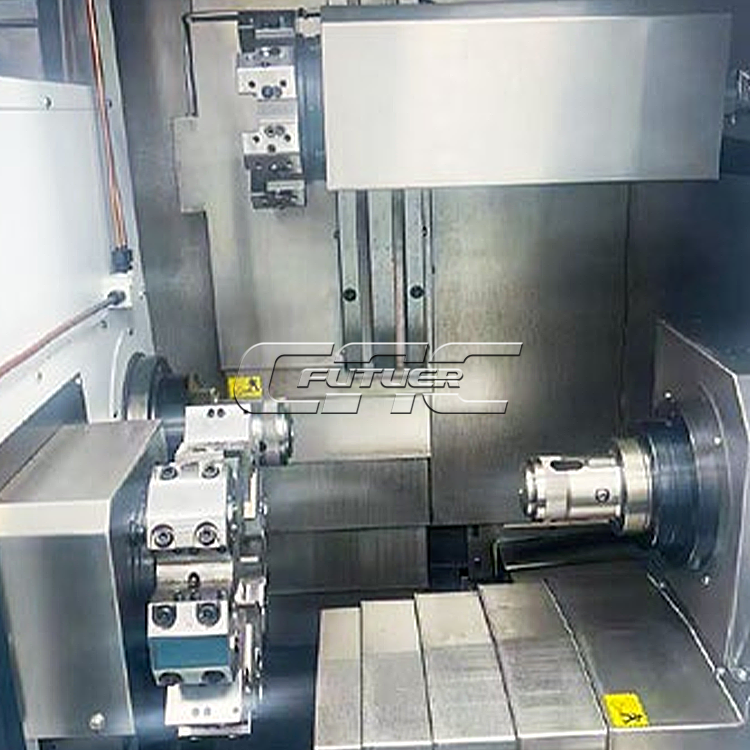

The equipment layout features a vertical gang-type tool arrangement for the main spindle and a horizontal gang-type tool arrangement or an 8-station servo turret for the sub-spindle. The main spindle is fixed, while the sub-spindle moves along the X and Z axes. It can be equipped with various types of long-bar feeders and is suitable for machining complex turning-process workpieces. The compact structure enables a faster machining rhythm, effectively improving production efficiency.With a "raw material in, finished product out" workflow, the process flow is simplified, achieving efficient centralized production management.

Product Description

TECHNICAL SPECIFICATIONS

Maximum rotation diameter of the machine (mm)	Φ350mm
Maximum spindle speed (rpm)	Main shaft 4000r/min, auxiliary shaft 5500r/min (electric main shaft)
Maximum rotational diameter (mm)	Φ100mm
Y/Z1 axis stroke (mm)	930/200mm
X/Z2 axis stroke (mm)	600/345mm
Rapid feed on Y, X/Z axes (m/ min)	20/20m/min
Spindle head form	Main shaft A2-4, auxiliary shaft A2-4
Diameter of the main shaft through hole (mm)	<Φ45mm
Diameter of the through hole of the pull rod (mm) method	<Φ35mm
Spindle servo motor power (KW)	Main shaft is 5.5kw and the auxiliary shaft is 5.5kw
Cooling pump power (W)	450W
X/ Z-axis positioning accuracy	0.005mm
X/ Z-axis repeat positioning accuracy	0.005mm
Machining accuracy (mm)	IT6(0.01)
Ellipticity (mm)	0.007mm
Knife rest form	System 1: Row tool/System 2: Servo tool turret, power tool turret, row tool
Cutting tool cross-section (mm)	20*20mm
Boring tool bar diameter (mm)	Φ20mm
Dimensions (L * W * H) (mm)	262020001950mm
Total weight of the machine tool (KG)	4000KG

All load-bearing transmission components of the equipment—such as the integrated base, saddle, and spindle box are made of HT250 cast iron. The ball screws are from Taiwan HIWIN/PMI, linear guides from HPTM, and bearings from Japan’s NACHI. The main spindle is a high-precision sleeve-type spindle, while the sub-spindle is an electric spindle. The control system is Taiwan LNC 5850D, and the servo motors are supplied by VEICHI or DEALOUR.
