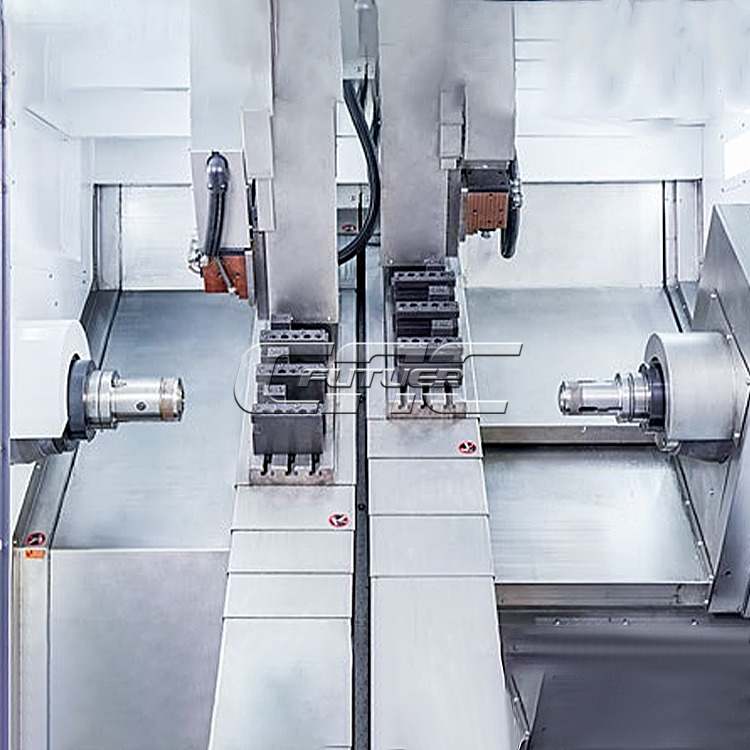

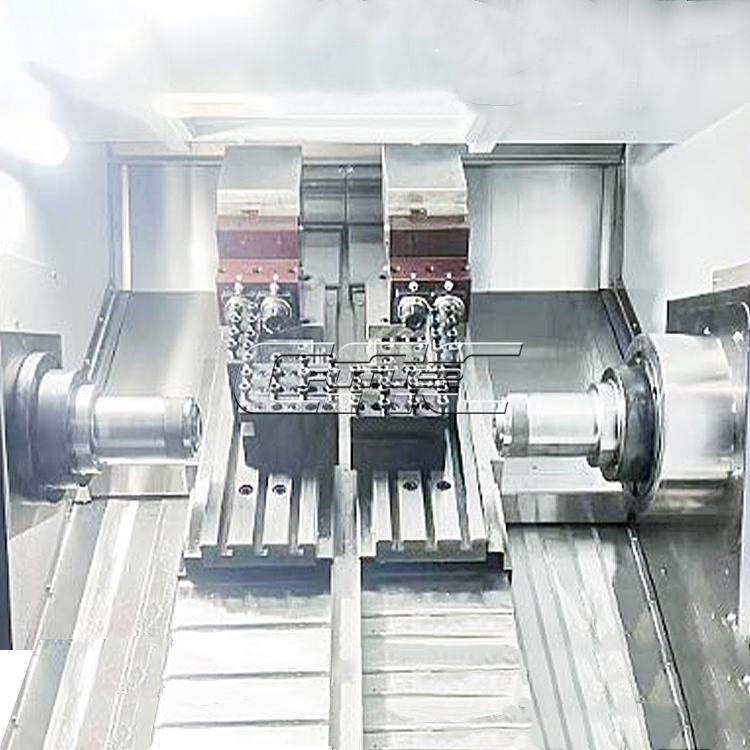

The machine adopts an inclined-bed and dual-spindle structure. The fully enclosed design prevents chip accumulation,and equipped with an automatic chip conveyor, it eliminates the need for manual cleaning inside the machine. The main spindle is fixed while the sub-spindle moves to follow during machining, making it better suited for long bar material processing and ensuring concentricity. With an X-axis travel of up to 1350 mm, the machine can accommodate various special process extensions (such as fly cutter disks and 3+3 power heads), enabling complex workpieces to be completed in a single setup.

Product Description

TECHNICAL SPECIFICATIONS

Maximum rotation diameter of the machine (mm)	Φ600mm
Maximum spindle speed (rpm)	4500r/min
Maximum rotational diameter (mm)	Φ160mm
Y/Z1 axis stroke (mm)	1350
X/Z2 axis stroke (mm)	Effective processing stroke: 200
X1, X2/Z1, Z2 axis rapid feed (m/min)	X1、X2 ：26m，Z1、Z2 ：20m
Form of the spindle head	Main shafts are A2-6 and A2-5, and the auxiliary shafts are A2-5 and A2-4
Spindle through-hole diameter (mm)	<Φ52mm
Diameter of the through hole of the pull rod (mm)	<Φ46mm
Power of the spindle motor (kW)	Main shaft is 11kw and 7.5KW, and the auxiliary shaft is 7.5KW and 5.5KW
Cooling pump power (W)	450W*2
X/ Z-axis positioning accuracy	0.005mm
X/ Z-axis repeat positioning accuracy	0.005mm
Machining accuracy (mm)	IT6(0.01)mm
Ellipticity (mm)	0.005mm
Knife rest form	Knife rack can hold 17 knife holders when fully loaded
Cutting tool cross-section (mm)	20*20mm
Boring tool bar diameter (mm)	Φ20mm
Dimensions (L * W * H) (mm)	L2600* W2000* H1950mm
Total weight of the machine tool (KG)	4500KG

The equipment features an integrated 35° slant-bed structure, with all cast components made of HT300 cast iron. Transmission parts (ball screws, linear guides, and sliders) are sourced from Taiwan HIWIN/PMI brands, while bearings are supplied by Japan’s NACHI. The spindle can be optionally configured as a disk-type motor spindle or a built-in electric spindle according to production requirements. Control system options include Taiwan LNC 5850D or SYNTEC 22TB.
