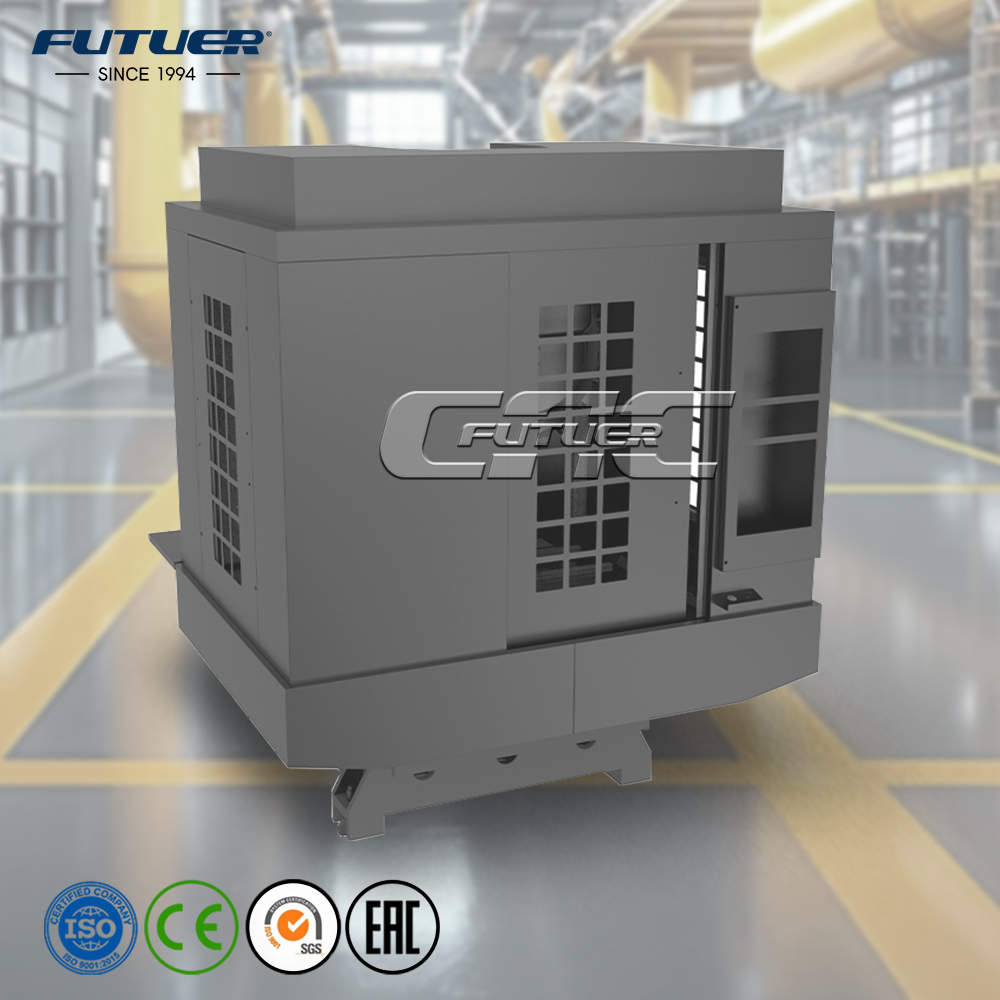

MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) | Remarks |
| 1 | Effective travel of the X-axis | mm | 600 | |
| 2 | Effective travel of the Y-axis | mm | 400 | |
| 3 | Effective travel of the Z-axis | mm | 300 | |
| 4 | Bed dimension | mm | 700*420 | |
| 5 | T-slot(width*number of slots*spacing) | mm | 14*4*120 | |
| 6 | The distance from the center of the spindle to the column | mm | 490 | |
| 7 | The distance from the nose end of the spindle to the worktable surface | mm | 130-590 | |
| 8 | Main shaft specification | RPM | KD0812 | Diameter 100 |
| 9 | Speed of mainshaft | KM | 20000 | |
| 10 | Spindle motor | m/min | ||
| 11 | X/Y/Z(G00)Rapid Feed | mm/min | 48 | |
| 12 | G01cutting feed | kg | ||
| 13 | Maximum load(evenly distributed) | mm | ||
| 14 | Positional accuracy | mm | ||
| 15 | Repeated positioning accuracy | |||
| 16 | X-axis lead screw | R28/16 | ||
| 17 | Y-axis lead screw | R28/16 | ||
| 18 | Z-axis lead screw | R32/16 | ||
| 19 | X-axis rail | 30 balls | 4 Slider-Standard | |
| 20 | Y-axis rail | 30 balls | 4 Slider-Standard | |
| 21 | Z-axis rail | 30 balls | 4 Slider-Standard |
