TC series machine tools through special structural design, maximizethe function of the machine while maximizing the use c cost-effectiveequipment and achieve small specifications of high quality parts, stableprocessing; Through the new layout of tool post , the invalid machiningtime ( non-cutting time ) can be maximized and the machining efficiencycan be greatly improved.
MACHINE DETAILS

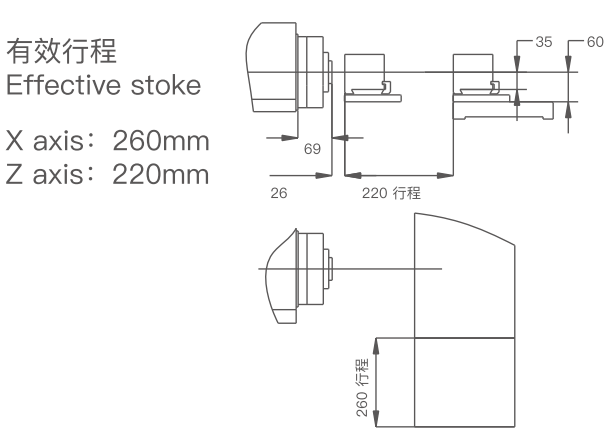

Equipment details and standard size related parameters
TECHNICAL SPECIFICATIONS
Spindle Standard Configuration
项目item |
TC20A |
TC30A |
|
加工能力 |
弹簧夹头最大加持直径Max. spring collet holding diameter |
Ø20mm |
Ø30mm |
床身上最大回转直径Swing over bed |
Ø240mm |
Ø260mm |
|
刀板底座上回转直径Swing over cross slide |
Ø110mm |
||
最大加工直径Max. machining diameter |
Ø100mm |
||
最大加工长度Max. machining lenath |
100mm |
||
快进速度 |
主軸最高转数Max. Main spindle speed |
8000r/min |
|
主軸通孔直径Main spindle through-hole diameter |
Ø22.5mm |
Ø32.5mm |
|
回转速度变化Number of spindle ranges |
无极 |
||
|
快进速度 Rapid traverse |
30m/min |
||
电机 |
主軸功率 Main spindle motor |
3.7/5.5kw |
|
|
进给电机 Feed motor |
0.75kw |
||
|
冷却电机功率 Coolant motor |
130w |
||
机床精度 |
定位精度 Positioning accuracy |
0.005 |
|
重复定位精度Pepeat positioning accuracy |
0.002 |
||
|
总电气容量 Required electric power |
6kVA |
||
|
快移速度（Rapid feed rate） 功率 Power |
995mm |
||
|
外形尺寸(长*宽*高) Dimensions of Machine |
1475*1170*1420 |
||
|
机床重量 Weight |
1100kg |
||
