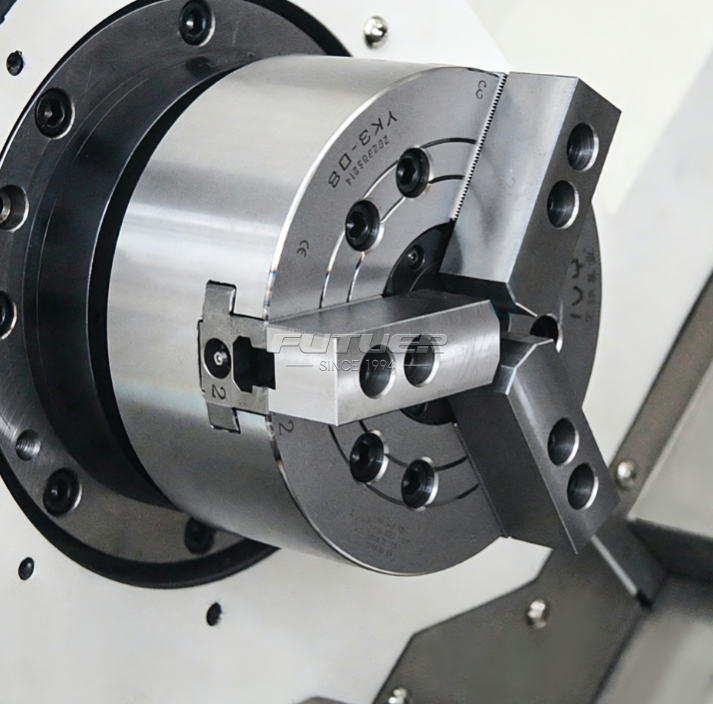

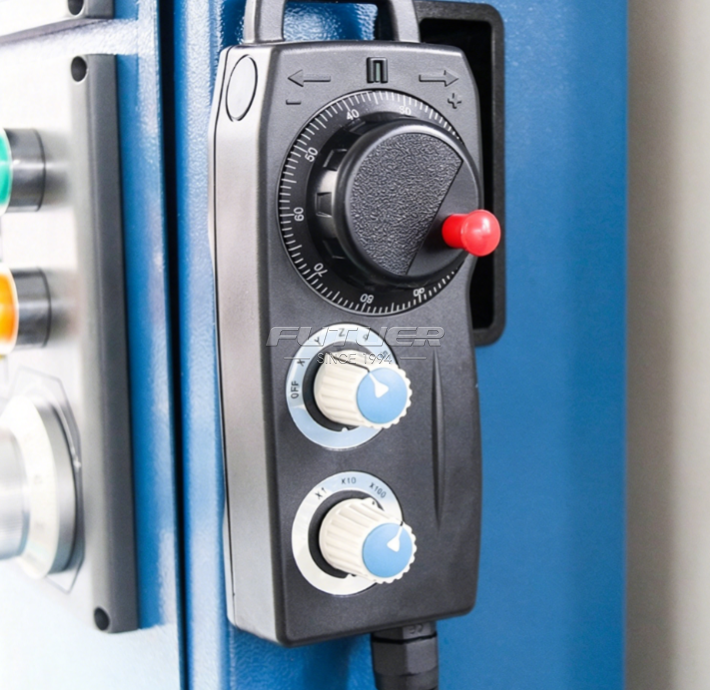

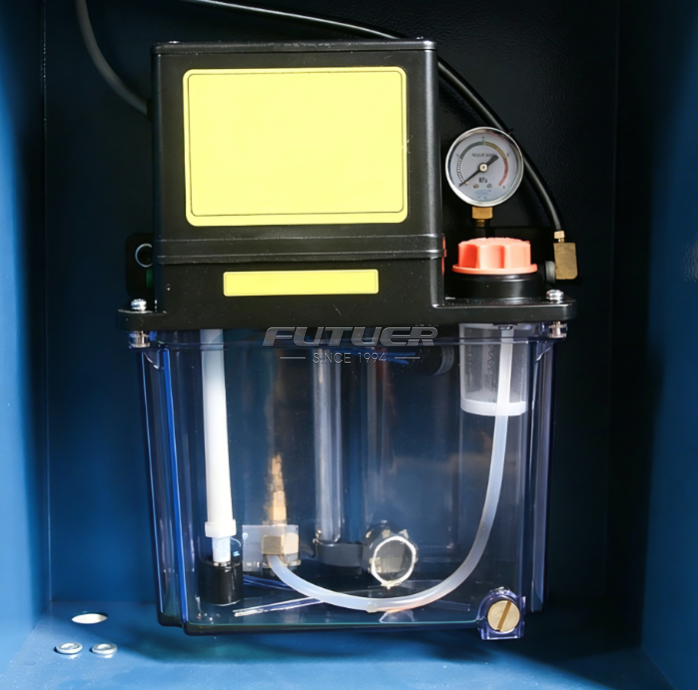

1. 高速主轴单元，搭配中空液压卡盘和油缸 / High-speed spindle unit,with hollow hydraulic chuck and cylinder
2. 高刚性床头箱 / High rigidity spindle box
3. 标配液压移动尾座 / Standard with hydraulically moved tailstock

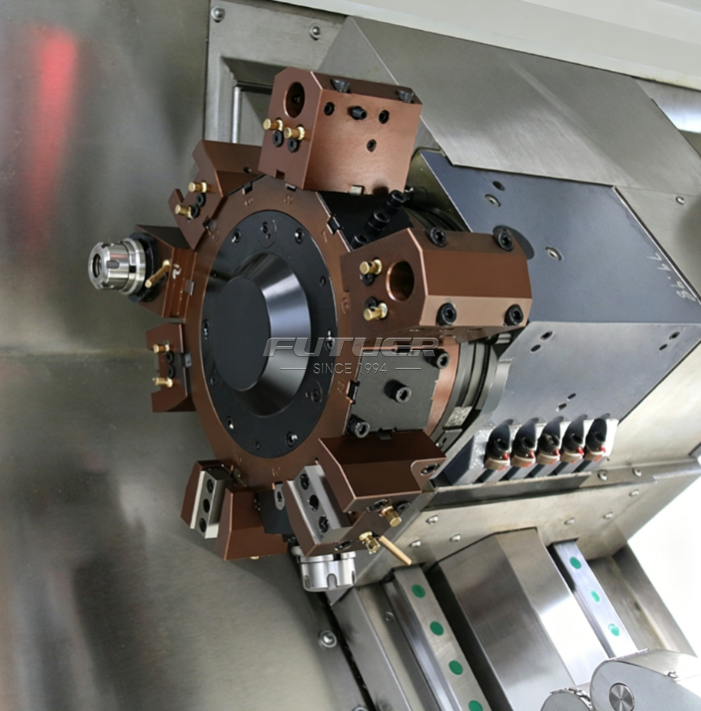

4. 标配 Y 轴 12 工位动力刀塔 / Standard: 12 station power turret with Y axis
5.X/Z 轴均采用台湾线轨，63/80 可选配硬轨 / X/Z axis adopts taiwan linear rails, Optional : Hard guideway
6. 采用台湾 / 南京滚珠丝杠 / Using taiwan / Nanjing ball screw
7. 采用进口丝杆轴承 / Adopt imported brand screw rod
8. 可选配伺服电机驱动编程尾座 / Optional with programmable tailstock driven by servo motor
9. 尾座移动采用台湾滚柱线轨，63/80 可选配硬轨 / Tailstock movement adopts taiwan roller linear rails, Optional : Hard guideway
10.45° 整体斜床身结构 / 45° integral slant bed structure
| Product features | ||
| SPECIFICATIONS | Units | TCK56Y |
| Swing over bed | mm | 560 |
| Max.workpiece length | mm | 500/1000 |
| Max.cutting diameter | mm | 310 |
| Spindle bore | mm | 65 |
| Spindle nose type | A2-6(Opt.A2-8) | |
| Spindle speed steps | 无级Stepless | |
| Spindle speed range | rpm | 50-4500 |
| Chuck | - | 8寸中空液压卡盘(可选10寸) 8"Hollow hydraulic chuck (Opt .10") |
| X axis travel | mm | 200 |
| Y axis travel | mm | ± 50 |
| Z axis travel | mm | 450/900 |
| X axis rapid traverse | mm/min | 30 |
| Y axis rapid traverse | mm/min | 12 |
| Z axis rapid traverse | mm/min | 30 |
| Main motor power | kw | 11/15 |
| Turret type | 12工位动力刀塔 12 Station power turret |
|
| Turret Model | BMT45-ER25 | |
| Tailstock quill taper | - | MT4(Opt.MT5) |
| Tailstock base travel | mm | 400/900 |
| Guide rail type | - | 斜床身线轨 Slant bed linear rail |
| Machine weight | kg | 4800/6500 |
