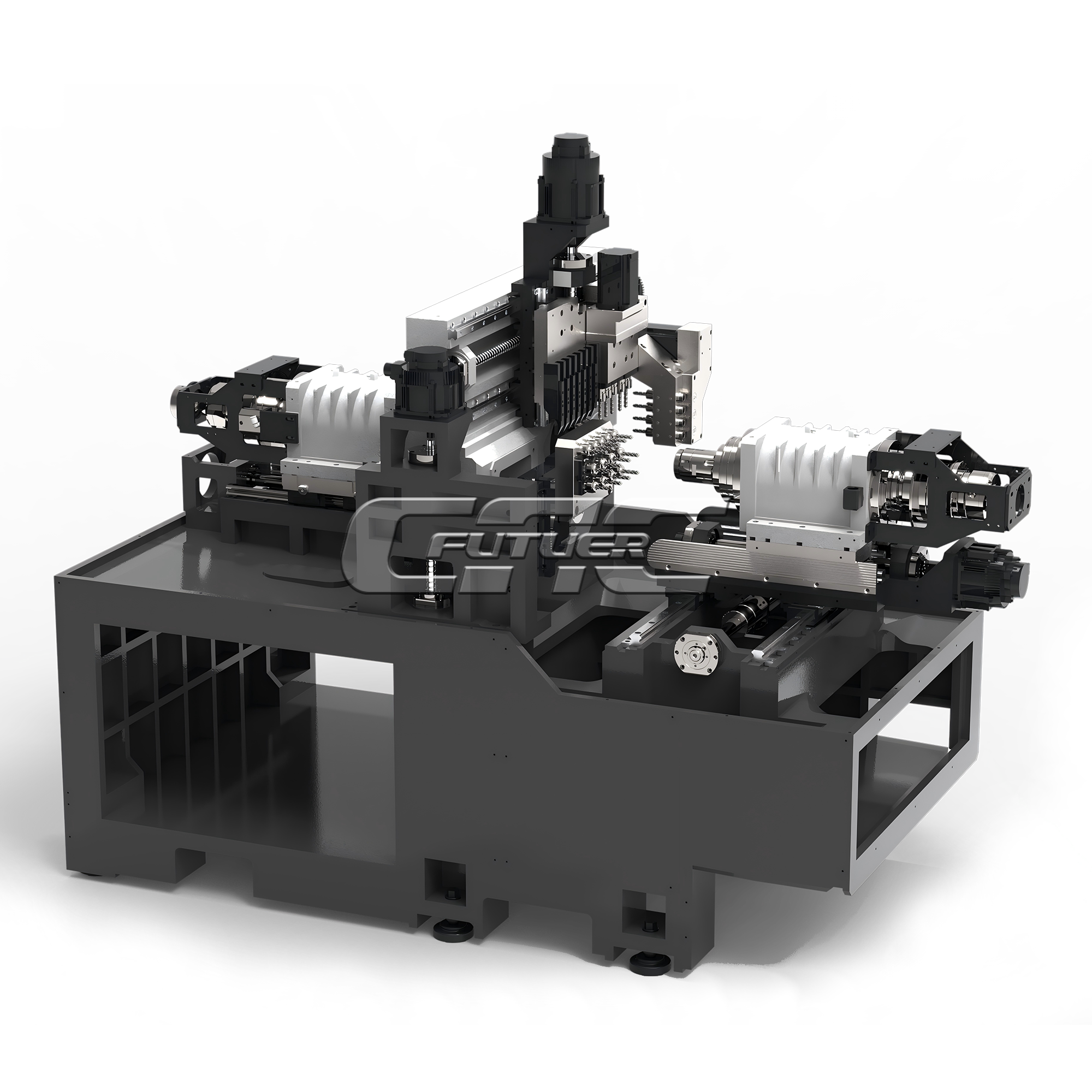

TD26 High-Rigidity CNC Lathe: 7mm Single-Pass Turning, 8.2KW High Power

TECHNICAL SPECIFICATIONS

Control system	System	FANUC/SYNTEC
Processing range	Fast movement speed	X-axes: 24 meters per minute; Other axes: 30 meters per minute
	Diameter of the bar stock held by the main/auxiliary spindle	Without guide sleeve φ3-φ35mmWith a guide sleeve φ28mm
	Maximum drilling diameter of the main spindle	φ12mm
	Maximum pitch diameter of the the main spindle	M10
	Maximum drilling diameter of the secondary spindle	φ8mm
	Maximum pitch diameter of the secondary spindle	M6
	Maximum drilling diameter of the side-milling power head	φ10mm
	Maximum tapping diameter of the side-milling power head	M8
Motorized spindle	Main/auxiliary shaft power	11KW/11KW
Motorized spindle	Main/auxiliary shaft maximum rotational speed	6000r/min
Fast headstock	Key-type movable guide sleeve stroke	220mm
Maximum movement amount	Without condom (optional)	360mm
Cutter	Number of cutting tools	7 pieces of 16*16mm
	Side-mounted power cutting tool	5 pieces of ER20 power cutting tools
	Maximum rotational speed of the power head	5500r/min
	Spindle end face tool	4 pieces of ER16 fixed drill rods plus 3 pieces of ER20 power cutting tools
	Secondary spindle end face tool	3 pieces of ER16 fixed cutting tools plus 3 pieces of ER16 power cutting tools
Machine overall dimension	Dimensions (length, width, height)	270014501800mm
Machine tool weight	Weight	3600kg

This machine adopts a hydraulic clamping structure for the main spindle and auxiliary spindle (hydraulic rotating cylinder), which ensures that the workpiece will not come loose during drilling and heavy cutting;
It adopts an electric spindle structure with large bearings and good rigidity, and strong cutting capacity;
The maximum processing length of the main shaft in one operation is 220mm;
The one-sided U-shaped indexing structure ensures no chips are stuck during rough machining and turning;
It uses a double-nut structure with a 32mm large screw and a 25mm medium screw.It also uses a large guide rail: 30mm and 25mm, ensuring cutting rigidity, and the screw bearing seat is of a dedicated high-precision structure;
Each axis uses a high-power servo motor with a thrust of 1300W and 850W to ensure heavy cutting capacity;
The power head ER20 and ER16 have good rigidity for milling;the entire machine has a moving speed of 30m/min, high-speed cutting, and high efficiency;
Power heads S3, S4, and S5 can be applied in any direction with ease;
This machine is equipped with 25 tools, and additional plug-in power heads and cyclone milling heads can be installed as needed;
The machine body, motor frame, bearing seat, and auxiliary spindle table all adopt a combined structure to ensure a tight mechanical structure and a beautiful appearance.
