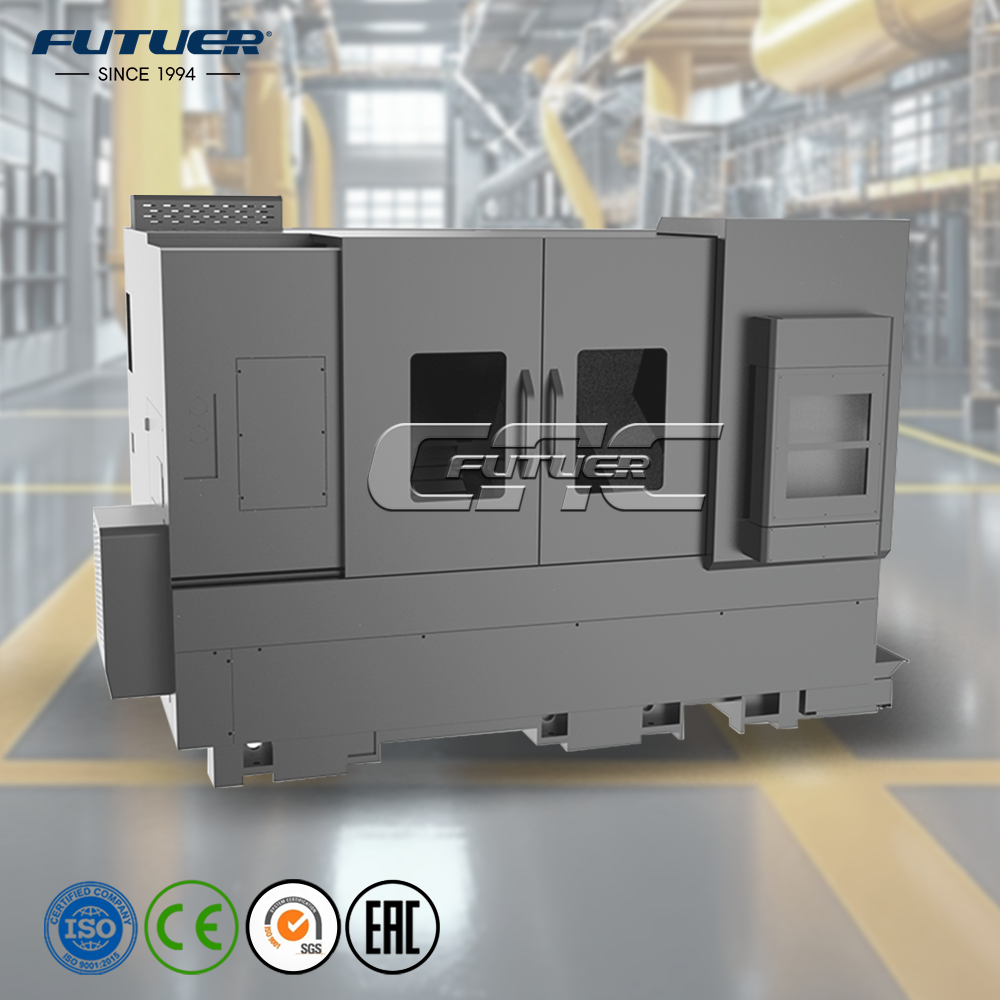

1250Y Turn-milling Composite Belt Tail Jacking Machine
MACHINE DETAILS
Equipment details and standard size related parameters
| Number | Project name | unit | Specification(Dimensions) | Remarks |
| 1 | The size of the tray surface | mm | 470*375 | |
| 2 | Z-axis travel | mm | 1250 | |
| 3 | X-axis travel | mm | 300 | |
| 4 | Maximum rotation of the optical mechanism | mm | 650 | |
| 5 | The distance between the center of the spindle and the surface of the base plate | mm | 170 | |
| 6 | The distance from the center of the main shaft to the ground | mm | 1200 | |
| 7 | Effective processing length | mm | 1000 | BMT45-15Y Workstation Tower |
| 8 | Maximum turning diameter | mm | 500 | |
| 9 | Spindle model (spindle diameter) | mm | ||
| 10 | Speed of mainshaft | RPM | A2-8/0-3500 | |
| 11 | The inner diameter of the main shaft | mm | A2-8/86/102 | |
| 12 | Specification of X.Z Ball Screw | 40*10/40*10 | ||
| 13 | X-type guide rail specification | 45 rollers | 4 Sliding block-Standard | |
| 14 | Z-type guide rail specification | 45 rollers | 4 Sliding block-Standard | |
| 15 | Main .X.Z Motor Connection Method | Synchronous belt/Direct coupling/Direct coupling | ||
| 16 | X.Z tailstock motor flange/stop ring | mm | 130/110 | |
| 17 | Optical machine dimensions(length,width,height) | mm | 2910*1345*1390 | |
| 18 | Total weight | T | Approximately 5.8T | |
| 19 | The method of installing the knife | BMT45-15Y Workstation Tower | ||
| 20 | Bed frame form and slope | Inclined bed 30 degrees | ||
| 21 | Tailstock | Linear guide tailstock 45 ball bearings | ||
| 22 | Tailstock advancement method | Servo propulsion | ||
| 23 | Tailwind journey | 900 | ||
| 24 | Tail tip model | MT5 |
