The SL-25 model features extended travel ranges in both the X and Z axes, combined with robust and precision-hardened linear guide ways. This setup offers an expansive working area for versatile tool arrangements, such as enabling the use of side-active tools on the X-axis.
|
CAPACITY |
|
|
Maximum turning diameter of bed [mm] |
Φ300 |
|
Rotary diameter on the drag plate [mm] |
Φ80 |
|
Turning Length [mm] |
Up to 180 |
|
Turning Diameter [mm] |
Bar Materials up to Ф25mm Single Work piece up to Ф50mm |
|
Bed Type |
30°Slant Bed |
|
TRAVELS |
|
|
Z Axis [mm] |
250 |
|
Z Axis Power [KW] |
0.75 |
|
X Axis [mm] |
500 |
|
X Axis Power [KW] |
0.75 |
|
Guideway Type |
25mm TAIWAN ball screw rod 25mm TAIWAN linear guideway |
|
Z/X Axis [m/min] |
Up to 25 |
|
Machining Accuracy [mm] |
±0.01 |
|
Surface roughness [μm] |
≤Ra 1.6 |
|
SPINDLE |
|
|
Spindle Nose |
ISOA2-4 |
|
Speed |
4000 RPM |
|
Clamping system |
Hydraulic |
|
TOOLS |
|
|
Gang Type Tool |
5 Gang Type Tool Holders |
|
Dimensions of turning tools [mm] |
16*16 |
|
CNC CONTROL |
|
|
Controller |
FUTUER CNC System Optional: GSK or SYNTEC |
|
POWER SUPPLY |
|
|
Spindle Motor Power [KW] |
3.7kw Servo motor |
|
Hydraulic Motor Power [KW] |
0.75 |
|
Cooling Motor Power [W] |
130 |
|
Voltage |
380V 50HZ |
|
DIMENSIONS |
|
|
Dimensions(L/W/H) |
1600mm*1240mm*1650mm |
|
Weight |
1500 kg |
Industrial-grade CNC lathes, with powerful spindles and high-quality 25mm linear guides from Taiwan, ensure perfect durability and repeatability.
The patented design of the 30°slant bed lathe optimizes the maximum working range with the smallest floor space.

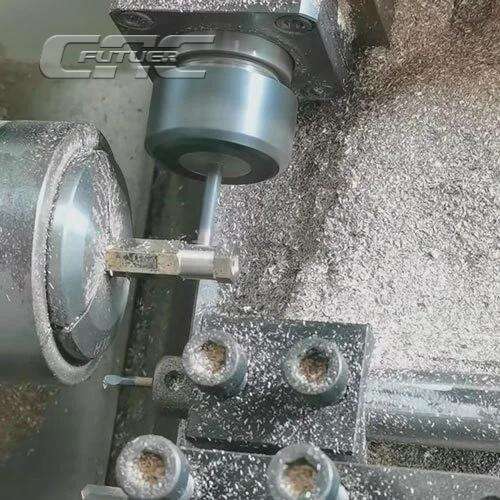

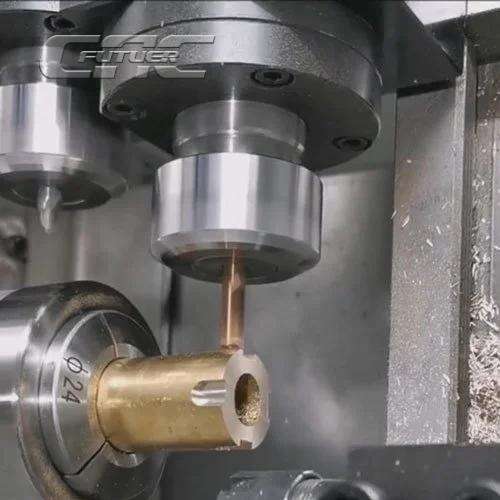

The X-axis travel has been increased to 500mm and the Z-axis travel to 250mm, providing the possibility of side-live tools for complex multi-task machining.

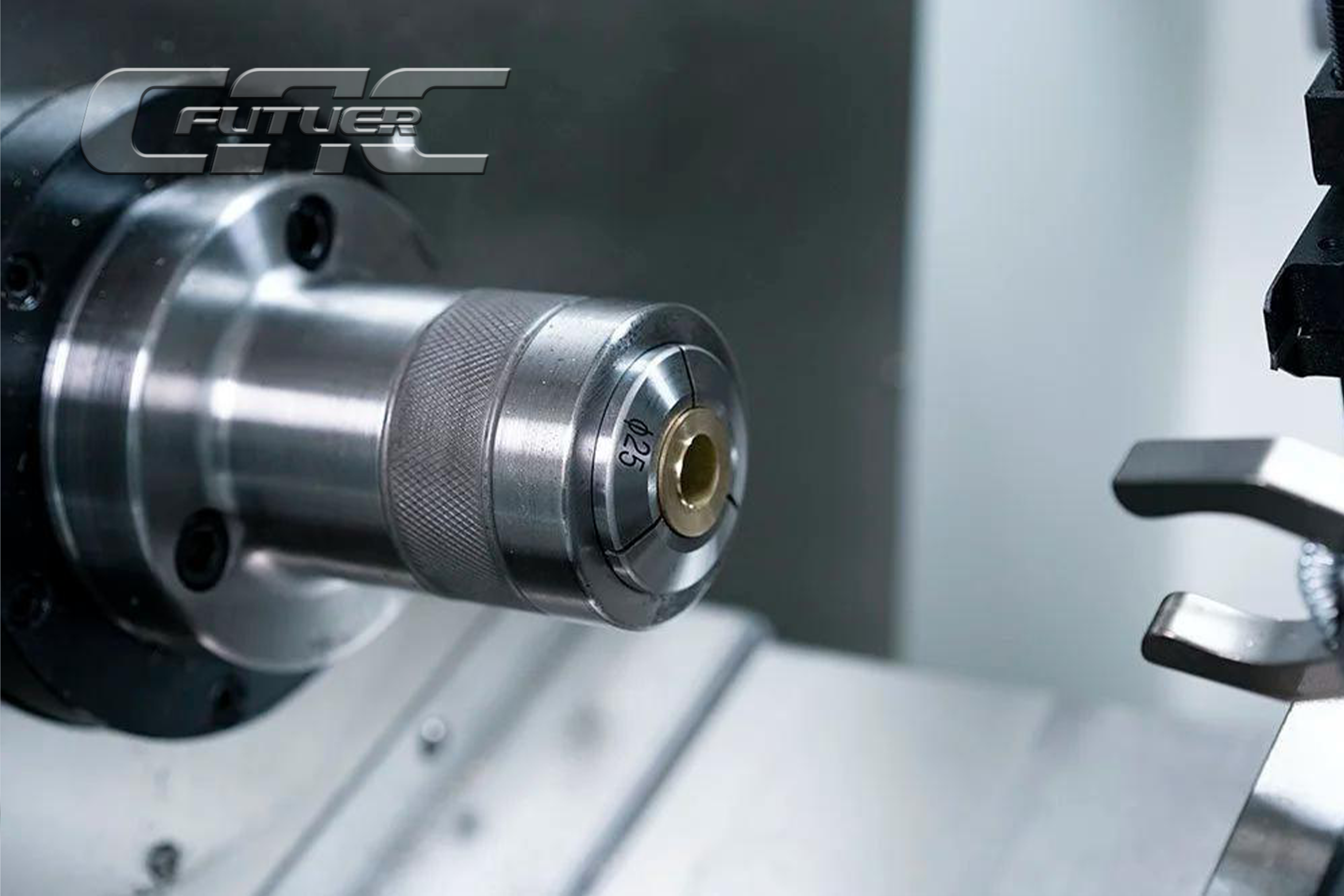

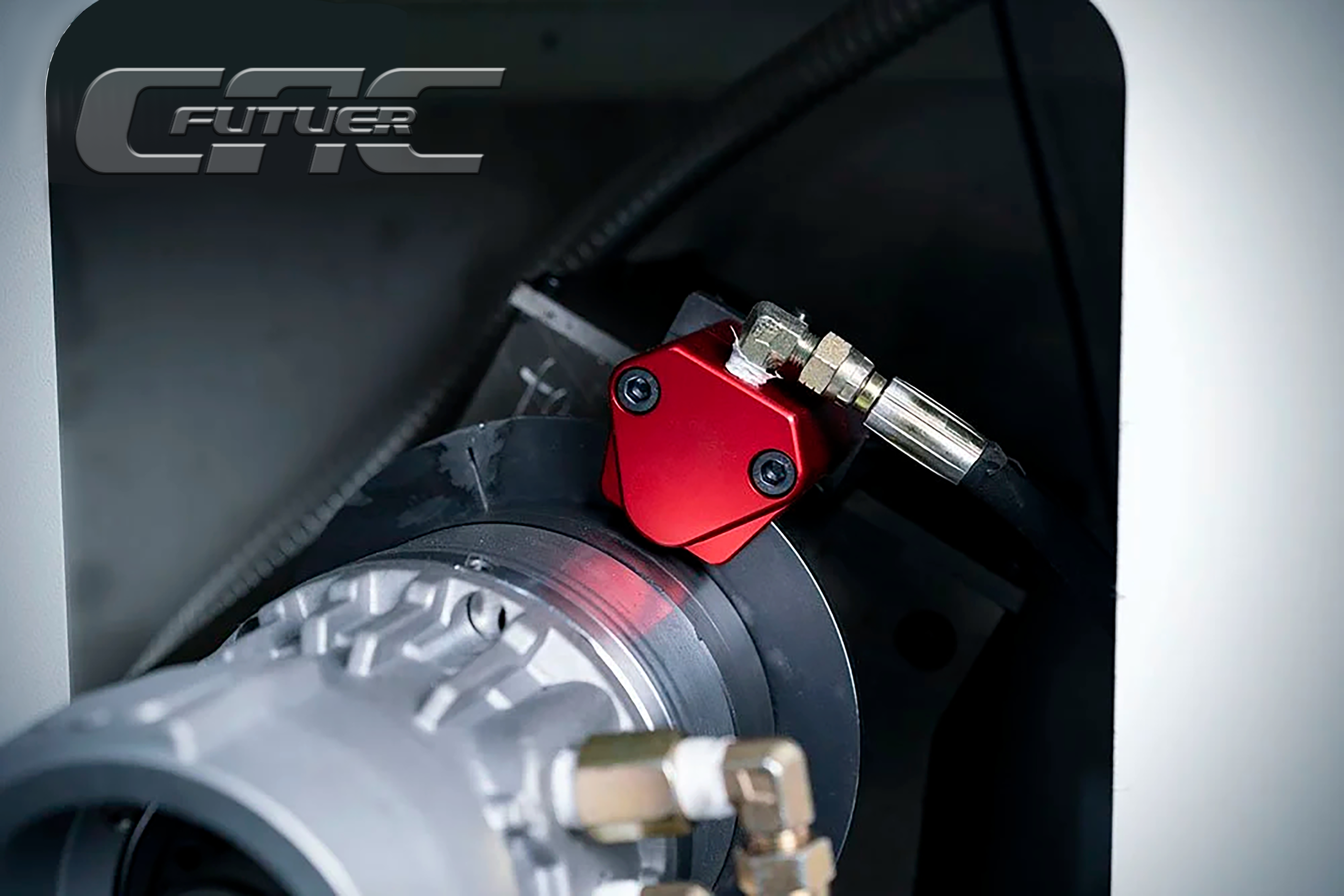

The hydraulic chuck adopts a through hole design, which not only ensures the firmness of the lathe fixture but also minimizes non-cutting time to the greatest extent.
The automatic lubrication and cooling system facilitates thermal control during the turning process.

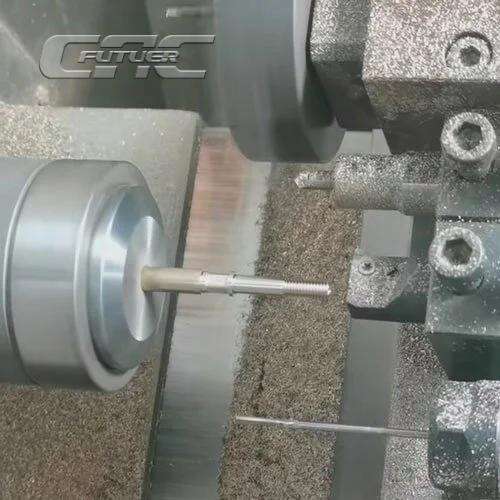

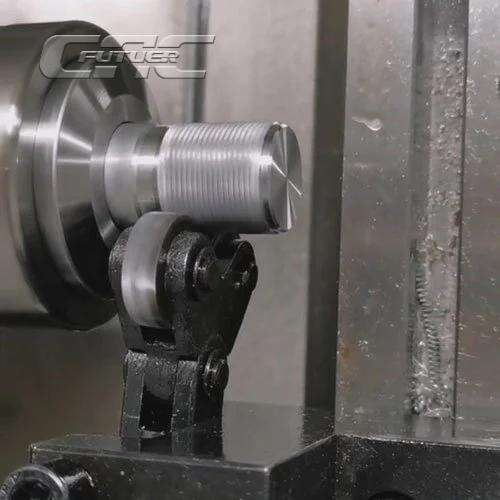

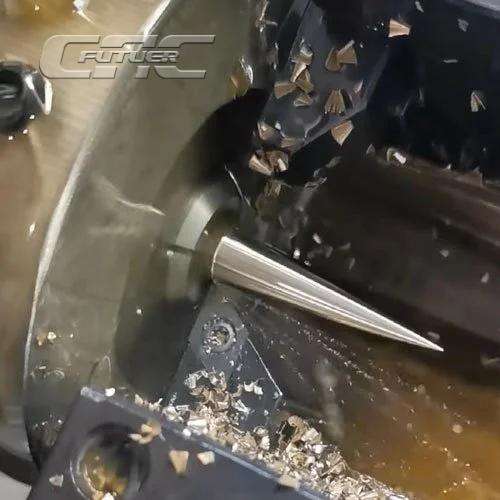

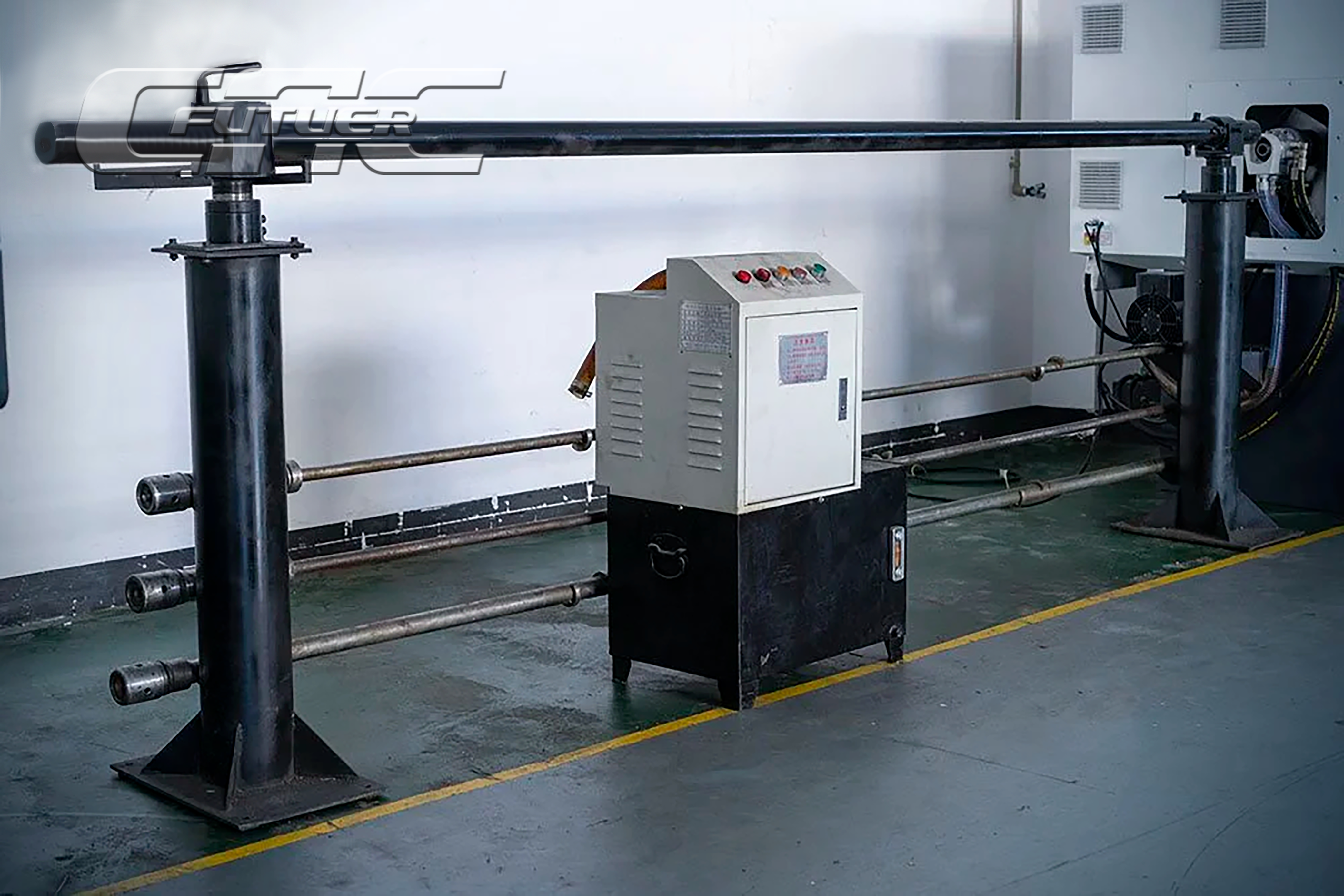

Optimized for High-Volume Production:

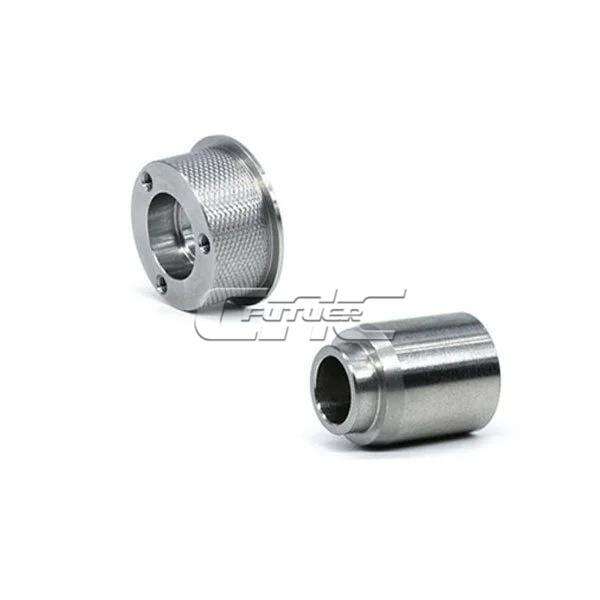

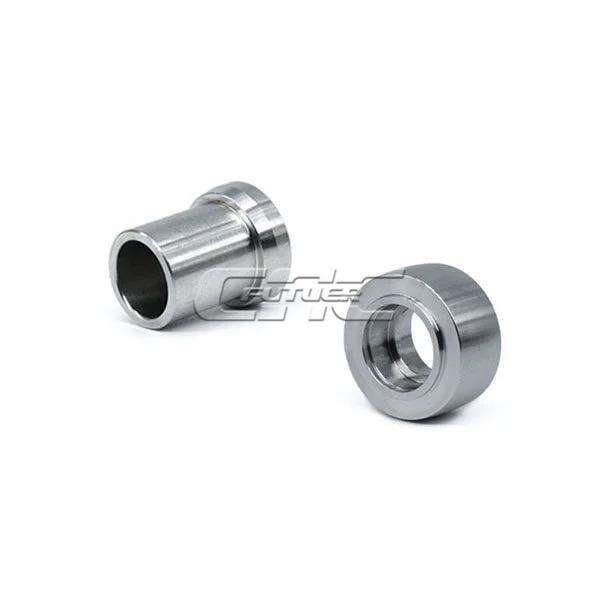

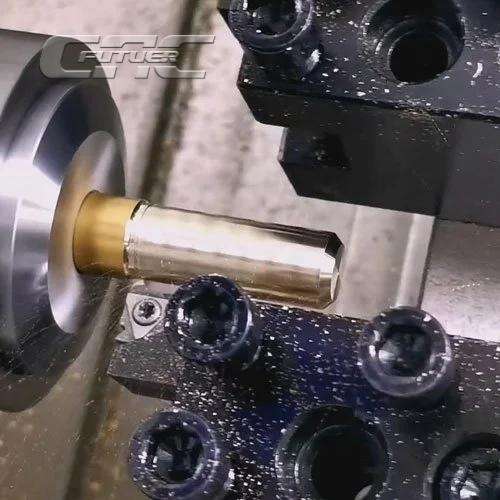

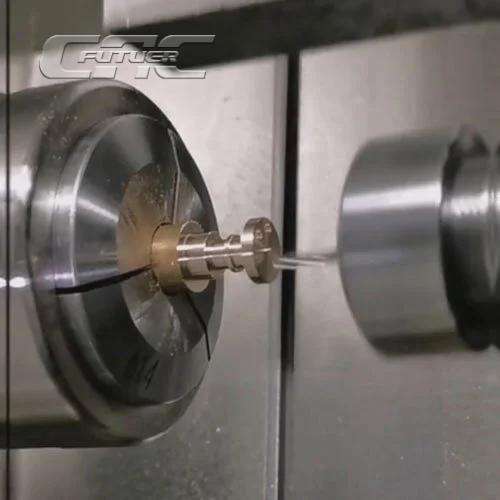

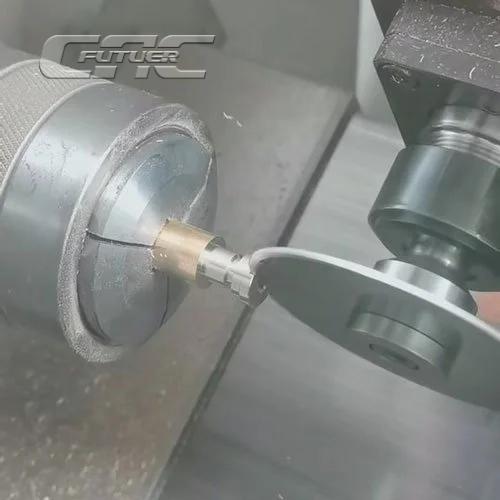

Components: Capable of mass-producing a wide range of parts including washers, bolts, shafts, rivets, spacers, sleeves, joints, and various fittings (stainless steel, pipe, lamp, wheel studs).
Materials: Suitable for copper, aluminum, steel, stainless steel, and rigid plastics.
Key Specifications:
Max. Single Workpiece Diameter: Ø40 mm
Max. Chuck Size: Ø350 mm
