Slant Bed CNC Lathe SL-52

The SL-52 milling and turning machining center features a spacious working space and a wide range of X/ Z-axis travel, making it easy to process more complex work pieces.

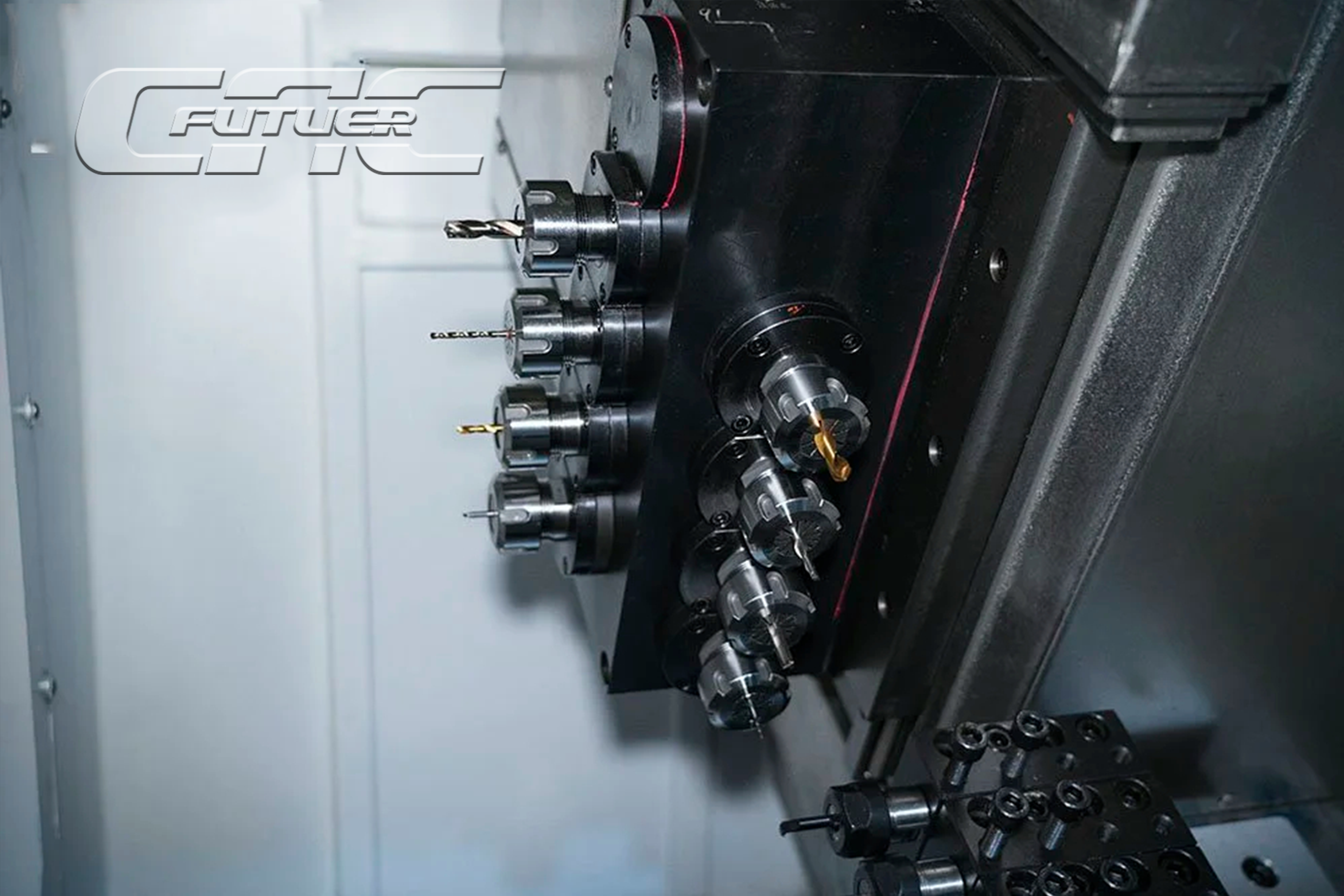

Match with rich tool combination, SL-52 helps improve machining accuracy and reduce clamping time.

The upgraded slant bed design increases the X-axis travel to 1000mm and the Z-axis travel to 400mm, reducing the machine tool's floor space and enhancing stability and the convenience of chip removal.

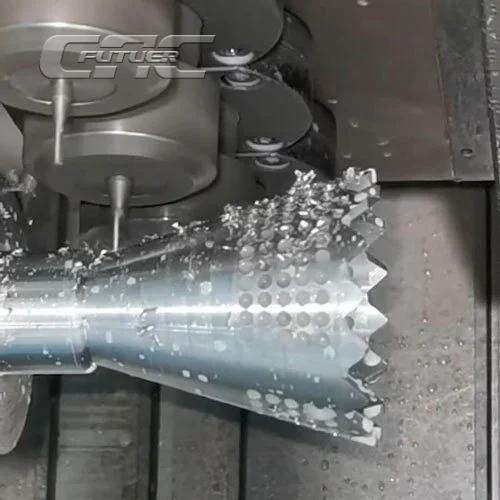

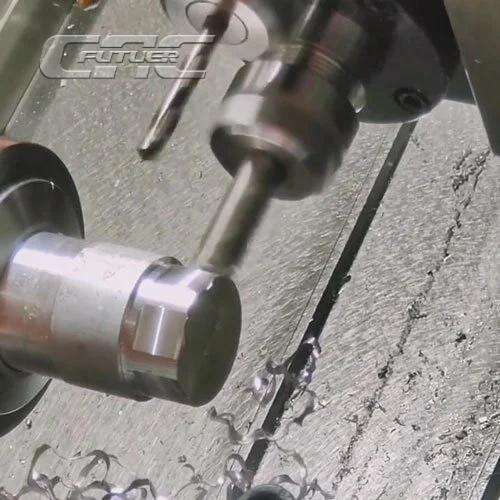

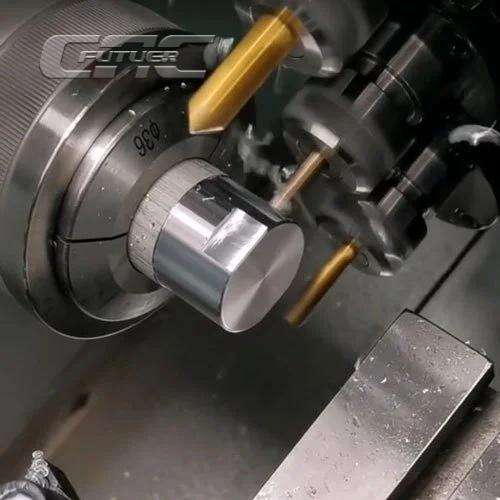

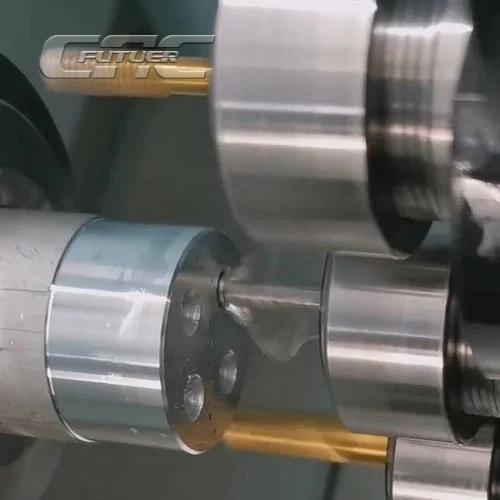

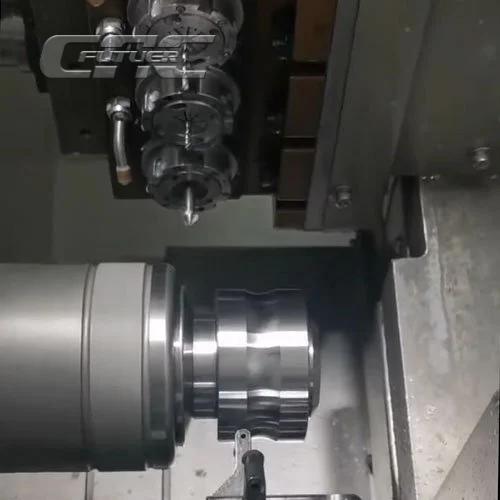

Most complex processing procedures such as turning and milling can be completed at one time, greatly reducing the processing time.

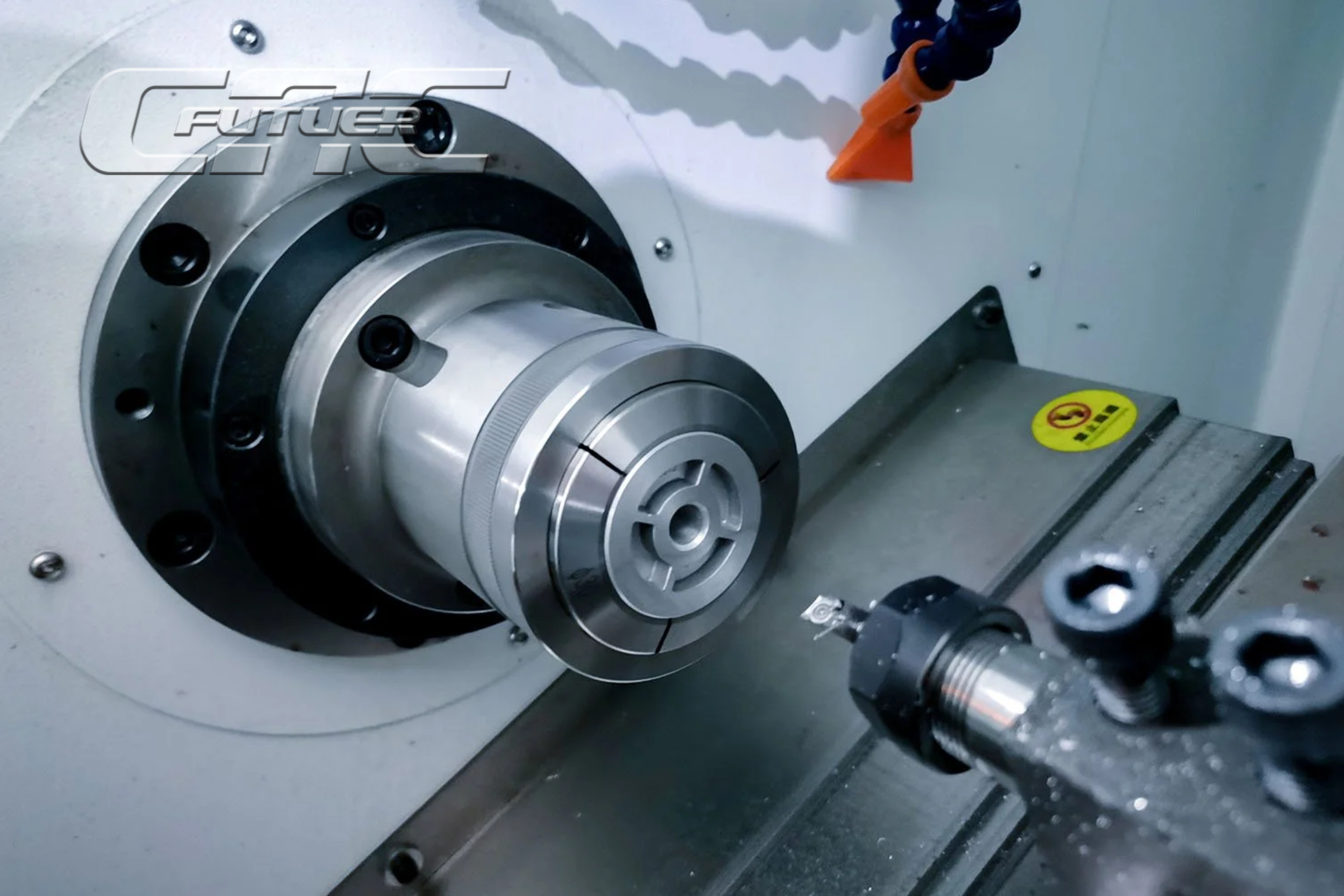

The spindle has a C-axis function, featuring high speed, high precision and low vibration, which can ensure the precise processing of work pieces. Each main shaft bearing assembly undergoes dynamic balance testing before installation to ensure stability during high-speed operation.

Equipped with 32mm ball screw guides and 32mm linear guides from Taiwan, it can provide high-precision and low-vibration tool rest movement.

Equipped with an automatic lubrication system, it ensures the smooth and durable transmission system.

The sturdy hydraulic spring chuck can hold bars with a maximum diameter of Φ46mm and individual work pieces with a maximum diameter of Φ50mm.

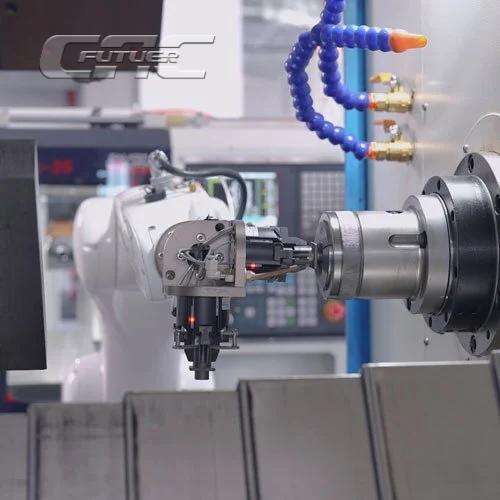

Automation solutions such as bar feeders, gantry feeding devices or robotic arms can be chosen.

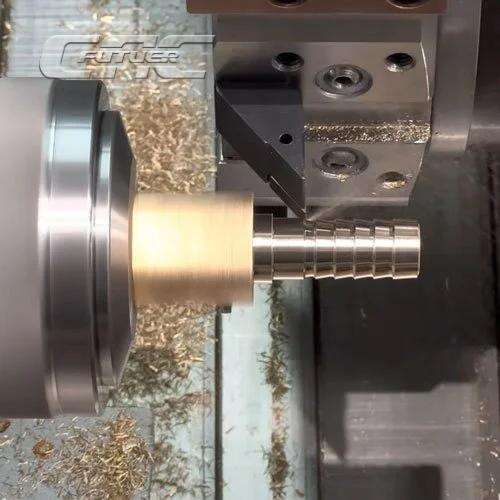

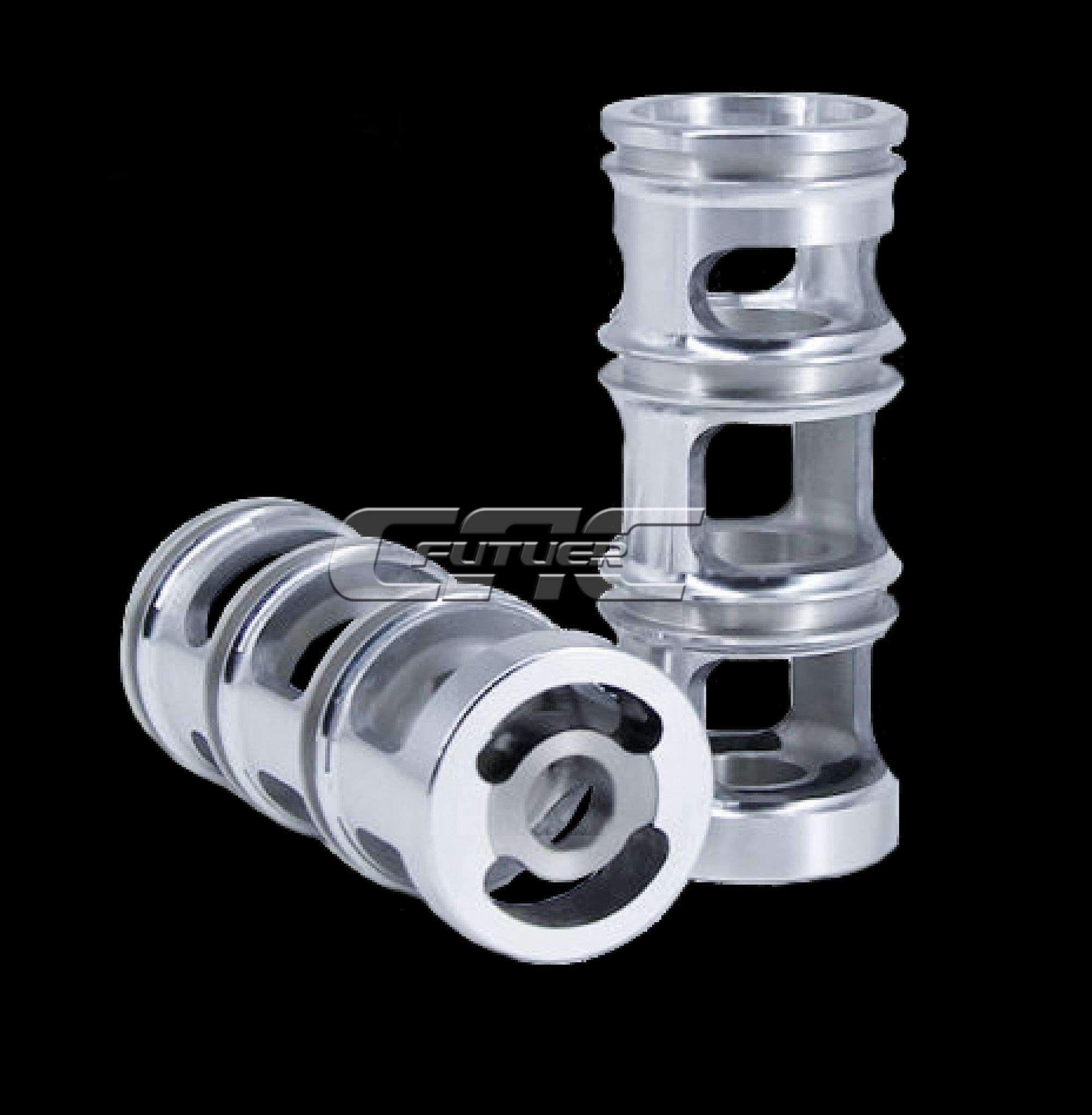

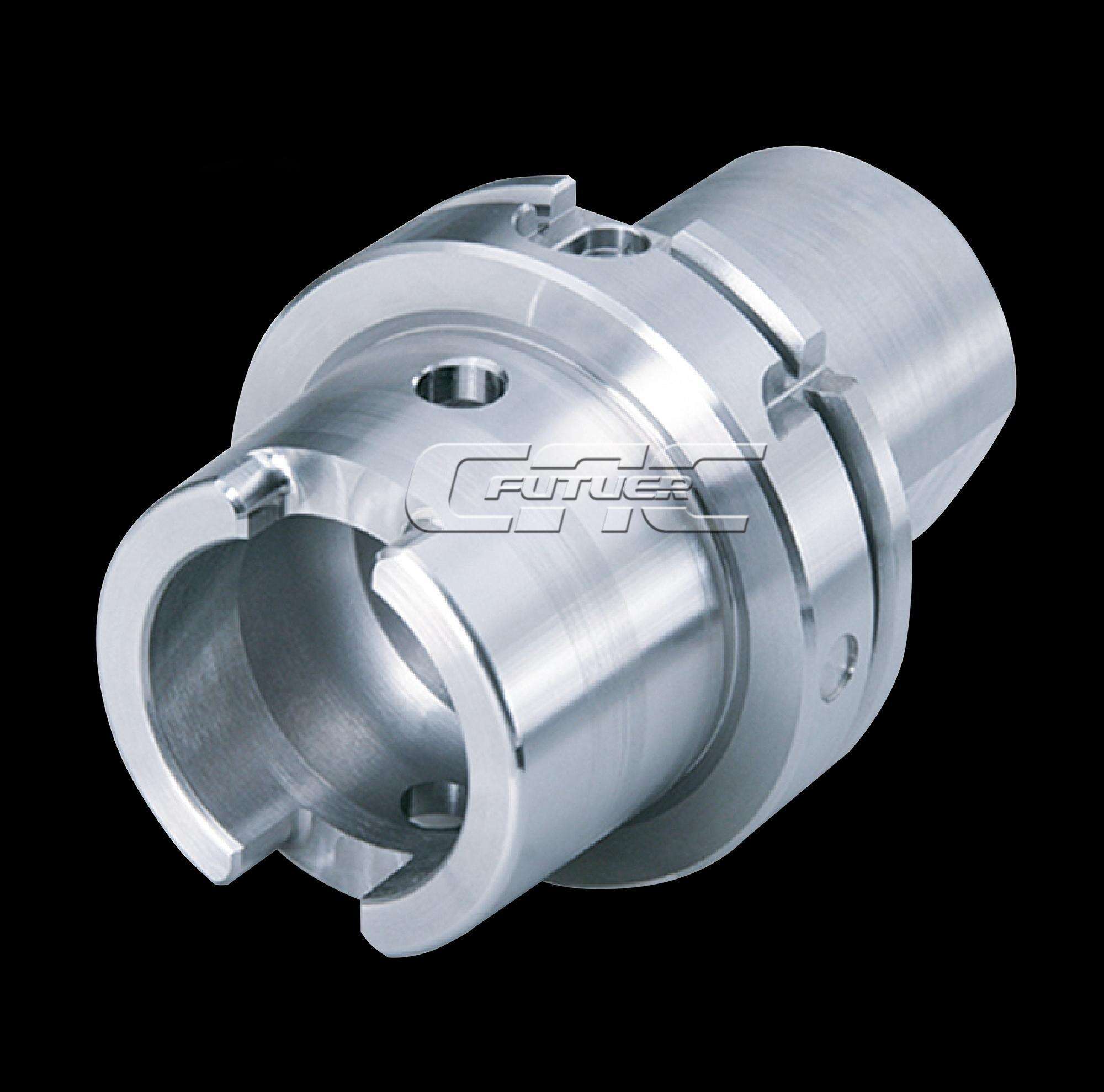

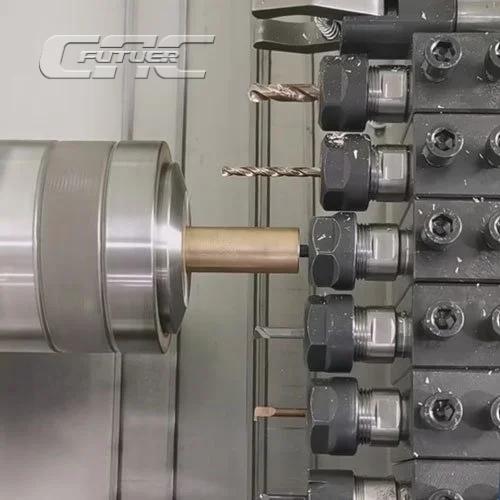

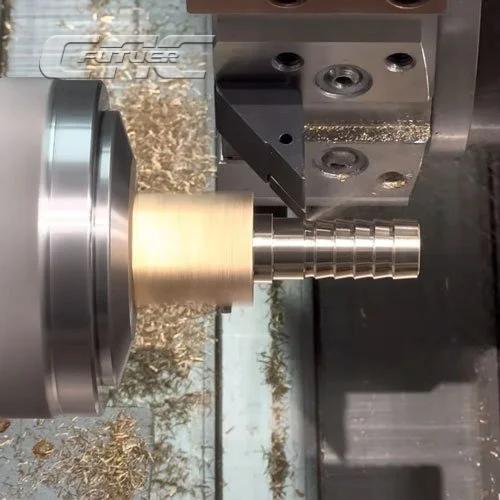

Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to Φ46 mm or single workpieces up to Φ50mm.
