STB25-36 Double-spindle CNC machine tool (double-table type)

STB25-36 Double-spindle CNC machine tool (double-table type)

The equipment is a slant-bed and double-spindle CNC lathe with a fully enclosed machining area that can be equipped with an automatic chip removal system,eliminating the need for manual cleaning. It comes standard with a built in dual-gantry robot, which occupies less space, offers faster response, shorter loading/unloading time, and lower maintenance costs compared with traditional separate robots—making it ideal for stable mass production of workpieces.Both the main and sub spindles are driven by their respective Z-axes, minimizing accumulated mechanical errors and achieving a docking accuracy within 0.01 mm. The specially designed integrated base structure effectively absorbs vibration generated during high-speed motion of transmission components, ensuring stable machining performance when both spindles operate simultaneously.

Product Description

TECHNICAL SPECIFICATIONS

Maximum rotation diameter of the machine (mm)	Φ320mm
Main and auxiliary shaft drive power (KW)	5.5KW*2
Main and auxiliary shaft head forms	A2-4
Maximum spindle speed (rpm)	4000r/min (electric spindle speed can reach 6000r/min)
Spindle through-hole diameter (mm)	Φ36/46mm
Bar diameter (mm)	Φ25/36mm
X1、x2 Axis limit stroke	860mm
Z1、Z2 Axis limit stroke	250mm
X1、x2/Z1、Z2 Axis connection method	Direct connection type
X1、X2/Z1、Z2 Axis lead screw specification	3210
X1、X2/Z1、Z2 Axis linear rail specification	Add a rectangular slider
Maximum rapid traverse of X1、X2/Z1、Z2 axis (m/min)	24m/min
Repetitive X1、X2/Z1、Z2 positioning accuracy of the machine (mm)	0.005mm
Tool positions	Integral knife rest
Tool holder center height (mm)	65mm
Overall dimensions (length * width * height) (mm)	230017002000mm
Machine weight (kg)	3700KG

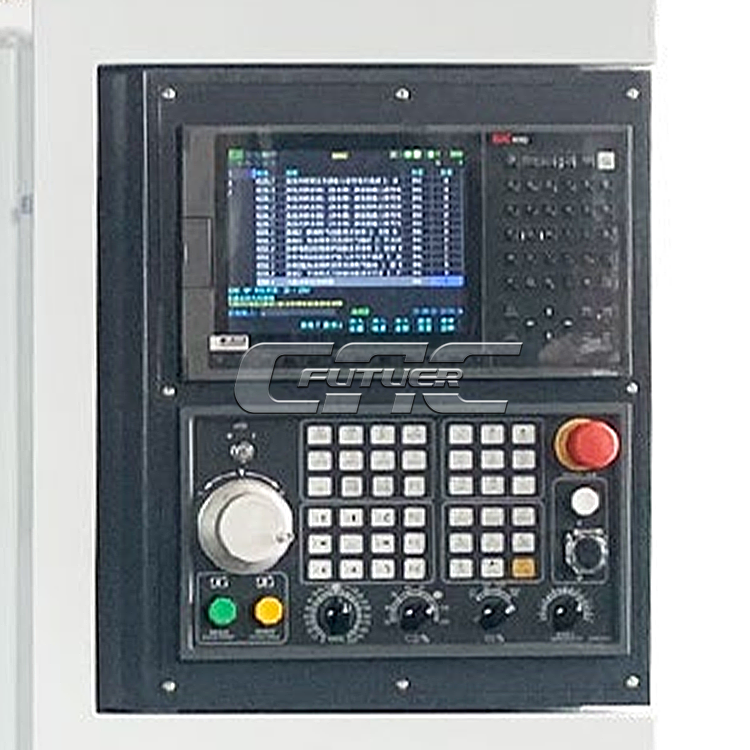

The equipment features an integrated 35° slant-bed structure, with all cast components made of HT300 cast iron. Transmission parts (ball screws, linear guides, and sliders) are sourced from Taiwan HIWIN/PMI brands, while bearings are supplied by Japan’s NACHI. The spindle can be optionally configured as a disk-type motor spindle or a built-in electric spindle according to production requirements. Control system options include Taiwan LNC 5850D or SYNTEC 22TB.
