STE46/52 Double-spindle double-tool-tower CNC lathe

STE46/52 Double-spindle double-tool-tower CNC lathe

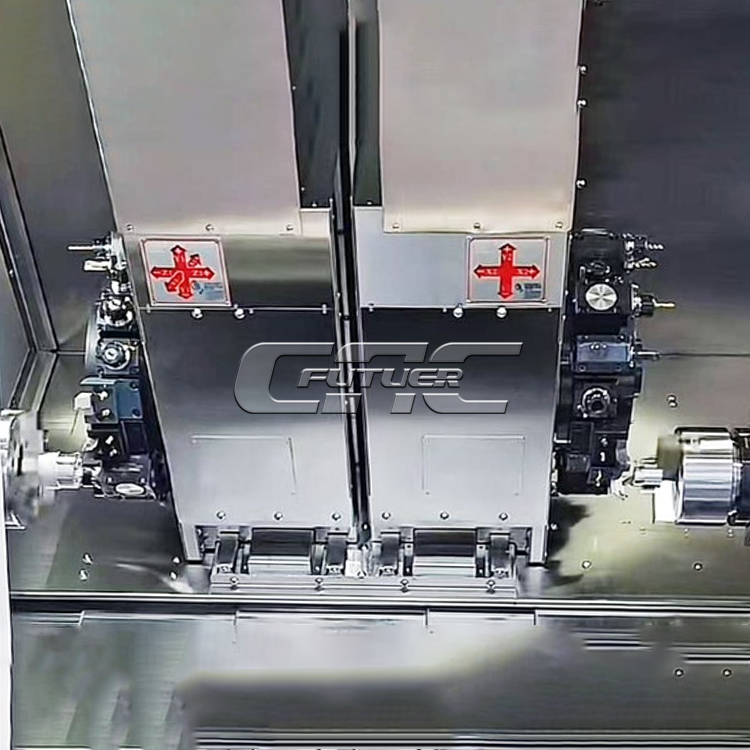

The equipment features a 35° slant-bed design with a fixed main spindle, and a sub-spindle that moves along the Z-axis, ensuring high concentricity and alignment accuracy during part transfer. It is equipped with two Y-axis BMT45 power turrets, providing strong process compatibility for complex workpieces and enabling turning, milling, drilling, and tapping operations. Each spindle’s machining is performed independently by its respective turret, reducing machining time by more than 40%. The machine supports both long-bar and short-blank processing and offers high adaptability for automation, with optional configurations such as long bar feeders, gantry robots, or articulated robotic loading/unloading systems.

Product Description

TECHNICAL SPECIFICATIONS

Maximum rotational diameter (mm)	Φ460mm
Maximum spindle speed (rpm)	4000RPM
Maximum rotational diameter (mm)	φ360mm
Maximum cutting diameter (mm)	φ400mm
Maximum cutting length (mm)	120mm
X1、X2/Z1、Z2 Axis travel (mm)	X1, X2: Diameter φ480mm/Z1 :250mm / Z2:250mm
Y1/Y2 axis travel	±50mm
Y. X/Z-axis rapid feed (m/min)	20/20mm
Taper of the nose ends of the main shaft and the secondary main shaft	A2-6 Type 46 spindle: A2-5, optional Type 52 spindle: A1-6
Diameter of through holes for the main shaft and auxiliary main shaft (mm)	φ62 Type 46 spindle: Φ56, optional Type 52 spindle: φ62
Diameter of the through hole of the pull rod (mm)	φ52 Type 46 spindle: Φ46, optional Type 52 spindle: φ52
Spindle servo power (KW)	Main shaft :7.5KW (servo motor), auxiliary shaft: 11kw(built-in motor), 17KW(disc motor)
Spindle parameters	Main shaft: Rated speed: 1500RPM, rated torque: 49NM; (Mechanical spindle) Auxiliary spindle: Rated speed: 3200RPM, rated torque: 35NM; (Built-in electric spindle) Rated speed :2000RPM, rated torque: 52NM; (Inner disc type motor spindle
Cooling pump power (W)	≥ 450W*2
X/ Z-axis positioning accuracy	0.005mm
X/ Z-axis repeat positioning accuracy	0.005mm
Machining accuracy (mm)	IT6(0.01mm)
Ellipticity (mm)	0.008mm
Flatness of the processed workpiece (mm)	0.01mm
Surface roughness of the machined workpiece (μm)	Ra1.25μm
Knife rest form	15-station power tool turret, with a tool holder center height of 80. It can be optionally equipped with a tool holder or power tool holder
Square tool cross-section (mm)	20*20mm
Diameter of the circular knife shank (mm)	Φ20 or customizable
Dimensions (L * W * H) (mm)	352017501700mm
Total weight of the machine tool (KG)	4500KG

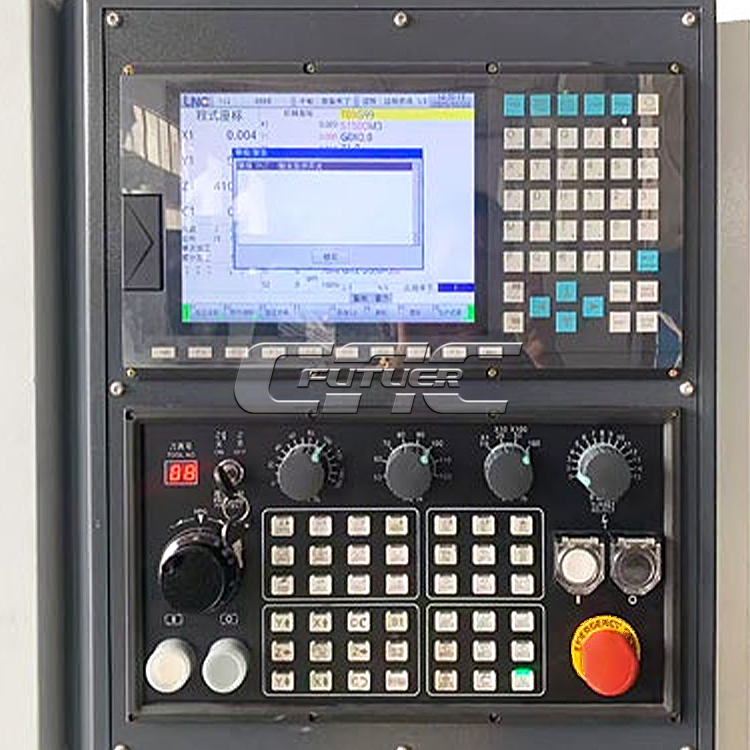

The equipment’s cast components are made of HT300 gray cast iron. C3-grade ball screws are from Taiwan HIWIN/PMI, and linear guides and roller sliders are also from Taiwan HIWIN/PMI. Bearings are supplied by Japan’s NACHI or NSK. The main spindle can be configured with a Taiwan Posa spindle or an equivalent domestic mechanical spindle, while the sub-spindle can be configured as a disk-type motor spindle or built-in electric spindle. Both the servo motors and the control system are from Taiwan SYNTEC, with the control system being the 22TB model.
