Medium Diameter Gantry Row Knife D12/D20 Series – 40% Higher Machining Efficiency, High-Precision Industrial CNC Solution

TECHNICAL SPECIFICATIONS

		D125	D205
Control system	System	FANUC/SYNTEC	FANUC/SYNTEC
Processing range	Fast movement speed	X-axis24m/min Other axes30m/min	X-axis24m/min Other axes30m/min
	Diameter of the bar stock held by the main and auxiliary spindle	φ2-φ12mm	φ3-φ20mm
	Maximum drilling diameter of the main and auxiliary spindle	φ10mm	φ10mm
	Maximum pitch diameter of the main and auxiliary spindle	M8	M8
	Maximum drilling diameter of the side-milling power head	φ10mm	φ10mm
	Maximum tapping diameter of the side-milling power head	M8	M8
Motorized spindle	Main and auxiliary spindle power	2.2KW/5.5KW	3.7KW/7.5KW
Motorized spindle	Maximum rotational speed of the and auxiliary spindle	10000r/min	10000r/min

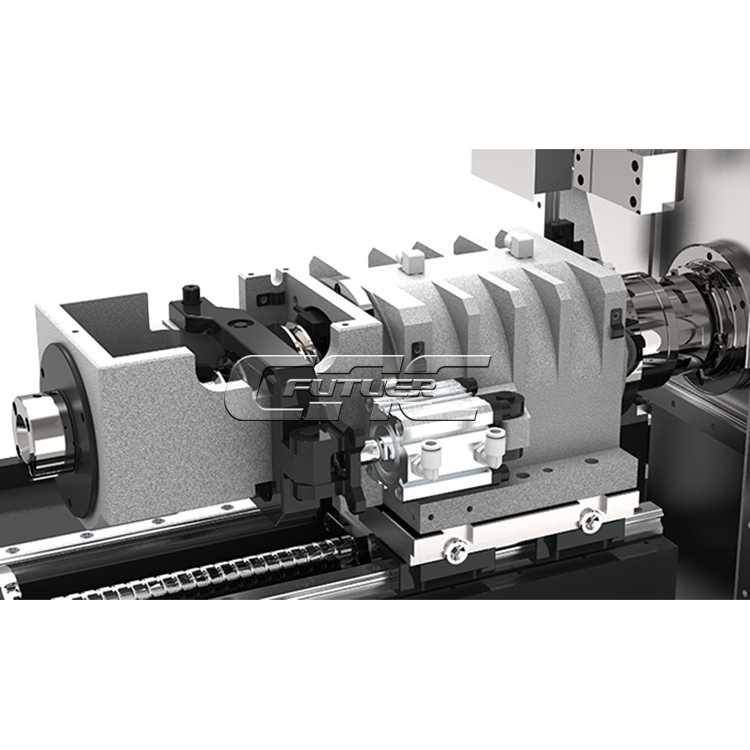

Fast headstock	Key-type movable guide sleeve stroke	125mm	125mm
Maximum movement amount	Without condom (optional)	290mm	290mm

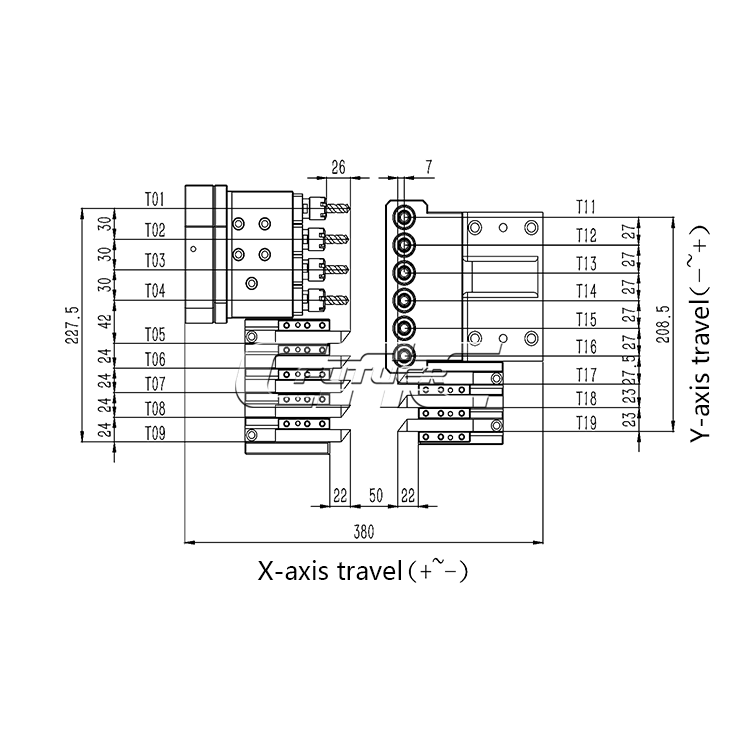

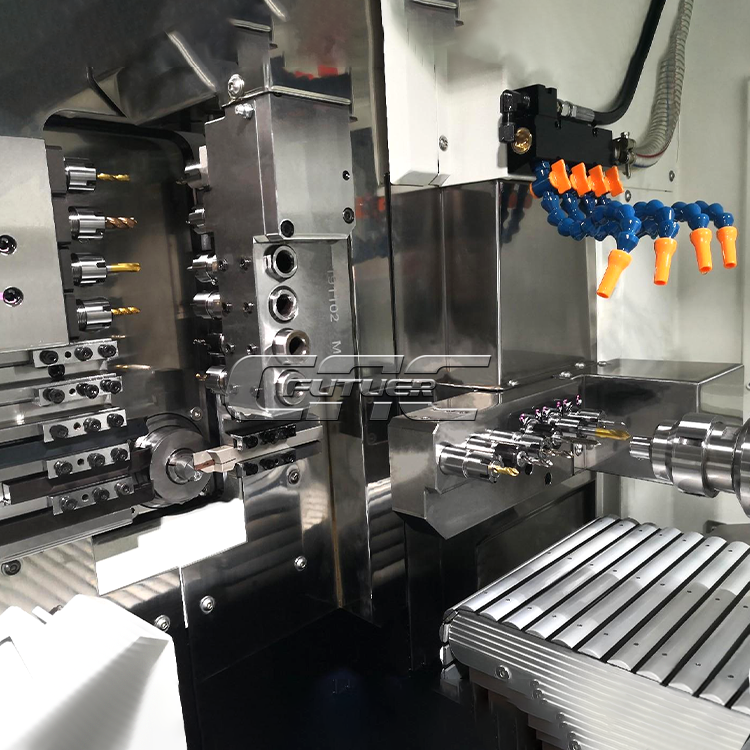

Cutter	Number of cutting tools	8 sets of 12*12mm	8 sets of 12*12mm

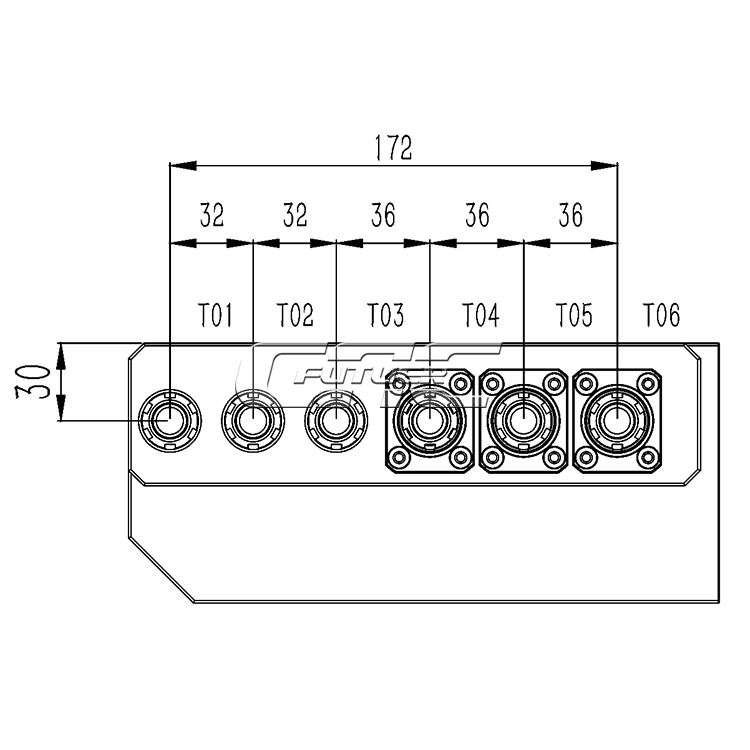

	Side-mounted power cutting tool	4 sets of ER16 power cutting tools	4 sets of ER16 power cutting tools
	Maximum rotational speed of the side-mounted power head	5500r/min	5500r/min
	Spindle end face tool	4 pieces of ER16 fixed cutting tools plus 2 pieces of ER16 power cutting tools	4 pieces of ER16 fixed cutting tools plus 2 pieces of ER16 power cutting tools
	Secondary spindle end face tool	3 pieces of ER16 fixed cutting tools plus 3 pieces of ER16 power cutting tools	3 pieces of ER16 fixed cutting tools plus 3 pieces of ER16 power cutting tools

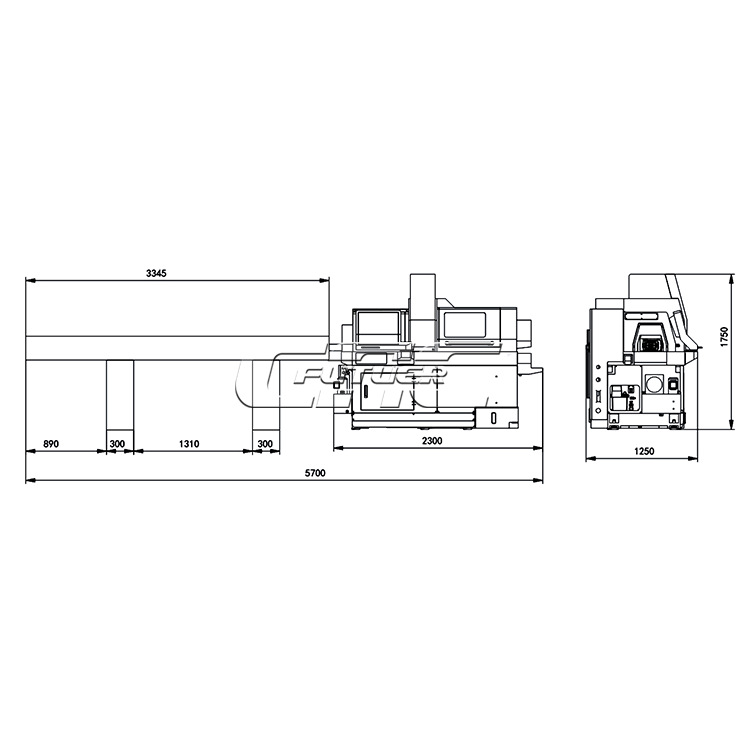

Machine overall dimension	Dimensions (length, width, height)	230012501750mm	230012501750mm
Machine tool weight	Weight	2400kg	2400KG

We independently developed high-power synchronous electric spindle with 12 spindles, FANUC 2.2kw, new generation 5.5kw or 20 spindles, FANUC 3.7kw / new generation 7.5kw. The power of the main spindle and the auxiliary spindle is the same. The response to start-up and speed adjustment is fast, and the efficiency is high, with excellent performance.

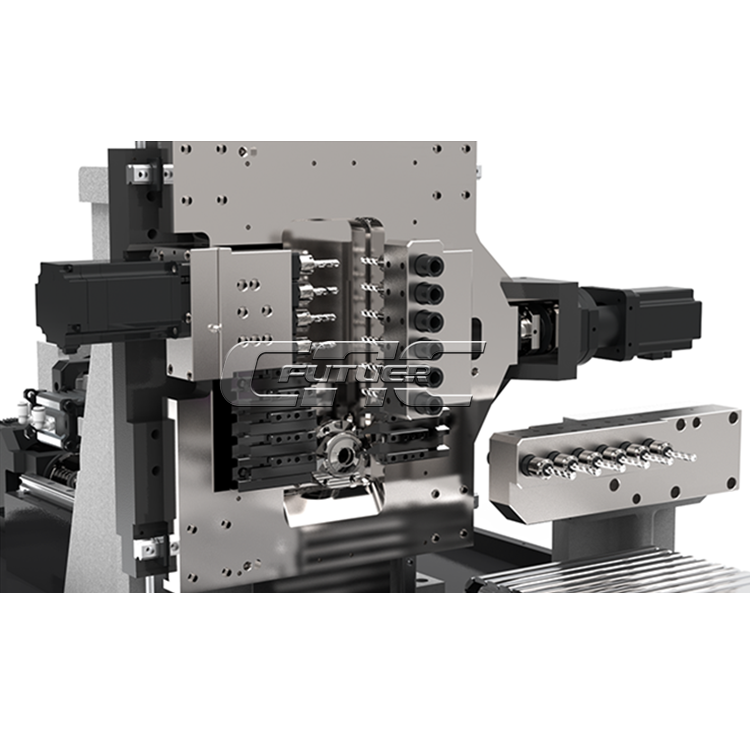

We independently developed power heads, with low noise, strong rigidity, high precision, representing the high level of the industry, comparable to Japanese and European brands.
The appearance is smooth, the workmanship is precise, the structure is rigorous, and it has the brand image of high-end in the industry.
Dual-channel operation, the main spindle direction processing is carried out simultaneously, and the auxiliary spindle also processes simultaneously.
5-axis powerful functions, ultra-efficient processing mode.
X, Y, Z axis motors with high-power 850W/750W large inertia servo motors.
The screw and nut are in a double-nut mode, with strong rigidity for cutting; the bearing is fixed in a way to maintain high precision.
The screw guide rail is 25mm, with a large pitch of 10mm, fast speed, and the moving speed of the worktable of the slide plate is 30m/min. The power heads S3, S4, and S5 are applied in all three directions conveniently.

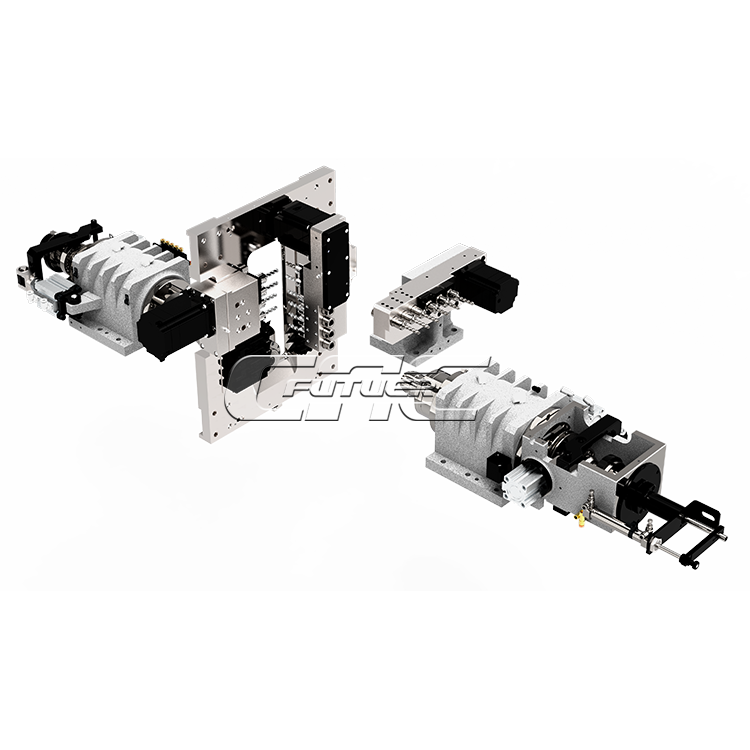

The body, motor frame, bearing seat, and auxiliary spindle slide plate of this machine tool all adopt a combined structure to ensure a tight mechanical structure and a beautiful appearance.

FUTUER GROUP

About Guangdong Futuer Machinery Co., Ltd.

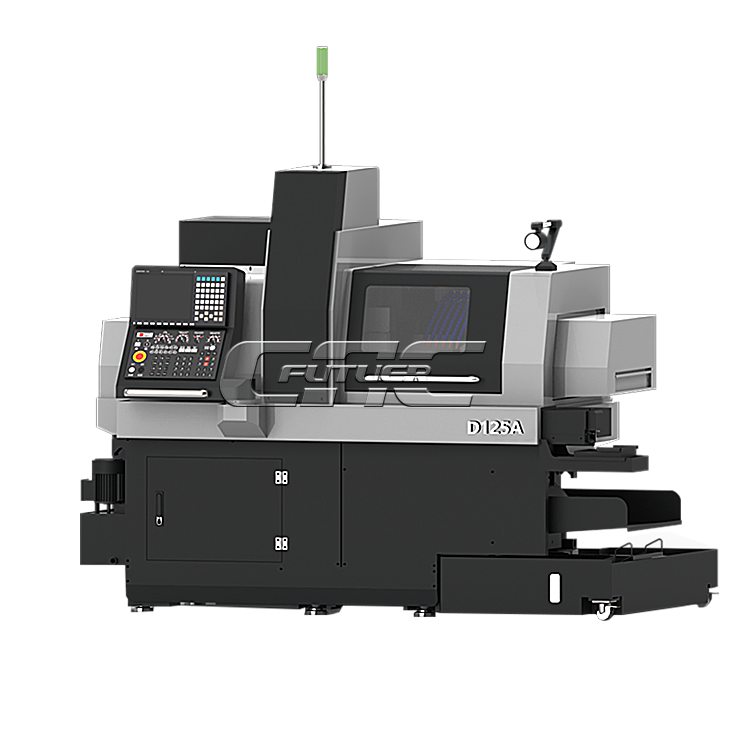

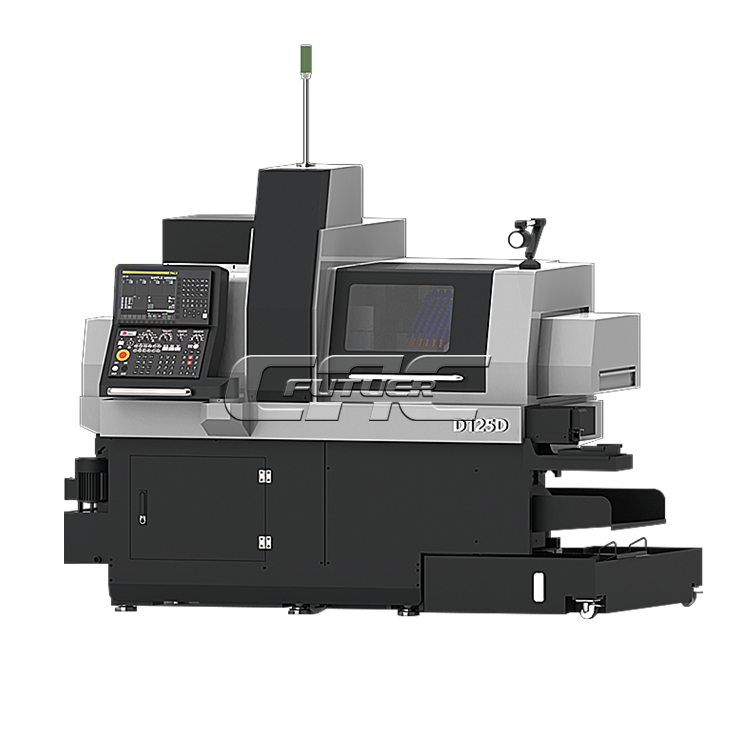

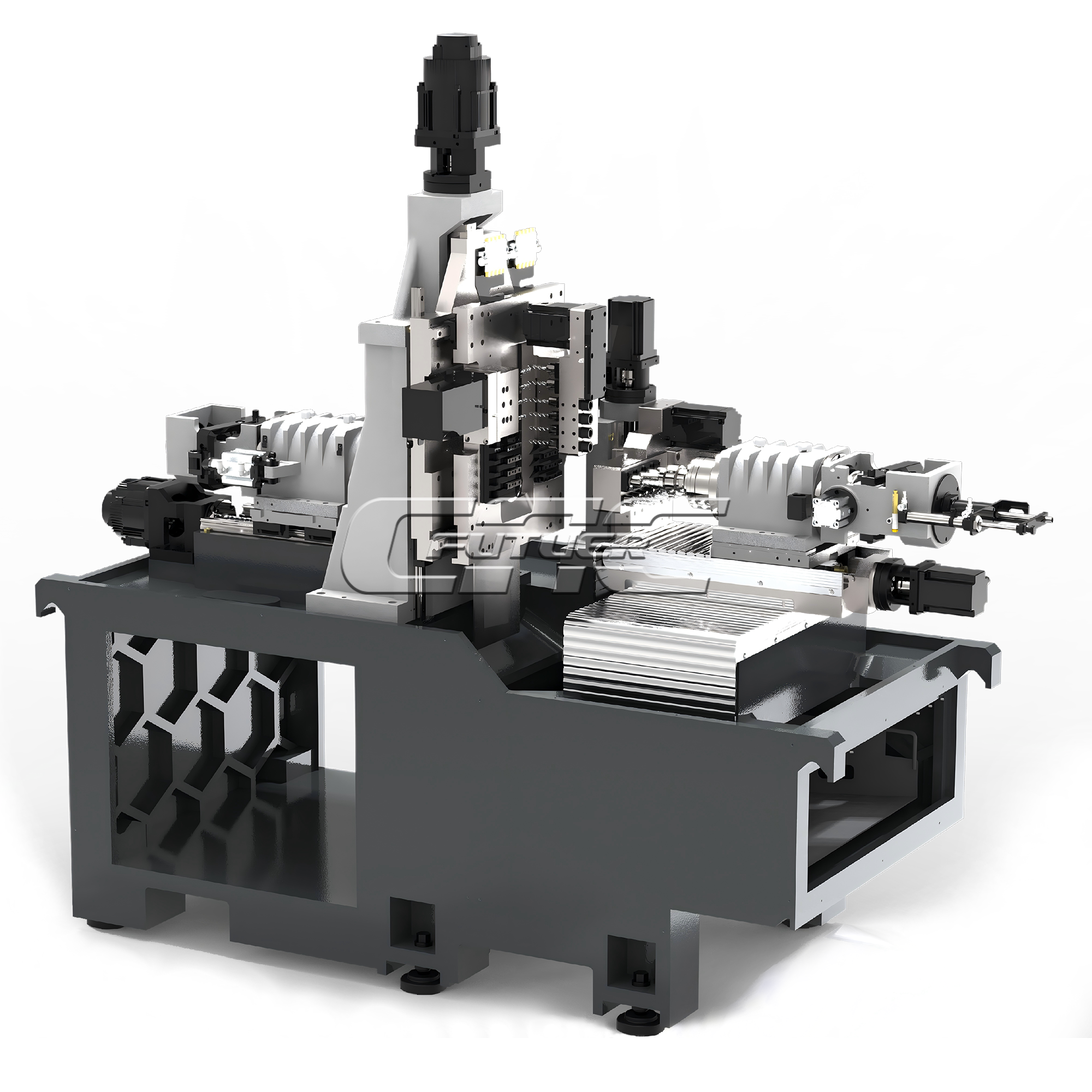

D125 D205 Electric spindle walking machine (gantry type)(Optional thermal compensation function / Optional automatic chip breaking function)
