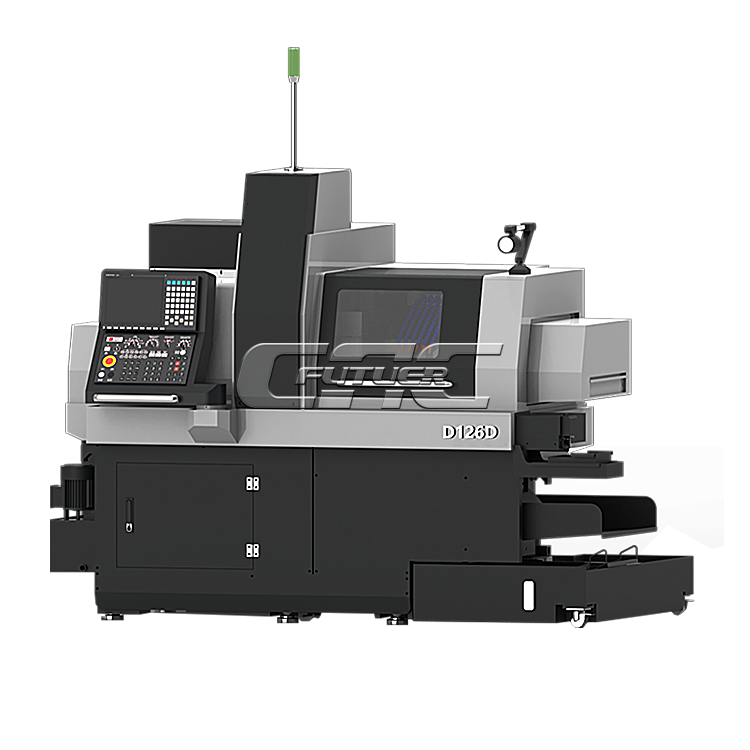

TECHNICAL SPECIFICATIONS

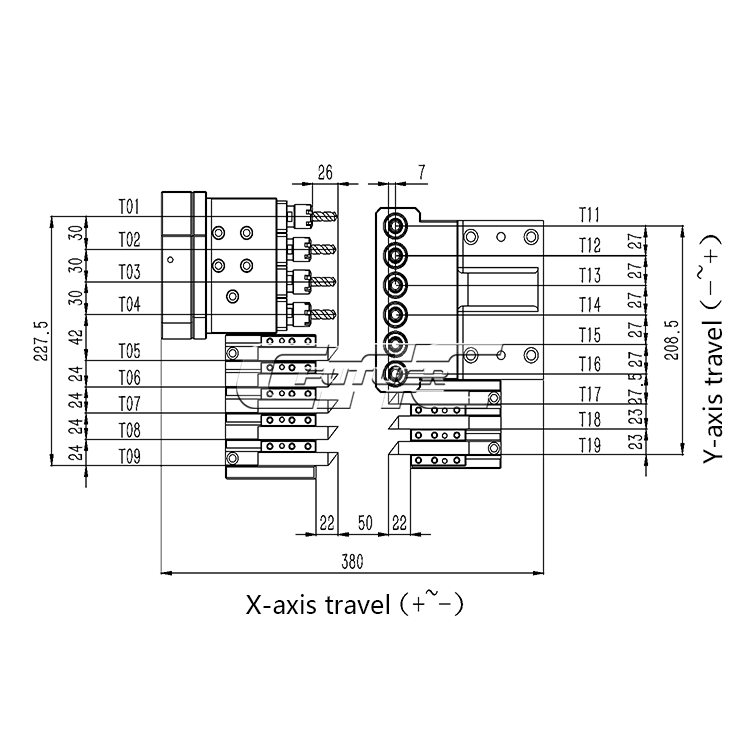

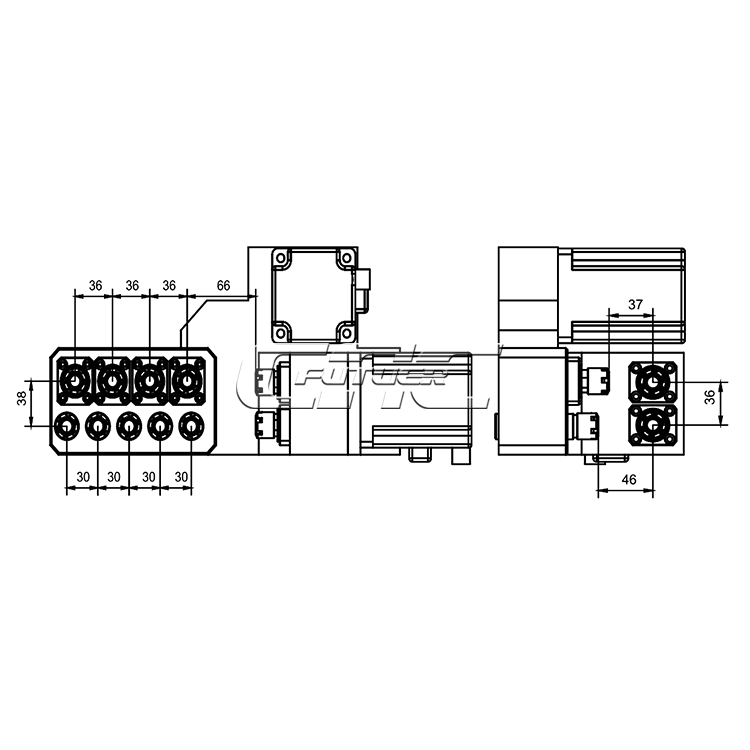

| D126 | D206 | ||
| Control system | System | FANUC/SYNTEC | FANUC/SYNTEC |
| Processing range | Fast movement speed | X-axis24m/min Other axes30m/min | X-axis24m/min Other axes30m/min |
| Diameter of the bar stock held by the main and auxiliary spindle | φ2-φ12mm | φ3-φ20mm | |
| Maximum drilling diameter of the main and auxiliary spindle | φ10mm | φ10mm | |
| Maximum pitch diameter of the main and auxiliary spindle | M8 | M8 | |
| Maximum drilling diameter of the side-milling power head | φ10mm | φ10mm | |
| Maximum tapping diameter of the side-milling power head | M8 | M8 | |
| Motorized spindle | Main and auxiliary spindle power | 2.2KW/5.5KW | 3.7KW/7.5KW |
| Maximum rotational speed of the main and auxiliary spindle | 10000r/min | 10000r/min | |
| Fast headstock | Key-type movable guide sleeve stroke | 125mm | 125mm |
| Maximum movement amount | Without condom (optional) | 290mm | 290mm |
| Cutter | Number of cutting tools | 8 sets of 12*12mm | 8 sets of 12*12mm |
| Side-mounted power cutting tool | 4 sets of ER16 power cutting tools | 4 sets of ER16 power cutting tools | |
| Maximum rotational speed of the side-mounted power head | 5500r/min | 5500r/min | |
| Spindle end face tool | 4 pieces of ER16 fixed cutting tools plus 2 pieces of ER16 power cutting tools | 4 pieces of ER16 fixed cutting tools plus 2 pieces of ER16 power cutting tools | |
| Secondary spindle end face tool | 4 pieces of ER16 fixed cutting tools plus 5 pieces of ER16 power cutting tools | 4 pieces of ER16 fixed cutting tools plus 5 pieces of ER16 power cutting tools | |
| Side cutting tools on the secondary shaft | 2 sets of ER16 power cutting tools | 2 sets of ER16 power cutting tools | |

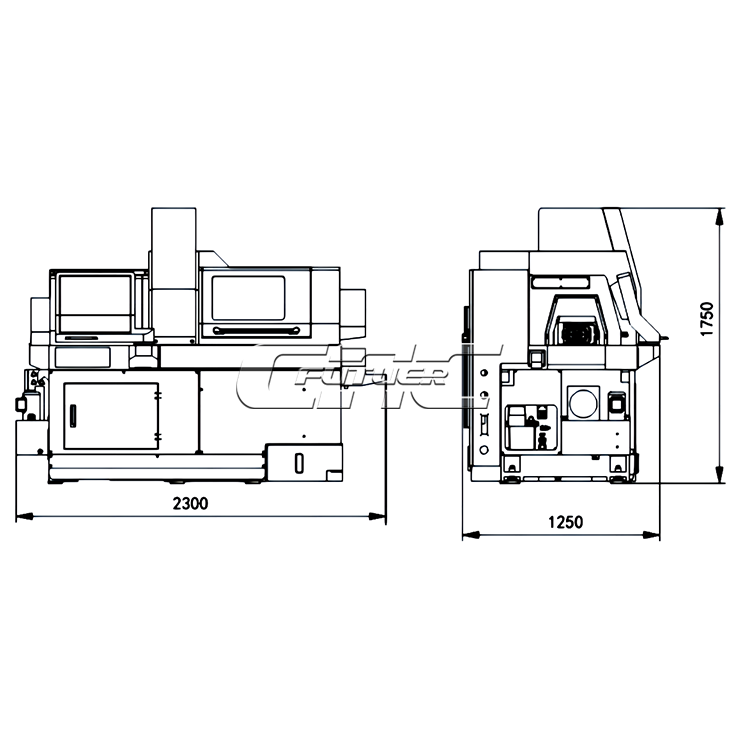

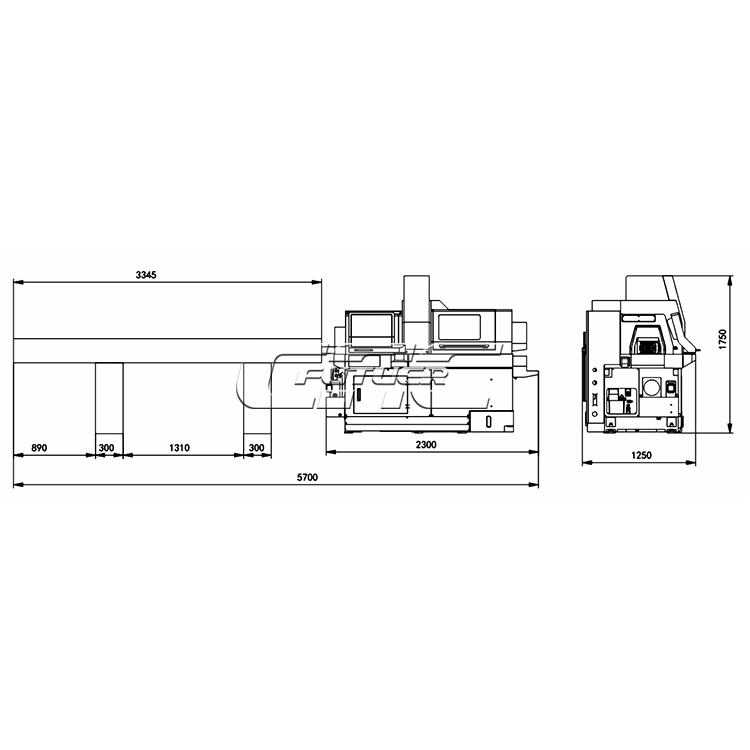

| Machine overall dimension | Dimensions (length, width, height) | 2300*1250*1750mm | 2000*1100*1700mm |
| Machine tool weight | Weight | 2600kg | 2600KG |
- We independently developed high-power synchronous electric spindle with 12 spindles, FANUC 2.2kw, new generation 5.5kw or 20 spindles, FANUC 3.7kw / new generation 7.5kw. The power of the main spindle and the auxiliary spindle is the same. The response to start-up and speed adjustment is fast, and the efficiency is high, with excellent performance.
- We independently developed power heads, with low noise, strong rigidity, high precision, representing the high level of the industry, comparable to Japanese and European brands.
- The appearance is smooth, the workmanship is precise, the structure is rigorous, and it has the brand image of high-end in the industry.
- Dual-channel operation, the main spindle direction processing is carried out simultaneously, and the auxiliary spindle also processes simultaneously.
- 5-axis powerful functions, ultra-efficient processing mode.
- X, Y, Z axis motors with high-power 850W/750W large inertia servo motors.
- The screw and nut are in a double-nut mode, with strong rigidity for cutting; the bearing is fixed in a way to maintain high precision.
- The screw guide rail is 25mm, with a large pitch of 10mm, fast speed, and the moving speed of the worktable of the slide plate is 30m/min. The power heads S3, S4, and S5 are applied in all three directions conveniently.
- The body, motor frame, bearing seat, and auxiliary spindle slide plate of this machine tool all adopt a combined structure to ensure a tight mechanical structure and a beautiful appearance.
