STC Bilateral processing CNC machine tool (35° integral casting)

STC Bilateral processing CNC machine tool (35° integral casting)

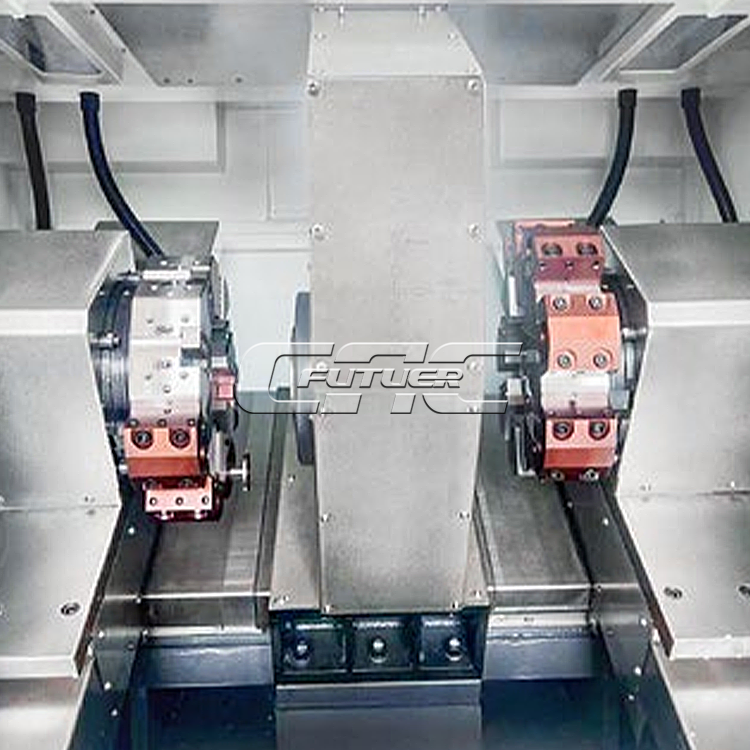

The equipment features a 35° slant-bed structure, allowing flexible configuration of tool mounting options (such as gang-type tools or turret systems) based on specific needs, offering high adaptability. The centrally positioned spindle simplifies the machining process for long shaft-type workpieces, enabling both ends to be machined simultaneously—completing the entire process in the time normally required to machine just one end. This design enhances production efficiency, reduces manufacturing costs,and minimizes floor space requirements. By completing both ends in a single setup, it eliminates secondary clamping errors and ensures a higher yield rate.

Product Description

TECHNICAL SPECIFICATIONS

Maximum rotation diameter of the machine (mm)	Customized (provided as required)
Spindle motor power (KW)	5.5KW/7.5KW
Maximum spindle speed (rpm)	2500r/min
Diameter of the main shaft through hole (mm)	Customize according to actual requirements
Limit travel of X1 and X2 axes	1100mm
Limit travel of Z1 and Z2 axes	310mm
Connection methods of X1, X2/Z1, Z2 axes	Direct connection type
Specifications of X1, X2/Z1, Z2 shaft lead screws	3210
Specifications of X1, X2/Z1, Z2 axis rail	35-roller type extended slider, Z-axis 340 roller extended slider
Maximum rapid shift speeds (m/min) of X1, X2/Z1, and Z2 axes	28m/min
Repeat positioning accuracy (mm) of X1, X2/Z1, Z2 machine tools	0.005mm
Number of knife positions	Single-row knives have 6 positions and two-row knives have 12 positions
Center height of the tool rest (mm)	65mm (customizable)
Overall dimensions (L * W *H) (mm)	230016002000mm
Machine tool weight	3600KG

All load-bearing transmission components of the equipment—such as the integrated base, saddle, and spindle box—are made of HT250 cast iron. C3-grade ball screws, linear guides, and ball sliders are from Taiwan HIWIN/PMI. Bearings are supplied by Japan’s NACHI or NSK. The centrally positioned spindle features hydraulic clamping and uses NSK bearings.Servo motors are from VEICHI or DEALOUR, and the control system is Taiwan LNC 5850D.
