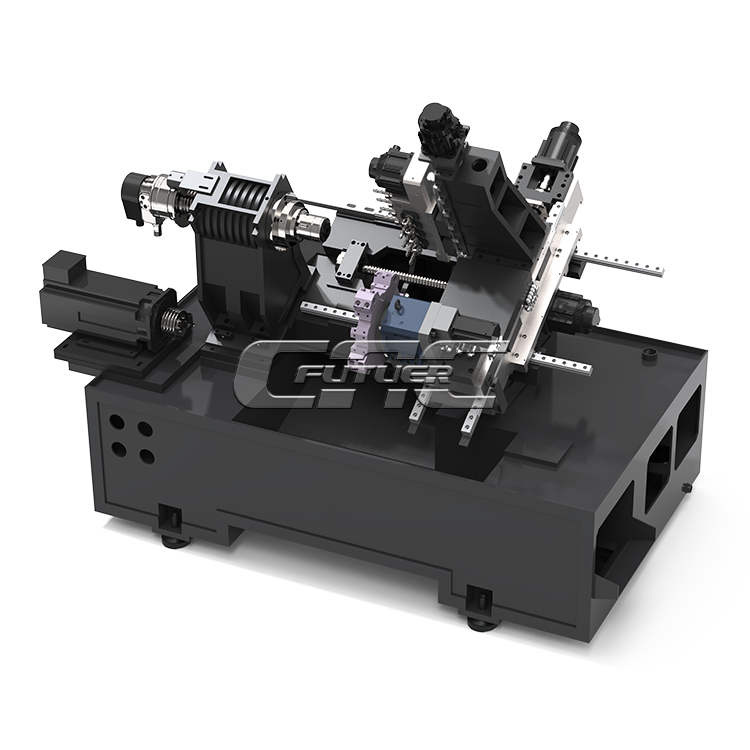

The Y-axis column is reinforced, featuring a high-stiffness column structure; the power head has its rigidity optimized and double support for the upper overrunning wheel is added; the main shaft motor is further increased in power to 7.5KW; the indexing accuracy adopts dual magnetic ring closed-loop feedback, resulting in higher precision.
MACHINE DETAILS
Equipment details and standard size related parameters
| numerical control system | SYNTEC/22TB | |
| Working ability |
The size of the through hole of the main shaft | Φ56mm |
| Maximum diameter of bar stock | Φ45mm | |
| maximum machining diameter | Φ250mm | |
| maximum machining length | 100mm | |
| Maximum travel along the X-axis | 700mm | |
| Maximum travel along the z-axis | 330mm | |
| Maximum travel along the Y-axis | 230mm | |
| The rapid movement speed along the X/Z/Y axes | 30/30/18mm | |
| The maximum drilling capacity of the power bit | Φ14 mm Compression sleeve: ER25 | |
| The maximum tapping capacity of the power bit | M8 Compression sleeve: ER25 | |
| Maximum cutting depth | The maximum single-sided cutting depth of 45# steel is 3mm. | |
| Rail form | linear guideway | |
| True roundness of the spindle | 0.003mm | |
| repeated positioning accuracy | 0.005mm | |
| Center spacing of the power head | 56mm | |
| Spindle motor power | 11kw | |
| speed of mainshaft | 100-4500r/min | |
electrical machinery |
X-axis servo motor | 2.4kw |
| Z-axis servo motor | 2.4kw | |
| Y-axis servo motor | 2.4kw | |
| Power head servo motor | 1.7kw | |
| cutter | Number of weapons equipped in the Tower Defense game | 8 knives |
| driving tool | Side 4, End 4 | |
| Other |
Total power of the machine tool | 19kw |
| The weight of the machine tool | 4500kg | |

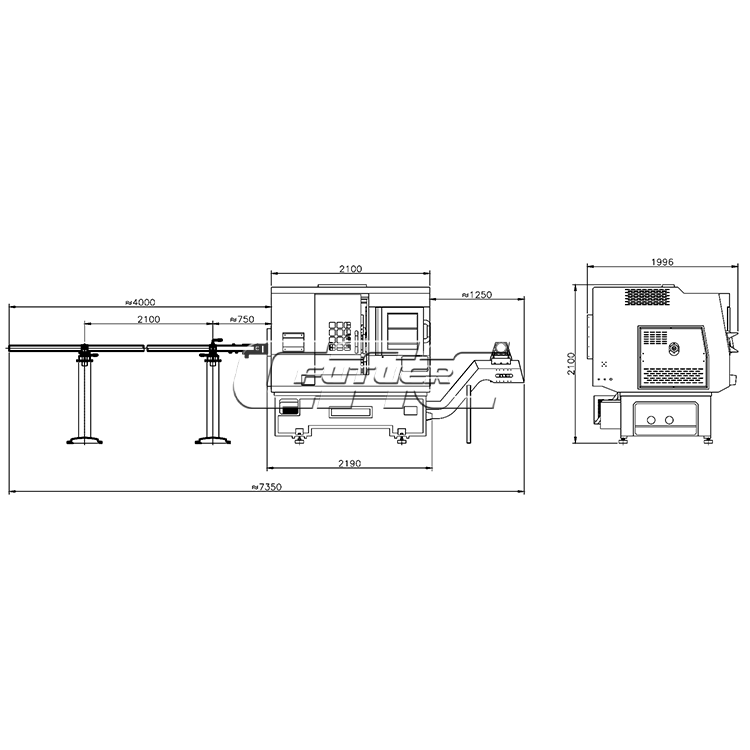

| Machine tool dimensions | 2190*1996*2100mm | |
